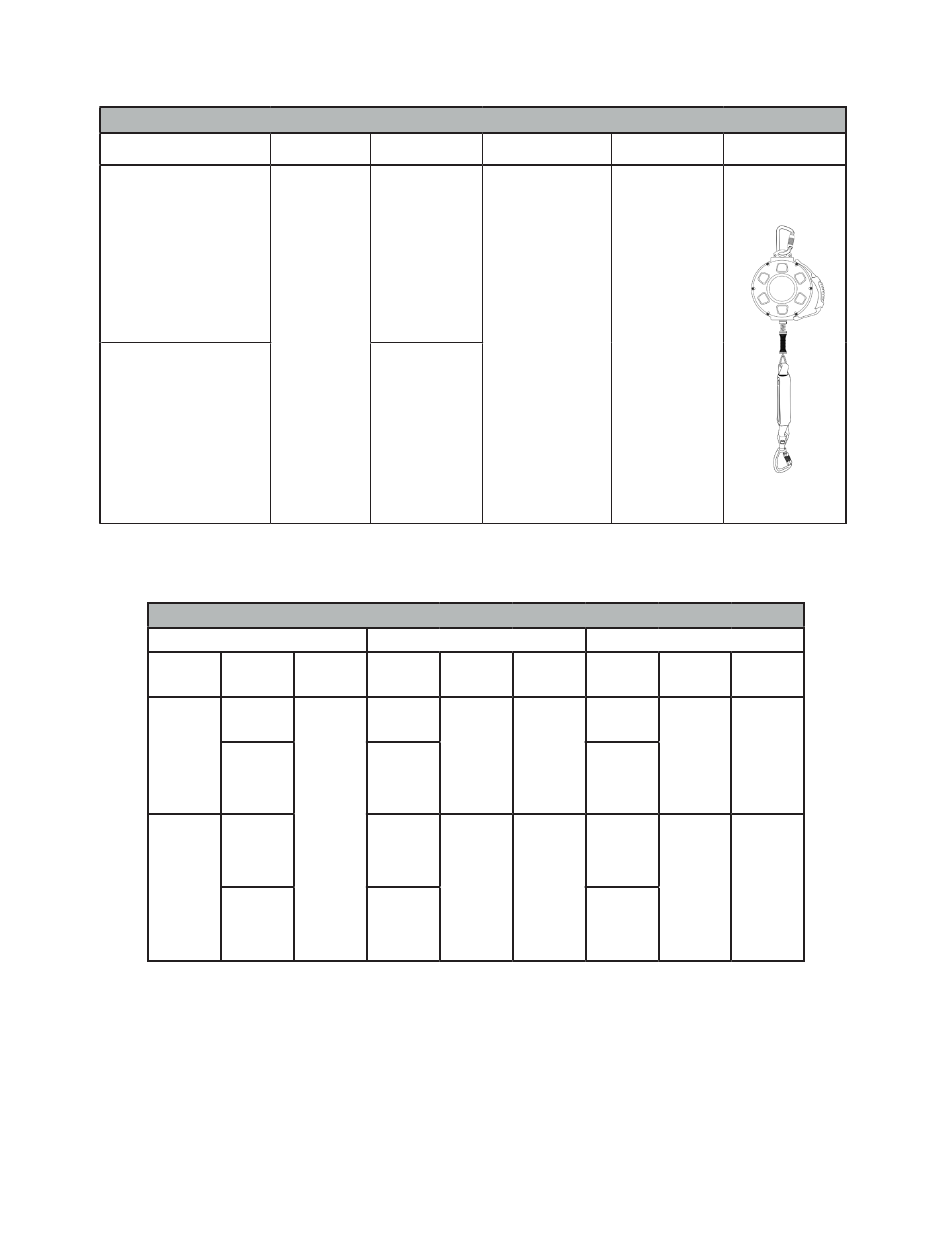

Falltech SRL-LE User Instruction Manual page 23

Model #
C727630LE
C727650LE
Part #s and Conditions
Part #
C727630LE
30' Leading
Edge SRL-LE
C727650LE
50' Leading
Edge SRL-LE
CMSRD08 Rev A
Table 1A: Specifications for DuraTech 6' Web SRD
Lifeline Material Working Length
9.1 m (30 ft)
7/32" Diameter
7X19
Galvanized
Steel Cable
15.1 kN (3400 lbs.)
Min
15.2 m (50 ft)
Table 1B: FallTech Leading Edge SRL-LE Performance Attributes
Anchorage Arrest
SRD Class
Condition Distance
Overhead
800 mm
Non-Leading
(31.5 in)
Edge
Leading Edge
Condition,
2,600 mm
Foot-Level
(102 in)
with 5'
Setback
SRL-LE
Overhead
900 mm
Non-Leading
(35.5 in)
Edge
Leading Edge
Condition,
2,600 mm
Foot-Level
(102 in)
with 5'
Setback
APPENDIX A
Materials and
Specifications
Anchorage Carabiner:
22.2 kN (5,000 lbs) Min
16 kN (3,600 lbs) Gate
Strength
Leg-End Connector:
22.2 kN (5,000 lbs) Min
16 kN (3,600 lbs) Gate
Strength
Typical FallTech Performance
Average Maximum
Arrest Force Arrest Force
2.6 kN 8kN
(589 lbs) (1,800 lbs)
2.6 kN 7 kN
(589 lbs) (1,575 lbs)
022420
Capacity and
Standards
Single User
Capacity:
54 kg -159 kg
(120 lbs to 350 lbs)
(combined weight of
user, tools, clothing,
etc.)
CSA
Z259.2.2-17
CSA Performance Requirements
Maximum Average
Maximum
Arrest Arrest Force
Arrest Force
Distance *Conditioned
1200 mm
(47 in)
6 kN 8 kN
(1350 lbf) (1,800 lbf)
The test mass
should not hit
the ground
1200 mm
(47 in)
6 kN 8 kN
(1350 lbf) (1,800 lbf)
The test mass
should not hit
the ground
23
