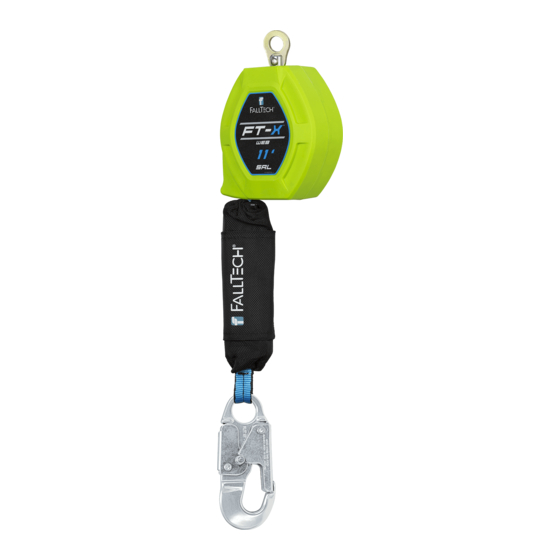

11' FT-X Web Class 1 SRL-P
User Instruction Manual
This manual is intended to meet the Manufacturer's Instructions as required by the American National Standards
Institute (ANSI) Z359 and should be used as part of an employee training program as required by the Occupational
Safety and Health Administration (OSHA).
MSRD26 Rev B
1306 S. Alameda Street, Compton, CA 90221, USA Tel: 800-719-4619 Fax: 323-752-5613
102022
Advertisement
Table of Contents
Related Manuals for Falltech 11' FT-X Web Class 1 SRL-P
Summary of Contents for Falltech 11' FT-X Web Class 1 SRL-P
- Page 1 11' FT-X Web Class 1 SRL-P User Instruction Manual This manual is intended to meet the Manufacturer’s Instructions as required by the American National Standards Institute (ANSI) Z359 and should be used as part of an employee training program as required by the Occupational Safety and Health Administration (OSHA).
-
Page 2: Table Of Contents
Table of Contents Warnings and Important Information .................. Description .......................... Application ........................... System Requirements ......................Installation and Use ......................Maintenance, Service, and Storage ..................Inspection ..........................Labels ........................... Definitions ........................... Appendix A ......................... For purposes of this manual, the 11' FT-X Web Class 1 Self-retracting Lifeline in all iterations may be referred to collectively as the 11' FT-X Web , the FT-X Web, the SRL-P, the FT-X, the SRL, the equipment, the device, the product, or the unit. -
Page 3: Warnings And Important Information
Do not alter or intentionally misuse this equipment. • Consult FallTech when using this equipment in combination with components or subsystems other than those described in this manual. • Do not connect rebar hooks, large carabiners, or large snap hooks to the FBH dorsal D-rings as this may cause a roll-out condition and/or unintentional disengagement. -
Page 4: Description
This product is a personal SRL and may be used with the SRL housing side connected to the anchor or connected to the full body harness. Contact FallTech for more information or product selection questions. This manual includes one Appendix containing figures and tables specific to the FT-X Web SRL-P discussed in this manual. -
Page 5: Application
When dynamically tested in accordance with requirements of ANSI Z359.14-2021, FallTech Class 1 and Class 2 Self-Retracting Devices have an AAF of 1,350 lbs (6 KN) or less and an AD of less than 42” (1.1 m). -
Page 6: System Requirements
Contact FallTech if you have any questions about compatibility. Connectors must be compatible with the anchorage or other system components. -
Page 7: Installation And Use
WARNING Do not alter or intentionally misuse this equipment. Consult FallTech when using this equipment in combination with components or subsys- tems other than those described in this manual. All components or subsystems used with the SRD discussed in this manual must be in compliance with ANSI Z359 and/or OSHA. - Page 8 Torn stitching, deployment, expansion, or lengthening of the white internal energy absorber webbing is an indication that a fall event has occurred and the unit must be removed from service. Remove from service any unit that fails inspection, including inspection of the fall arrest impact indicator. If you have any questions, contact FallTech. MSRD26 Rev B...
- Page 9 Ensure all users are trained in rescue procedures. If a fall event occurs, remove it from service, and store it separately. Remove from service any unit that has been subjected to fall arrest forces or that exhibits damage consistent with such forces. For questions, contact FallTech. 5.4.4 Using the SRD: Do not use the SRD if inspection shows damage or any malfunction.
- Page 10 Calculating Minimum Required Fall Clearance 5.5.1 FT-X Web in Overhead, Non-Leading Edge Anchorage Application [130 to 310 lbs. (59 to 141 kg) user] The FT-X may be used may be used as a standard SRD in an overhead condition, in which the SRD is installed anywhere in the allowable attachment area, which ranges from directly above the user to level with the FBH D-ring, as shown in Figure 5.
- Page 11 Calculating Minimum Required Fall Clearance 5.5.3 FT-X Web in Overhead, Non-Leading Edge Anchorage Application [311 to 420 lbs. (141 to 191 kg) user] The FT-X may be used may be used as a standard SRD in an overhead condition, in which the SRD is installed anywhere in the allowable attachment area, which ranges from directly above the user to level with the FBH D-ring, as shown in Figure 7.
-
Page 12: Maintenance, Service, And Storage
Maintenance, Service, and Storage Maintenance: Ensure the SRL is kept free of excess paint, grease, dirt or other contaminants as this may cause the lifeline or retracting mechanism to malfunction. Ensure no debris enters the housing. Clean the exterior of the unit as required with a detergent/water solution. - Page 13 Inspection Document: Record inspection results on the Inspection Record provided below or on a similar document. Inspection Record Model #:_________________________ Serial #:_________________________ Date of Manufacture:_________________________ INSPECTION INSPECTOR COMMENTS PASS/FAIL CORRECTIVE ACTION NEEDED APPROVED BY DATE MSRD26 Rev B 102022...
-
Page 14: Labels
Labels The labels must be present and legible. MSRD26 Rev B 102022... -
Page 15: Definitions
Definitions The following are general definitions of fall protection terms as defined by ANSI Z359.0-2012. Anchorage -A secure connecting point or a terminating component of a fall protection system or rescue system capable of safely supporting the impact forces applied by a fall protection system or anchorage subsystem. Anchorage Connector - A component or subsystem that functions as an interface between the anchorage and a fall protection, work positioning, rope access or rescue system for the purpose of coupling the system to the anchorage. - Page 16 Horizontal Lifeline – A component of a horizontal lifeline subsystem, consisting of a flexible line with connectors or other coupling means at both ends for securing it horizontally between two anchorages or anchorage connectors. Horizontal Lifeline Subsystem – An assembly, including the necessary connectors, comprised of a horizontal lifeline component and, optionally, of: a) An energy absorbing component or, b) A lifeline tensioner component, or both.
- Page 17 APPENDIX A Table 1A: Specifications for FT-X Web SRL-P Working Length Materials and Capacity and Model # Lifeline Material Images and Weight Specifications Standards Single User Capacity Housing: for ANSI Compliance: Nylon 130 to 310 lbs. (59 to 141 kg) 84711SA1 Anchorage Carabiner: Single User Capacity...
