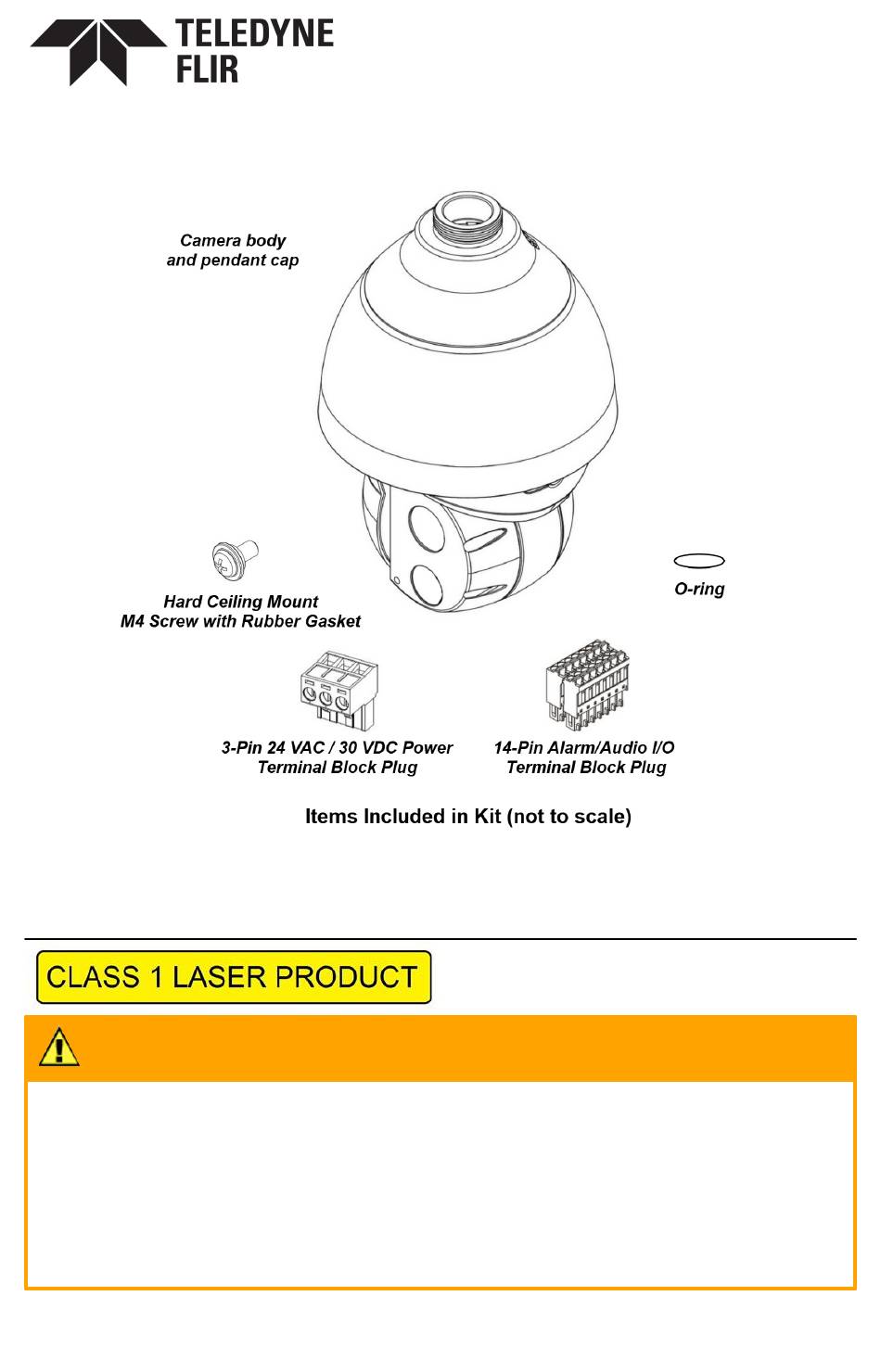

1 Check Contents
Make sure all of the items above are included in the camera kit.
Caution
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Attention
L'utilisation des commandes ou reglages ou l'execution des procedures autres
que celles specifiees dans les presents exigences peuvent etre la cause d'une
exposition a un rayonnement dangereux.
427-0200-01-10 Rev 120
This document does not contain any export-controlled information.
Saros™ PTZ
DM-Series Camera
Quick Install Guide
This camera is a Class 1 Laser Product
that complies with IEC 60825-1:2014.
June 2021
Advertisement
Table of Contents
Related Manuals for Teledyne Flir Saros DM Series
Summary of Contents for Teledyne Flir Saros DM Series
- Page 1 Saros™ PTZ DM-Series Camera Quick Install Guide 1 Check Contents Make sure all of the items above are included in the camera kit. This camera is a Class 1 Laser Product that complies with IEC 60825-1:2014. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
-
Page 2: Install The Camera
2 Prepare to Install the Camera 2.1 Install FLIR Discovery Network Assistant Download the FLIR Discovery Network Assistant (DNA) tool to a computer on the same VLAN to which you will connect the camera, and then unzip the file. The DNA tool does not require a license to use and is a free download from www.teledyneflir.com >... -
Page 3: Connect The Camera
PoE 60W 4 pair forced mode. For more information about compatible injectors and recommended switches, contact Teledyne FLIR support. Verify that the UPOE connector LEDs are steady green and flashing yellow. If using a 24 VAC or 30 VDC power supply, connect it to... -
Page 4: Configure The Camera
14-Pin Alarm/Audio I/O Definition Definition Terminal Block Audio-Out Not used Ground (Audio I/O) Alarm-In 4 Alarm-Out A1 Alarm-In 3 Alarm-Out A2 Alarm-In 2 Alarm-Out B1 Alarm-In 1 Alarm-Out B2 Ground (Alarm I/O) Not used Audio-In This product contains a battery that is soldered to the PCB. There is a risk of explosion if the battery is replaced by an incorrect type. - Page 5 The Discover List appears, showing compatible devices on the VLAN and their current IP addresses. In the DNA Discover List, verify that the camera's status is Online. If this is the first time you are configuring the camera or if it is the first time after resetting the camera to its factory defaults, DNA automatically authenticates the camera with the default password for the camera's admin user (admin).
- Page 6 ® bar. The camera's web page supports Google Chrome and other popular web browsers. b. On the login screen, type admin for the user name and the password for the admin user (default: admin). c. When logging in to the camera for the first time or for the first time after performing a factory default, specify a new password for the admin user.
- Page 7 e. You can select Static and manually specify the camera's Hostname, IP address, Netmask, and Gateway. You can also specify the DNS Mode, Name Servers, MTU (maximum transmission unit), and Ethernet Speed. f. Click Save. If you have made any changes on the Network page, the camera reboots.
-
Page 8: Camera Dimensions
5 Camera Dimensions Following are the Saros PTZ DM-Series camera’s dimensions. Front View Side View 6 Register the Product Register your Product with Teledyne FLIR at https://customer.flir.com. For warranty information, see https://www.teledyneflir.com/support- center/warranty/security/flir-security-product-warranties/. 7 Contact Information Teledyne FLIR LLC Corporate Headquarters 6769 Hollister Avenue 27700 SW Parkway Ave.
