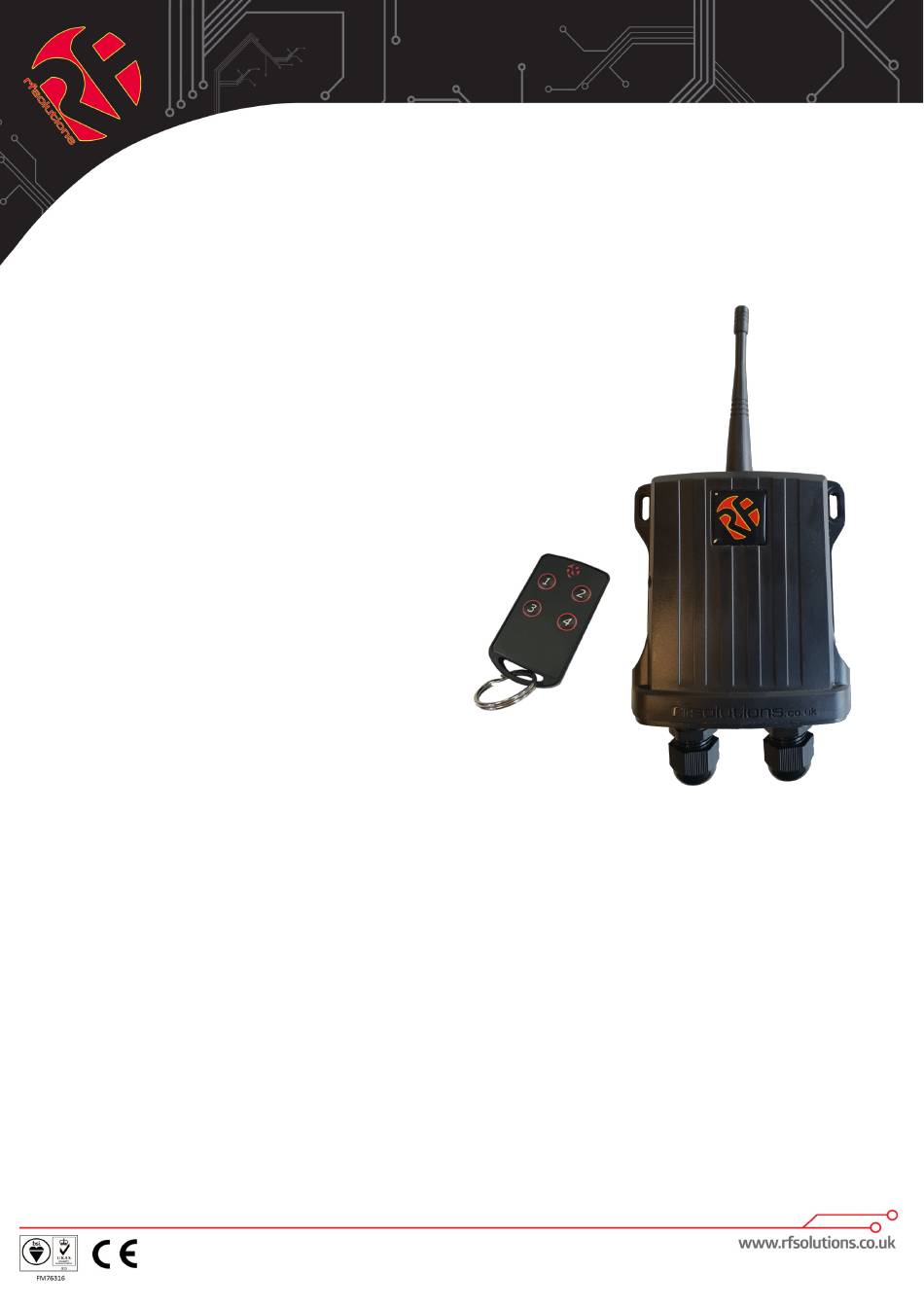

Features
Up to 200m Range
•
868MHz FM Technology
•
1 – 4 Channels each 1000W
•
Waterproof Receiver (IP68)
•
High Security RF Protocol
•
2 / 4 Changeover Relays Contacts
•
Rated 5A @ 230Vac
12-30Vac/dc, 110V or 230Vac
•
versions Available
Outputs Momentary or Latching
•
Any Switch Map to Any Relay
•
Systems supplied 'ready to Go'
•
Applications
General Purpose Remote Switching
•
Electric Gates
•
Roller Shutter Doors
•
Garden Lighting, Sports Grounds
•
Description

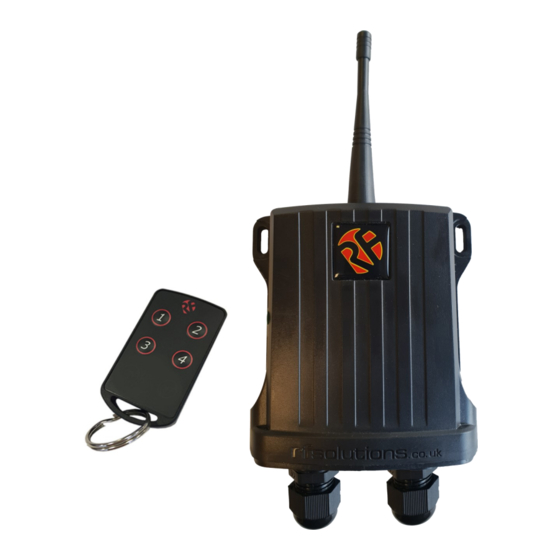

A versatile general purpose Remote Control System for many different applications.
Housed in a rugged IP68 weatherproof enclosure, The new HORNETPRO system is ide-
ally suited to any remote switch requirement. With upto 4 changeover Relay switch
outputs each output can be controlled from any switch on any transmitter. Additional
transmitters may be added to the system using the same 'easy-learn' process with-
out opening the enclosure.
Installation is by screw terminals to the power supply and the output relay contacts.
The output relays are activated by the button press on the transmitter encoder.
Remote Control System
DS HORNETPRO-2
HORNET PRO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS HORNETPRO Series
Summary of Contents for RF SOLUTIONS HORNETPRO Series
- Page 1 HORNET PRO Remote Control System Features Up to 200m Range • 868MHz FM Technology • 1 – 4 Channels each 1000W • Waterproof Receiver (IP68) • High Security RF Protocol • 2 / 4 Changeover Relays Contacts • Rated 5A @ 230Vac 12-30Vac/dc, 110V or 230Vac •...
- Page 2 HORNET PRO Systems Part Numbers Part Number Description Power Supply HORNETPRO-8S1 1 channel System HORNETPRO-8S2 2 channel System 12-30Vac/dc HORNETPRO-8S3 3 channel System HORNETPRO-8S4 4 channel System Part Number Description Power Supply HORNETPRO-8S1M 1 channel System 230Vac HORNETPRO-8S2M 2 channel System Additional Transmitters Part Number Description...
-
Page 3: Relay Outputs
HORNET PRO Relay Outputs The receiver provides 4 changeover relay switches each capable of switching up to 1.2KW (5A @ 230V). Each relay is independent and separately controlled, and can therefore be used to switch most voltages either ac or dc. Each output relay provides an isolated switch. -
Page 4: Advanced Operation
HORNET PRO Advanced Operation Configuring receivers The link pins LK1 and LK2 set the action of the relays sec Mom = Relay will operate for = Relay will operate for as long as transmitter switch operated Latch = Relay will toggle ON/OFF on each transmitter button press FlipFlop = Relays 1 &... - Page 5 HORNET PRO Advanced operation - Pairing a transmitter button with a magnet With this system, you can pair together any individual transmitter switch with any receiver relay switch. Without opening either enclosure: Briefly (less than 1 second) place a magnet next to the receiver in the position shown and then remove it.
-
Page 6: Technical Specifications
HORNET PRO Technical specifications Transmitters: FOBBER Transmitter Enclosure Rating: Standard IP68 Battery Type: CR2032 (supplied) Battery Life: 2 years @ approx. 50 1/2second presses p/day Dimensions: 90 x 54 x 27 mm Changing the Battery: Remove the 2 enclosure screws. replace battery, taking care of contacts and the battery polarity Receiver Unit Enclosure Rating:... -
Page 7: Mechanical Dimensions
Specifies certain limits for hazardous substances. ber: WEE/JB0104WV. WEEE Directive 2002/96/EC Waste electrical & electronic equipment. This product must be disposed of through a licensed WEEE collection point. RF Solutions Ltd., fulfills its WEEE obligations by membership of an approved compliance scheme.
