TradeQuip 2051T Owner's Manual

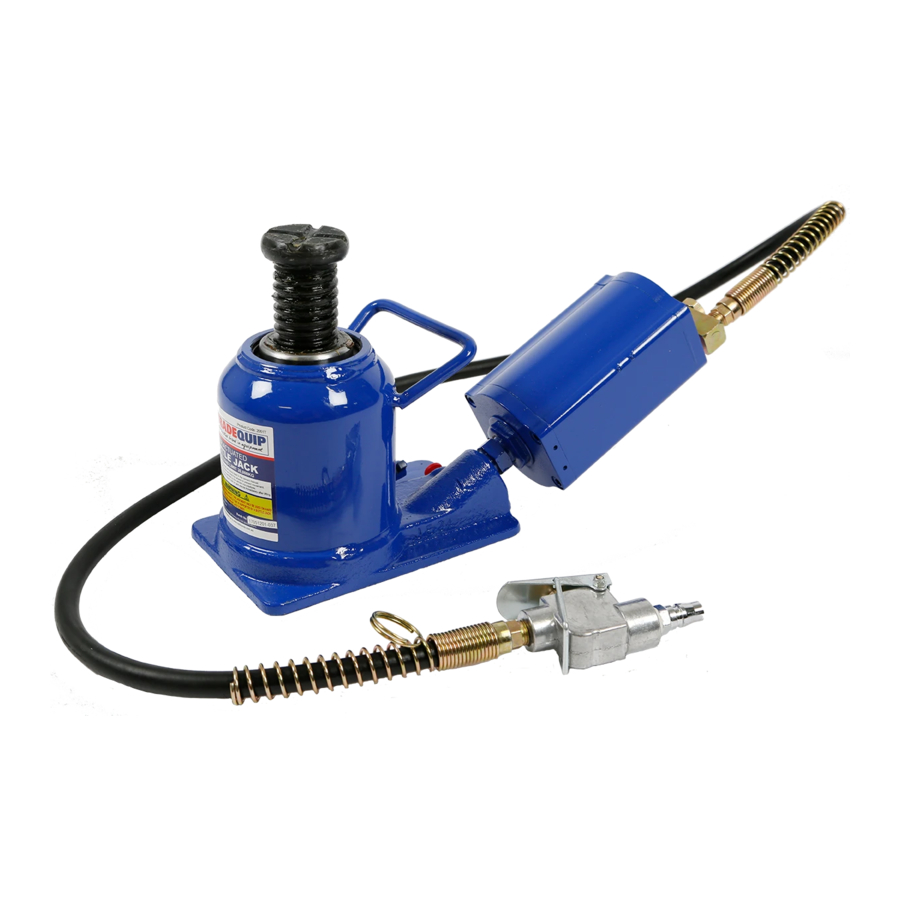

Air actuated bottle jack
Hide thumbs Also See for 2051T:

Advertisement

Table of Contents

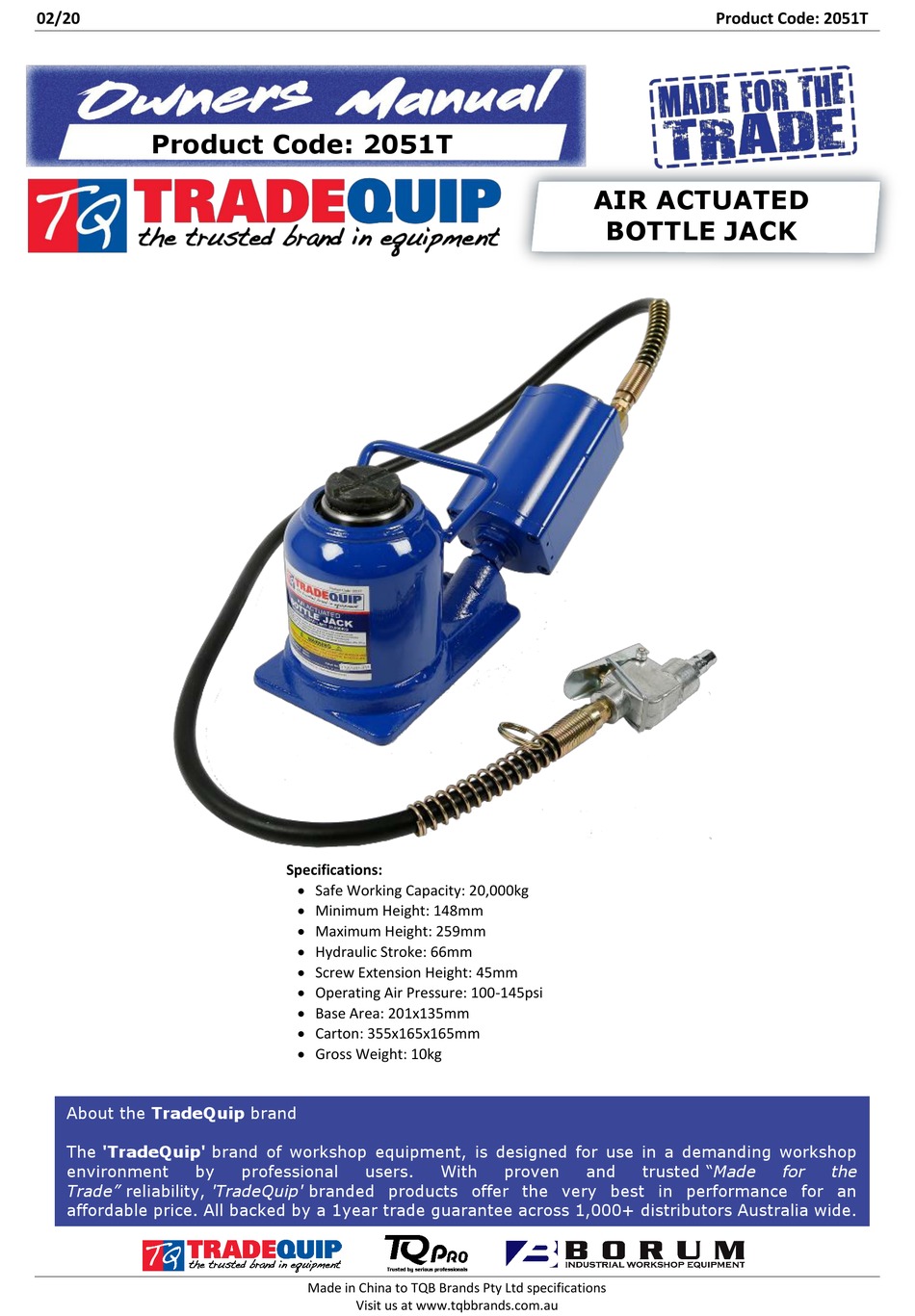

02/20
Product Code: 2051T
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop
environment
by
Trade" reliability, 'TradeQuip' branded products offer the very best in performance for an
affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
Specifications:
 Safe Working Capacity: 20,000kg
 Minimum Height: 148mm
 Maximum Height: 259mm
 Hydraulic Stroke: 66mm
 Screw Extension Height: 45mm
 Operating Air Pressure: 100-145psi
 Base Area: 201x135mm
 Carton: 355x165x165mm
 Gross Weight: 10kg
professional
users.
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
AIR ACTUATED
BOTTLE JACK
With
proven
and
Product Code: 2051T
trusted "Made
for
the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2051T and is the answer not in the manual?

Questions and answers

Related Manuals for TradeQuip 2051T

Summary of Contents for TradeQuip 2051T

  • Page 1  Screw Extension Height: 45mm  Operating Air Pressure: 100-145psi  Base Area: 201x135mm  Carton: 355x165x165mm  Gross Weight: 10kg About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users. With proven trusted “Made...

  • Page 2: Table Of Contents

    Keep this manual in a convenient and safe place for future reference. Whilst every effort has been made to ensure accuracy of information contained in this manual, the TradeQuip policy of continuous improvement determines the right to make modifications without prior warning.
  • Page 3 For your safety, do not modify or alter this Bottle Jack.  When servicing, use only TradeQuip identical replacement parts. Use of any other parts will void the warranty.  Use the right product for the job. There are certain applications for which the Bottle Jack was designed. Do not modify the Bottle Jack and do not use the Bottle Jack for a purpose for which it was not intended.

  • Page 4: Assembly, Operation & Preventative Maintenance

    ASSEMBLY, OPERATION & PREVENTATIVE MAINTENANCE 1. FEATURES The TradeQuip 2051T Air Actuated Hydraulic Bottle Jack is designed to operate either manually or pneumatically for lifting and lowering, but not sustaining load. The manual function allows for normal operation anywhere, even without an air supply.
  • Page 5 Product Code: 2051T 4. MAINTENANCE If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load.

  • Page 6: Parts List

    Product Code: 2051T PARTS LIST Part # Description Part # Description Snap Ring 1-26 Bushing 1-27 Butterfly Spring O-Ring 1-28 Screw Ram Assembly 1-29 Base Cover Piston Ring 1-30 Air Motor Housing Washer 1-31 Steel Ball O-Ring 1-32 Ball Retainer...

  • Page 7: Troubleshooting

    WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
