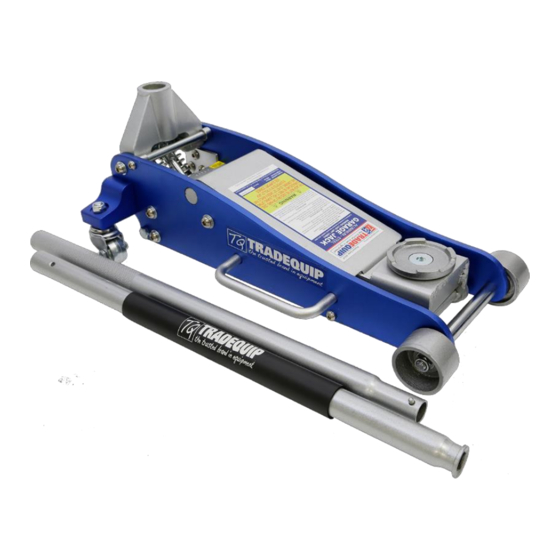

2,000kg aluminium steel floor jack
Hide thumbs

Advertisement

Quick Links

Mar-18
Product Code: 2701T
OWNER'S MANUAL
PRODUCT CODE: 2701T
2,000kg ALUMINIUM STEEL FLOOR JACK
Safe Working
Min Height
Max. Height
Net Weight
Gross
Package Size
Capacity (kg)
(mm)
(mm)
(kg)
Weight (kg)
(cm)
2,000
100
460
26.4
28.2
71x25x18
Made in China to TQB Brands Pty Ltd Specifications
Visit us at www.tqbbrands.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2701T and is the answer not in the manual?

Questions and answers

Related Manuals for TradeQuip 2701T

Summary of Contents for TradeQuip 2701T

  • Page 1 Mar-18 Product Code: 2701T OWNER’S MANUAL PRODUCT CODE: 2701T 2,000kg ALUMINIUM STEEL FLOOR JACK Safe Working Min Height Max. Height Net Weight Gross Package Size Capacity (kg) (mm) (mm) (kg) Weight (kg) (cm) 2,000 26.4 28.2 71x25x18 Made in China to TQB Brands Pty Ltd Specifications...

  • Page 2: Warning Information

    Keep this manual in a convenient and safe place for future reference. Whilst every effort has been made to ensure accuracy of information contained in this manual, the TradeQuip policy of continuous improvement determines the right to make modifications without prior warning.

  • Page 3: Table Of Contents

    Product Code: 2701T CONTENT WARNING INFORMATION ......................2 CONTENT ............................3 SAFETY INSTRUCTIONS .........................4 ASSEMBLY, OPERATION & PREVENTATIVE MAINTENANCE ............5 TROUBLESHOOTING ........................8 PARTS LIST ............................9 PARTS LIST DIAGRAM .........................10 WARRANTY ..........................11 Made in China to TQB Brands Pty Ltd Specifications Page 3...

  • Page 4: Safety Instructions

    Product Code: 2701T SAFETY INSTRUCTIONS WARNING FAILURE TO READ THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE & PERSONAL INJURY   Support load by approved jack stands Only lift areas of the vehicle designated by after lifting the vehicle manufacturer.

  • Page 5: Assembly, Operation & Preventative Maintenance

    ASSEMBLY, OPERATION & PREVENTATIVE MAINTENANCE 1. FEATURES The TradeQuip 2701T Low Profile 2,000kg Garage Jack with 'quick lift' facility has a new 'improved design' pump seal. The aluminium and steel fabrication delivers extra durability, while the twin piston pump unit produces effortless lifting. The low profile design makes this jack suitable for use on reduced clearance vehicles.
  • Page 6 Product Code: 2701T 4. OPERATION 4.1. Raising Vehicle Only attachments and/or adapters supplied by the manufacturer shall be used. Lift only on area of the vehicle as specified by the vehicle manufacturer.  Make sure the jack and vehicle are on a hard level surface.
  • Page 7 Product Code: 2701T 6. MAINTNANCE Monthly maintenance is recommended. Lubrication is critical to jacks as they support heavy loads. Any restriction due to dirt, rust, etc, can cause either slow movement or cause extremely rapid jerks damaging the internal components. The following steps are designed to keep the jack maintained and operational.

  • Page 8: Troubleshooting

    Product Code: 2701T 7. STORAGE When not in use this jack should always be stored in a dry location on a level surface with the lift arm and saddle in the fully lowered position. 8. SERVICE & REPAIR Any jack found damaged in any way, or found to be worn or operates abnormally should be removed from service until repaired by an authorised service agent.

  • Page 9: Parts List

    Product Code: 2701T PARTS LIST Item Description Item Description Upper Handle Spring Washer Handle Grip Bolt M8x20 Bolt M6x35 Front Wheel Shaft Lower Handle Connecting Shaft Bolt M0x25 Connecting Rod Internal Tooth Lock Washer Pin for Connecting Rod Flat Washer...

  • Page 10: Parts List Diagram

    Product Code: 2701T PARTS LIST DIAGRAM Made in China to TQB Brands Pty Ltd Specifications Page 10 Visit us at www.tqbbrands.com.au...

  • Page 11: Warranty

    Product Code: 2701T WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
