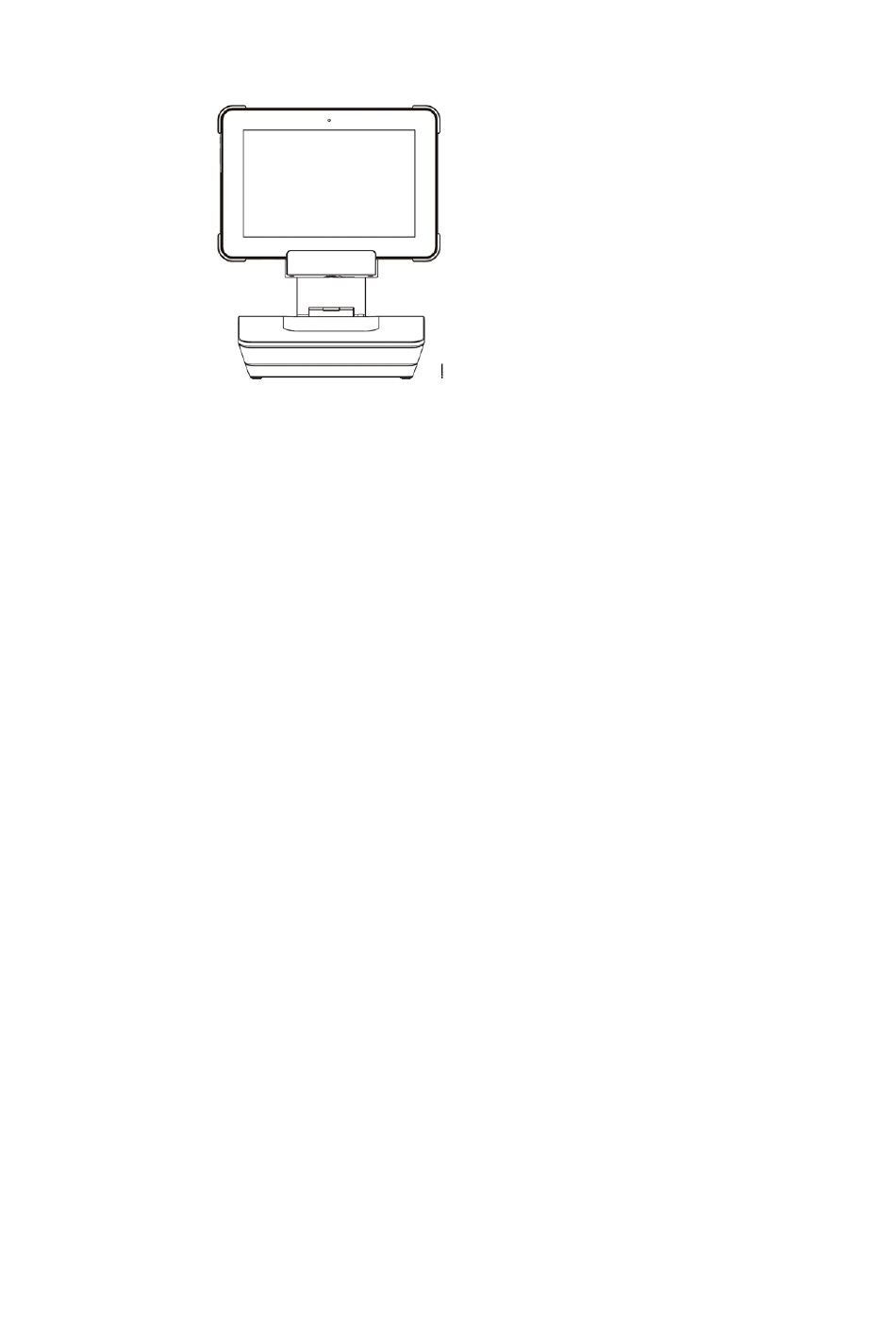

HM626R
Tablet POS
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM626R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hisense HM626R

Summary of Contents for Hisense HM626R

  • Page 1 HM626R Tablet POS User Guide...
  • Page 2 Warning This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Safety Precautions

    Safety Precautions Do not subject the device to severe impact or drop it from heights.  Do not use the device in extreme hot or cold, dusty or damp conditions. Do not expose it  to direct sunlight.  Avoid using the device near strong magnetic fields. Normal functioning of the product may be disturbed by ESD.
  • Page 4 There is danger of explosion if the battery is replaced incorrectly. Replace only with the  same or equivalent type. The battery (battery or batteries or battery pack) should not be exposed to  excessive heat such as sunlight, fire or the like. ...

  • Page 5: Features & Functionality

    Features & Functionality Tablet Front view Power indicator Indicates the battery-charge status. Front camera Capture a front view picture or record videos. Tounch screen Support with multi-touch .
  • Page 6 Tablet Top view Combo audio jack Connect to headsets. Built-in microphone Capture voice which can provide sound input to make calls using web-based apps, audio recording. Scanner 1 D barcode scanner or 2 D scanner（optional）. Tablet Left-side view AC power apdapter jack Connects to the AC power adapter.

  • Page 7: Micro Hdmi Port

    Tablet Bottom view Dock latch Attaches the table to the dock keeping the tablet fixed in place. Pogo pin connector Connects the tablet to the dock . Micro HDMI port Connects the tablet to a TV or an external display . Tablet Rear view...

  • Page 8: Charging Dock

    Magnetic card reader Swipes Magnetic cards. Non-contact card reader Contactless integrated circuit card (optional). Scan button Press the button to scan. Rear camera Captures pictures or videos. Ports cover Built-in ports. Speaker Provides audio output. Lock latch Lock the tablet on the smart dock. Notes: Stander models do not support RFID ，please refer to the actual product.
  • Page 9 Smart dock (optional) Attach the tablet to the dock Top view Rear view Smart dock Printer cover Cover when no printer. Keyhole Inserts a key to lock the tablet. Dock latch Attach the tablet to the dock keeping the tablet fixed in place Pogo pin connector Connects the tablet to the dock.

  • Page 10: Basic Connections

    Basic Connections Charging the tablet Notes:  If using the tablet for the first time, or after a long period of idle time, charge the battery for more than half an hour before turning it on, to ensure system stability. ...

  • Page 11: Removing A Micro Sd Card

    Open the port cover on the left. Pick up a micro SD card. Align the micro SD card so that the pins are pointed toward the card slot. Push the micro SD card into the card slot until it locks into place. Removing a micro SD card Touch the Tray button in the notification area in the lower-right corner of the screen.
  • Page 12 Connecting the Base Connector Place the base connector on an even plane like the top of a desk Connect the tablet to the base connector, aligning the Pogo pin jack and the positioning slots. To separate the tablet from the base connector, hold the base connector with one hand, then grab the top edge of the tablet and drag it apart.

  • Page 13: Basic Operation

    Basic Operation Turning On the Tablet Note: This device has been equipped with Android 7.1 system at the factory, so user need not perform Android setup again before using for the first time. Press and hold the Power button to turn on your tablet. The lock screen appears. Now the tablet is ready for use.

  • Page 14: Connecting To Bluetooth Devices

    Use finger slid down the touch screen to call the wifi menu Turning On/Off Wi-Fi Touch Wi-Fi on to view the available wireless networks. Touch Wi-Fi off to turn off Wi-Fi connection. Connecting to a wireless network. Select a wireless network ,clik the network name from the list. Input the password if necessary, then touch Connect to start connecting to the Internet.

  • Page 16: Locking The Screen Orientation

    Locking the screen orientation For optimal viewing experience, the screen orientation changes automatically to portrait or landscape format depending on how you hold the tablet. You can disable automatic screen rotation and lock the screen in portrait or landscape mode. Note: Some apps may not support automatic screen rotation and are designed to work only in one orientation.
  • Page 17 Gestures Your tablet has a multi-touch display. You can touch the screen to operate the tablet. Finger Gesture You can do Touch Select items on the screen, including options, entries, images, and icons. Tap gently on the display with your fingertip.
  • Page 18 Printer 1. Printer paper roll ① Thermal paper roll requirements: Thermal paper thickness: 0.055mm～0.085mm Paper roll width: 57.5±0.5mm Outer diameter of paper roll: ф50mm (maximum) Inner diameter of paper roll: ф10mm (minimum) ② Recommended thermal paper roll model: PD160R (Oji Paper) Note: ...
  • Page 19 ③Precautions for daily maintenance  Make sure that the power supply is turned off during routine maintenance of the printing unit;  Do not touch the surface of the print head with your hands and metal objects, and do not use tweezers or other tools to scratch the print head, printing rubber roller and sensor surface;...

  • Page 20: Maintenance

    Maintenance Cleaning Your Tablet Caution: Before you clean your tablet, disconnect all the cables and turn off the tablet. Clean your tablet with a soft cloth dampened with water. Do not use liquid or aerosol cleaners, which may contain flammable substances. Turn off your tablet.

  • Page 21: Major Specifications

    Major Specifications Note: The following specifications may contain technical inaccuracies or typographical errors. We reserve the right to improve and/ or change specifications at any time without prior notice. Item Descriptions RK3288 Memory 2GB standard , up to 4 GB Storage 16GB standard, up to 64 GB Camera...
