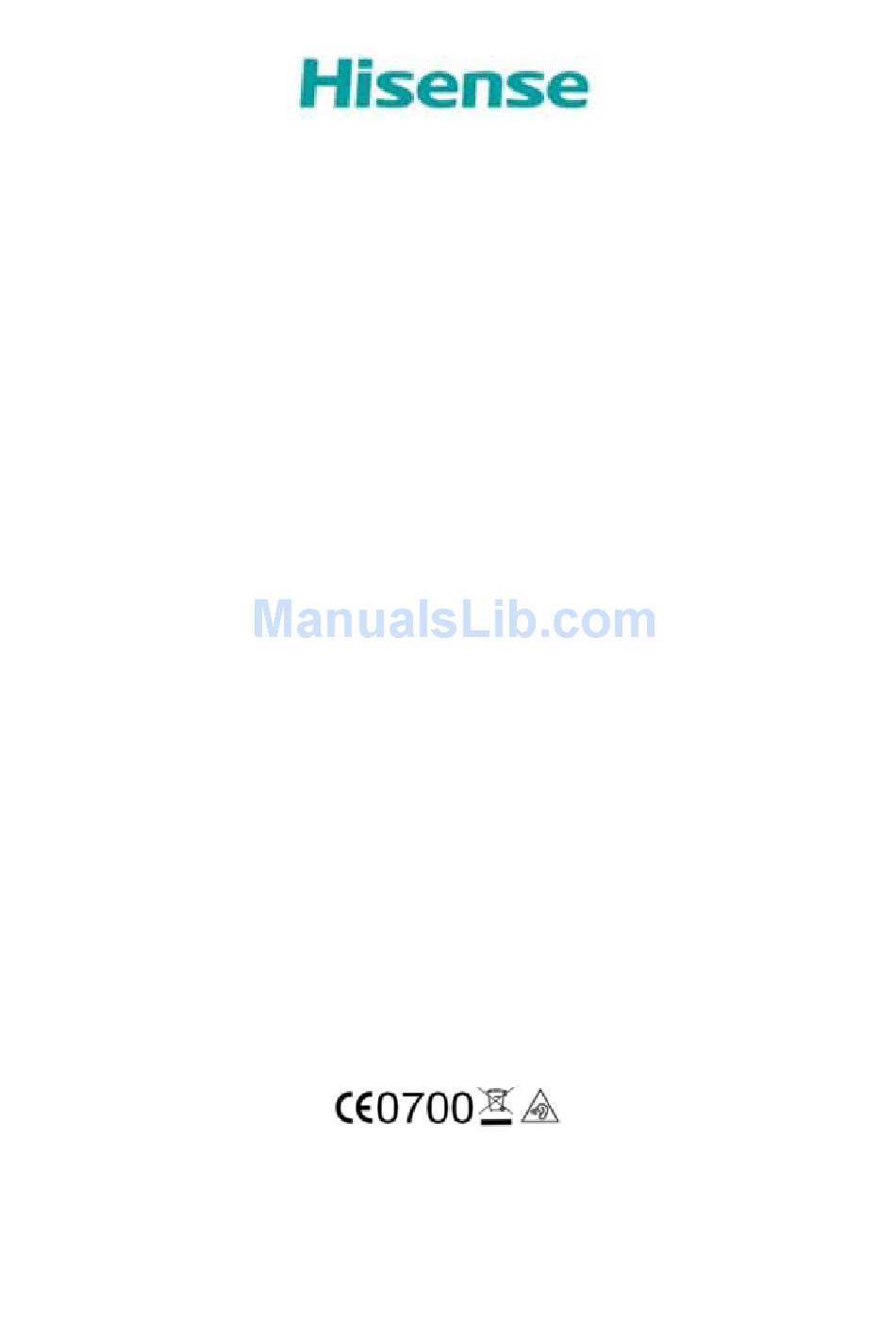

- Page 1 Tablet POS HM518 USER MANUAL Qingdao Hisense Intelligent Commercial System Co., Ltd. ...
- Page 2 Part 1. System Introduction 01. Safety Notices Before Installation or Use 02. System Introduction 03. General Specifications 04. Front View 05. Back View 06. Dimension 07. I/O View Part 2. System Installation 01. Checking the Location for Installation 02. Before Connecting Peripherals 03. Connecting DC power supply cable 04. Package Part 3. Product Layout 01. Motherboard layout 02. Motherboard Module&Function 03. Product layout 04. Product Module&Function ...
- Page 3 ☆ The product is a Level B one, it may cause radio interference in living environment. In such case, users may need to take practical & feasible measures against the interference. ☆ When the POS is not in use, you shall switch off power supply. ☆ Static may damage to the integrated circuit in the host machine. ☆ Please use original charger, Otherwise, It may result to danger. When you use a charger for charging, adapter shall be installed near the equipment and shall be easily accessible. Description Manufacturer Model Input Output Switching FSP GROUP AC 100~240V DC 12V/3.33A FSP040‐RHAN2 Power Adapter INC. Qingdao Hisense DC 12V/3.33A DC 12V/3.33A Docking Station Intelligent HM518 Commercial System Co.,Ltd ...
- Page 4 ☆ This product conforms with standard EN50332. Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss. ☆ The product shall only be connected to a USB interface of version USB2.0 ， this interface can provide maximum current of 500mA. ☆ Extreme Operating Temperature : 40 ℃ ☆ The device complies with RF specifications when the device used at 10mm form your body. ☆ Declaration Of Conformity Hereby, This Tablet POS is in compliance with the essential requirements and other relevant provisions of directive 1995/5/EC. ☆ Customer can not modify system software, including "root" or any other crack methods. These methods are not permitted. If you do this, you will lose our Guarentee. ...
- Page 5 Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ...
- Page 6 03. General Specifications Item Description Intel Celeron, N2807 Memory 2G Byte RAM Storage 32GByte eMMC System Win8.1 Pro/Embedded/with Bing 0℃ ~ +40℃ Operating Temperature Operating Humidity 10% ~ 90% TFT LCD 10.1"TFT LCD，1280*800 Display Brightness 300cd/m² Touch Screen Multi-touch capacitive touch panel(10 points) 3 Tracks Scanner 1x1D Scanner...
- Page 7 04. Front View 05.Back View ...
- Page 8 06. Dimension 07. I/O View ...
- Page 9 Part 2. System Installation 01. Checking the Location for Installation It is important to choose a safe and secure place to install the terminal. •• Choose a desk or table big and strong enough to support the weight of the system and peripherals. •• Choose a flat, hard surface. Carpeted area can generate static electricity that can alter memory or damage system components. •• Make sure a system installed in a well‐ventilated place and keep the space free around the system. •• Choose appropriate environmental conditions such as cool and dry places. Avoid humid and dusty places. Also avoid direct sunlight, rapidly changing temperatures, or placing the system near heat sources. •• Select the appropriate voltage. Connect all the equipment into an isolated outlet to prevent static electricity and short circuit. •• where sufficient power outlets are available for printers and other peripheral devices. ...
- Page 10 02. Before Connecting Peripherals To connect peripherals first remove the 'Interface cover', which is in the bottom of the system. 03. Connecting DC power supply cable Docking station : Connect the DC power cable to the DC power input connector at the bottom of the system. (Adapter 100V ‐ 240V free voltage of the system can be used.) ...
- Page 11 Tablet : when using 12V adapter for tablet charging, Connect the DC power input cable to the DC power input Port at the side of the tablet. ...
- Page 12 04. Package a. Docking station Package： AC adapter, Power Cord, Docking station b. Tablet Package： AC adapter，Power Cord, Tablet ...
- Page 13 Part 3. Product Layout 01. Motherboard Layout Motherboard Modules and Functions Module Function Description Li-battery Li-battery connector WIFI+BT Wifi+BT module WIFI+BT Wifi+BT antenna connector micro SD+SIM Micro SD+SIM board connector Pogo Pogo connector LCD+TP LCD+TP connector...
- Page 14 MIC connector Speaker Speaker connector DC Jack DC Jack connector Audio 3.5mm stereo headphone USB2.0 connector IC card acceptor Button Power button LED Indicators BIOS-battery BIOS-battery connector connector GPS antenna connector 3G antenna connector 3G module Camera/card Camera/Card reader board connector reader GPS module ...
- Page 15 Modules & Functions Module Function Description Scanner 1D Barcode Scanner Scanner FFC cable Camera Board PCB Camera Board FFC cable MSR & RFID Board PCB Aluminum plate Aluminum Thermal Spreader Mother Board PCB Speaker 8 Ohm, 1 Watt Speaker LCD Screen and TP FPC cable Pogo FFC cable micro-SD/3G FFC cable micro-SD/3G Board PCB...
