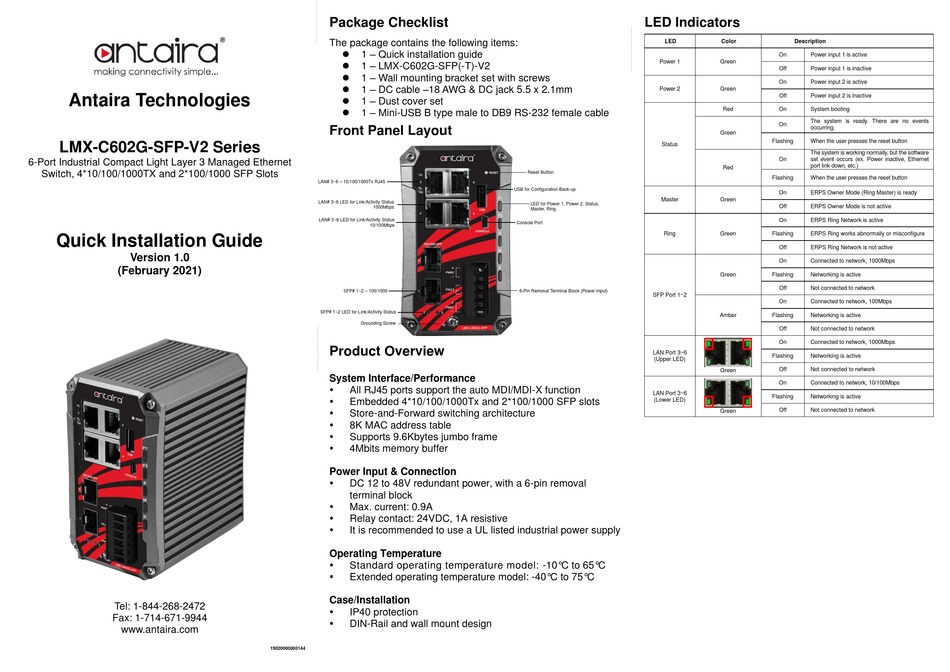

ANTAIRA LMX-C602G-SFP-V2 Series Quick Installation Manual

Antaira Technologies
LMX-C602G-SFP-V2 Series
6-Port Industrial Compact Light Layer 3 Managed Ethernet
Switch, 4*10/100/1000TX and 2*100/1000 SFP Slots
Quick Installation Guide
Version 1.0
(February 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Checklist
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-C602G-SFP(-T)-V2
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set
⚫ 1 – Mini-USB B type male to DB9 RS-232 female cable

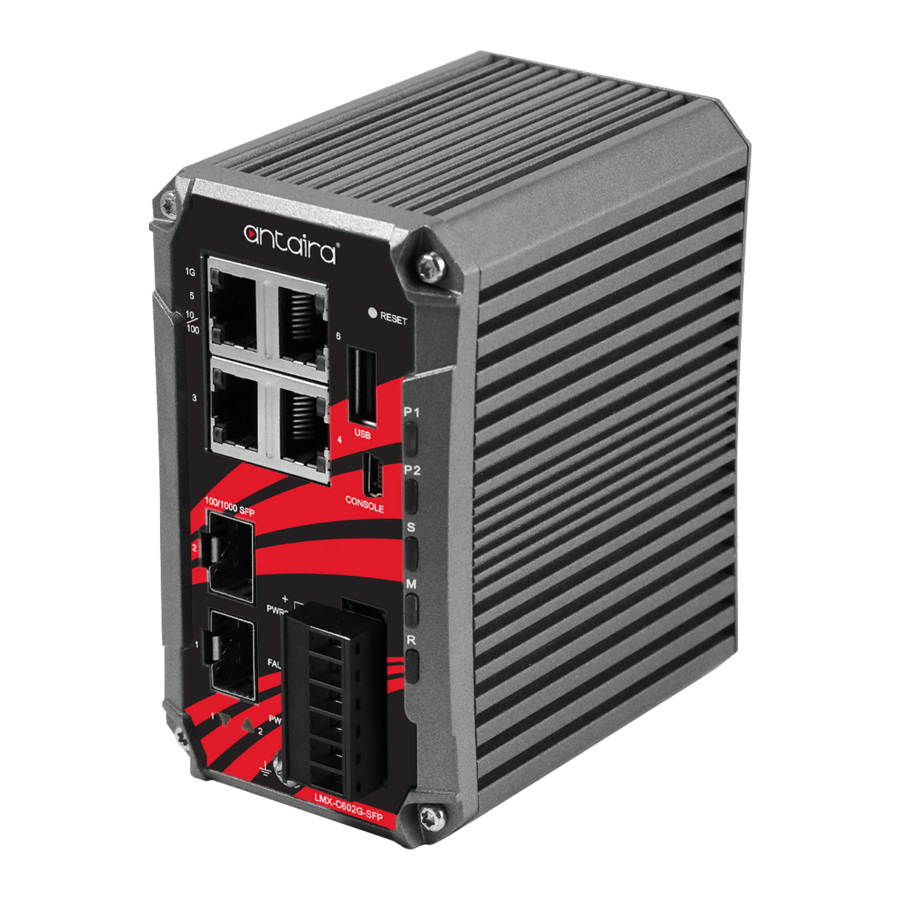

Front Panel Layout
LAN# 3~6 – 10/100/1000Tx RJ45
LAN# 3~6 LED for Link/Activity Status
1000Mbps
LAN# 3~6 LED for Link/Activity Status
10/100Mbps
SFP# 1~2 – 100/1000
SFP# 1~2 LED for Link/Activity Status
Grounding Screw
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Embedded 4*10/100/1000Tx and 2*100/1000 SFP slots

Store-and-Forward switching architecture

8K MAC address table

Supports 9.6Kbytes jumbo frame

4Mbits memory buffer
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

Max. current: 0.9A

Relay contact: 24VDC, 1A resistive

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP40 protection

DIN-Rail and wall mount design
19020000000144
LED Indicators
LED
Power 1
Power 2
Status
Reset Button
USB for Configuration Back-up
Master
LED for Power 1, Power 2, Status,
Master, Ring
Console Port
Ring
6-Pin Removal Terminal Block (Power Input)
SFP Port 1~2
LAN Port 3~6
(Upper LED)
LAN Port 3~6
(Lower LED)
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Red On System booting
The system is ready. There are no events
On
occurring.
Green
Flashing When the user presses the reset button
The system is working normally, but the software
On set event occurs (ex. Power inactive, Ethernet
port link down, etc.)
Red
Flashing When the user presses the reset button
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On ERPS Ring Network is active
Green Flashing ERPS Ring works abnormally or misconfigure
Off ERPS Ring Network is not active
On Connected to network, 1000Mbps
Green Flashing Networking is active
Off Not connected to network
On Connected to network, 100Mbps
Amber Flashing Networking is active
Off Not connected to network
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Green
