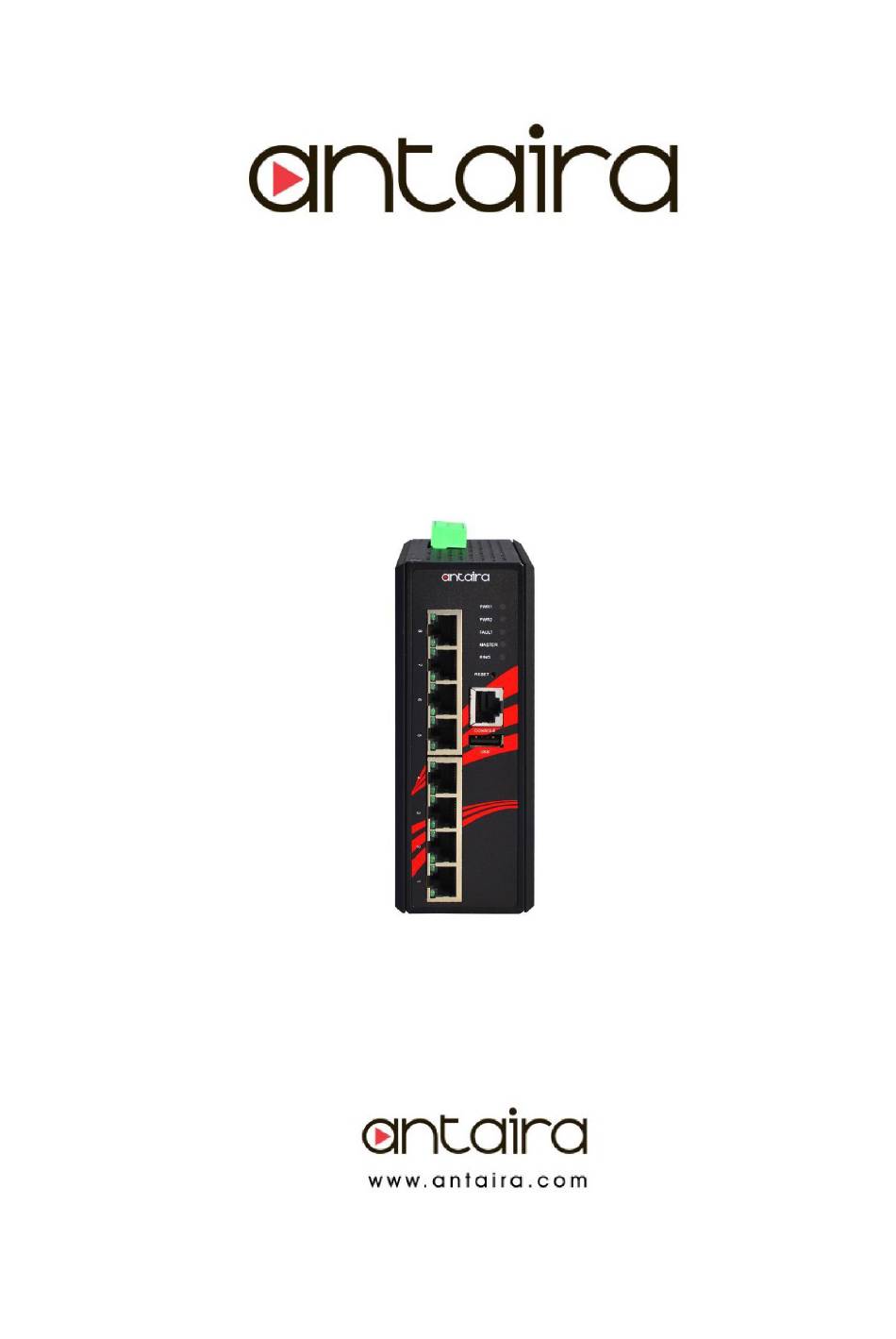

- Page 1 Antaira Industrial Ethernet Switches LMX-1002C-SFPeries User Manual V1.0 LMX-0800 Series 8-Port Industrial Managed Ethernet Switches With 8*10/100Tx Ethernet Ports Version 1.3 Hardware Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Managed Ethernet Switches Hardware Manual Version 1.3 (July 2018) This manual supports the following models: LMX-0800 LMX-0800-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
(SNMP). 1.1 Product Overview Antaira Technologies’ LMX-0800 series is an 8-port industrial managed Ethernet switch that is embedded with eight Ethernet connections. It is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring... -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 HTTPS, SSH/SSL, TFTP MODBUS TCP for SCADA system integration Port Configuration Status, statistics, mirroring, rate limiting, event syslog Event Handling Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP trap and Fault Alarm Relay Output Software Upgrade via TFTP and HTTP... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 1.4 Package Contents 1– LMX-0800 series: 8-port industrial managed Ethernet switch, with 8*10/100Tx RJ45 Ethernet ports 1-Product CD DIN-Rail & 2-W all mounting brackets and screws ... -
Page 8: Hardware Description
LMX-0800 Series Hardware Manual V1.3 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-0800 series: 8-port industrial managed Ethernet switches with 8*10/100Tx ports. (W x D x H) is 54mm x 99mm x 142mm Figure2.1... -
Page 9: Front Panel

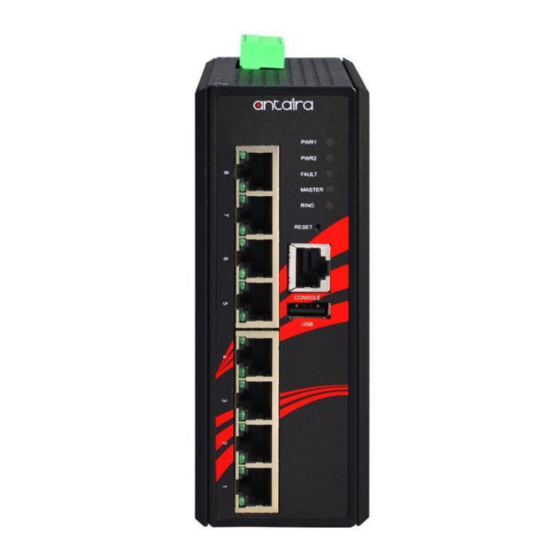

Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 2.2 Front Panel The front panel of the LMX-0800 series industrial managed Ethernet switch is shown below in Figure 2.2. 6-Pin Removal Terminal Block (Power Input) Grounding Screw LED for PWR1, PWR2, and Fault LAN Port #5~8 –... -
Page 10: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T or 100Base- TX connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 The following figures show the cabling schematics for straight-through and crossover. Figure 2.4 Figure 2.5 Straight-Through Cable Schematic Crossover Cable Schematic 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and forma normally open circuit. -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-0800 Series Hardware Manual V1.3 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 16: Hardware Installation
LMX-0800 Series Hardware Manual V1.3 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-0800 series: 8-port industrial managed Ethernet switches with 8*10/100Tx ports. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 17: Technical Specifications
• Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-0800 series: 8-port industrial managed Ethernet switches with 8*10/100Tx ports. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 18 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
