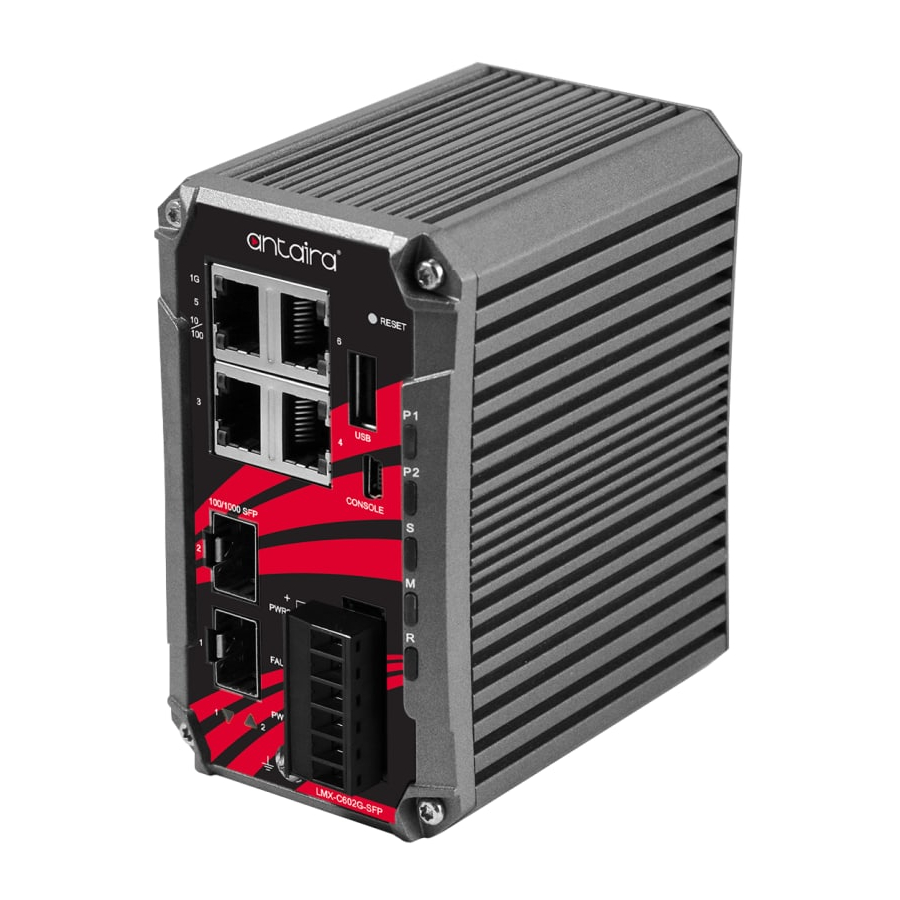

ANTAIRA LMX-C602G-SFP-V2 Series Hardware Manual
6-port industrial compact gigabit light layer 3 managed ethernet switch, with 4*10/100/1000tx and 2*100/1000 sfp slots
Hide thumbs
Also See for LMX-C602G-SFP-V2 Series:
- Quick installation manual (2 pages) ,
- Quick installation manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for ANTAIRA LMX-C602G-SFP-V2 Series
Summary of Contents for ANTAIRA LMX-C602G-SFP-V2 Series

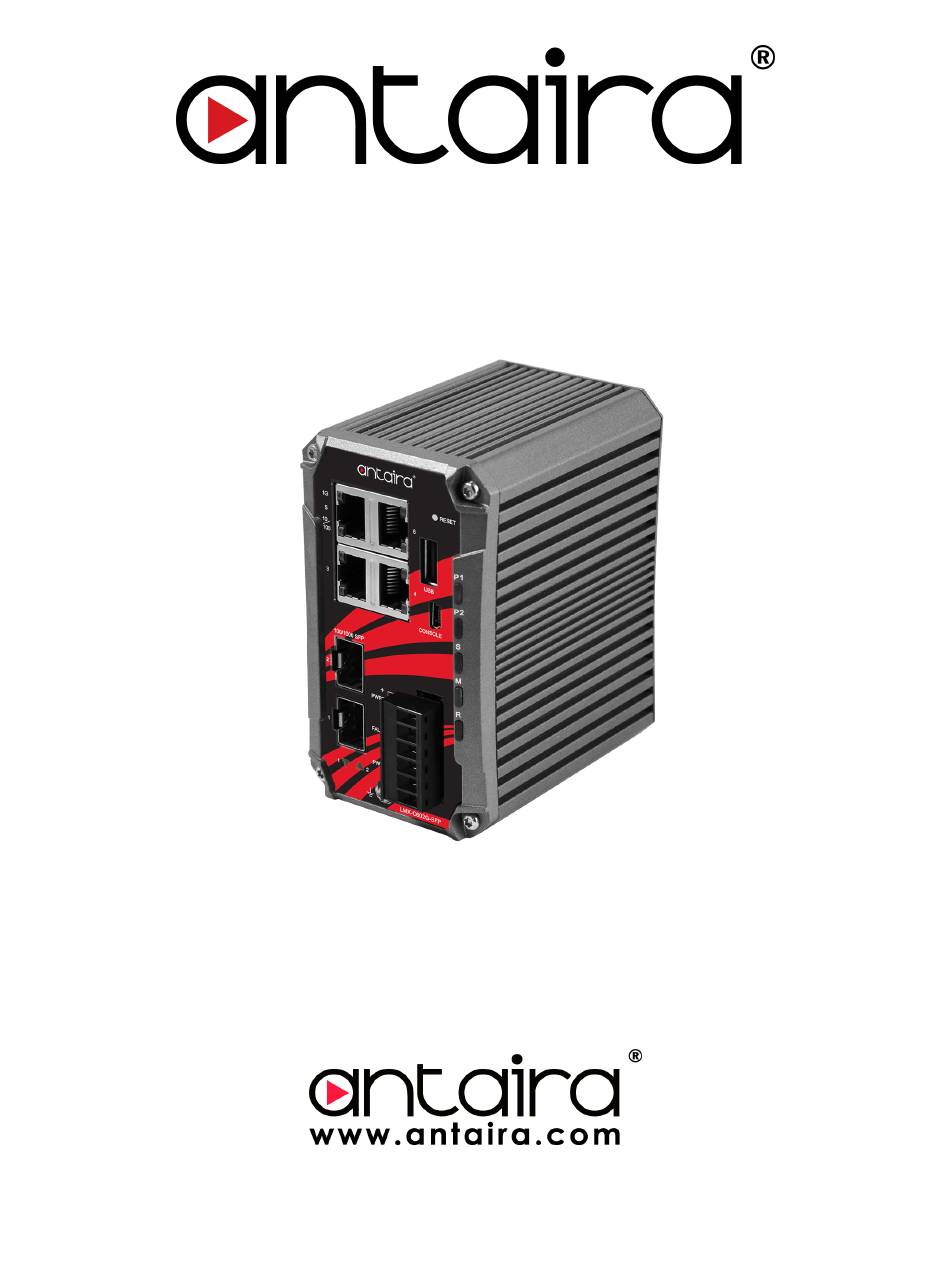

- Page 1 LMX-C602G-SFP-V2 Series 6-Port Industrial Compact Gigabit Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx and 2*100/1000 SFP Slots Hardware Manual Version 1.0 (February 2021)
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is ●...
- Page 4 Hardware Manual Version 1.0 (February 2021) The manual supports the following models: LMX-C602G-SFP-V2 ● LMX-C602G-SFP-T-V2 ● This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Product Software Features 1.3 Package Contents 1.4 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 LED Indicators... -
Page 6: Overview
4*10/100/1000Tx Ethernet ports and 2*100/1000 dual rate SFP slots for fiber connections. The LMX-C602G-SFP-V2 series is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an extended... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 QoS, traffic classification QoS, Cos, bandwidth control for Ingress and Egress, broadcast storm control, Diffserv IEEE 802.1q VLAN tagging, port-based VLAN support IGMP snooping v1/v2/v3, IGMP filtering / throttling, IGMP query up to 1024 group... - Page 8 Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 The caution label means that you should check certain information on the user manual when working with the device. (Shown in Figure 1.1) Étiquettes d'avertissement L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation lorsque vous travaillez avec l'appareil.
-
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 64.9mm x 89.8mm x 110mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. - Page 11 Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 System booting The system is ready. There are no events occurring. Green Flashing When the user presses the reset button Status The system is working normally, but the software set event occurs (ex.
-
Page 12: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 2.4 Reset Button There is a “reset” button located on the top panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 13: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 2 / TP0- 6 / TP1- 2 / TP0- 2 / TP1- 3 / TP1+ 1 / TP0+ 3 / TP1+ 3 / TP0+ 4 / TP2+... -
Page 14: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 Figure 2.3 - Power Terminal Block Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.4. Figure 2.4 - Power Terminal Block Caution: Only use copper conductors, 125°C, tighten to 5 lbs. -
Page 15: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 Figure 2.5 - Wiring the Fault Alarm Contact Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. - Page 16 Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 Caution: Using a shielded cable achieves better electromagnetic compatibility. Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique...
-
Page 17: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 18: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 19 Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 20: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 21: Maintenance And Service
● a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service if the problem still cannot be ○ resolved. If the industrial switch LED indicators are normal and the connected cables are correct but the ●... -
Page 22: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error L2 Switching disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP... - Page 23 Antaira Technologies - Industrial Ethernet Switches LMX-C602G-SFP-V2 Series - Hardware Manual - v1.0 Jumbo Frame 9.6Kbytes MAC Table Size VLAN Group 4095 IGMP Group 1024 Port Interface 4*10/100/1000BaseTx Ethernet Ports Auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection SFP Ports...
- Page 24 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
