Henderson SIM100 Fitting Instructions

FITTING INSTRUCTIONS - NOTICE DE POSE - MONTAGE HANDLEIDING - MONTAGEANLEITUNG
For a pair of bi-parting doors up to 1250mm wide each, to be used with a pair of Husky 100 or Pocket Door Kits
(PDK range) . Door thickness between 25mm and 50mm. Minimum door weight 25kg.

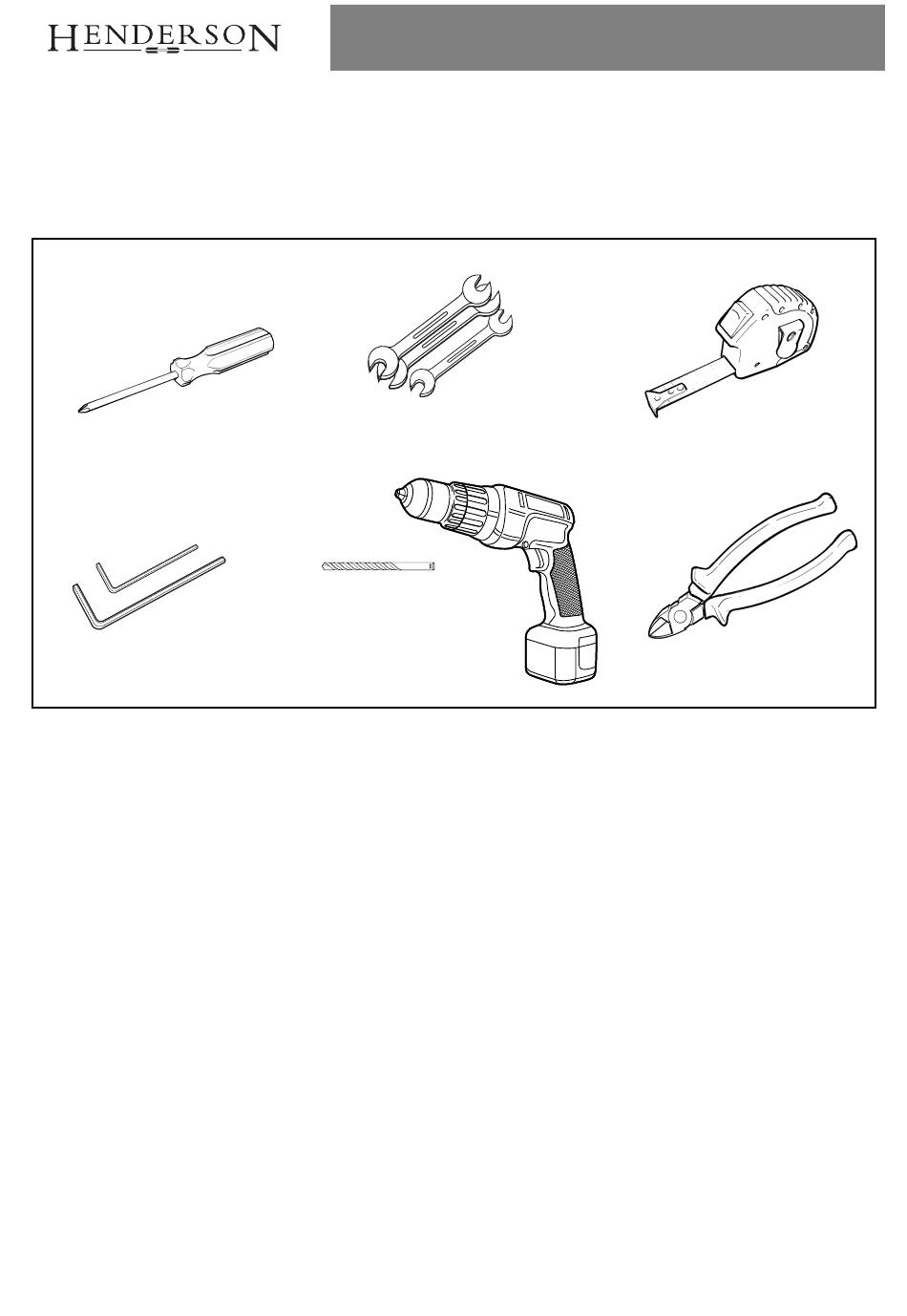

Tools Required
1 x Phillips screwdriver
1 x Allen key - 1.5mm
1 x Allen key - 5mm
1. Install the Husky 100 system for two bi-parting doors in
accordance with the instructions (supplied in the Husky kit)
ensuring that the doors have been fitted correctly and are sliding
freely, and the clip stops are secured at the door opening limits.
2. Remove the last bolt from both end clips with the 5mm Allen key
and replace with the extended bolt, complete with the pulley
assembly to both of the clip stops. See diagrams 1 and 2.
3. Disconnect both of the doors from the sliding gear and fit the left
and right hand door brackets to the top of both the doors in a
central position and 5mm off the centre of the door thickness,
using the screws provided, see diagram 5. Then re-hang the doors
as before.
4. Taking the cable (ensuring it is 'kink' free), hook the fixed loop
end of the cable to the right hand door bracket as shown in
diagram 4.
5. Feed the cable through the right hand pulley wheel. Ensure that
the cable travelling in and out of the pulley runs parallel, see
diagram 2.
6. Place the cable collar into the left hand door bracket, and thread
the cable through the collar as shown in diagram 3. Do not
tighten the grub screws at this stage.
Simultaneous Action Kit - SIM100
INSTRUZIONI DI MONTAGGIO - INSTUCCIONES DE MONTAJE
2 x 8mm spanners
1 x 7mm spanner
1 x Drill + 2mm drill bit
(for drilling pilot holes on top of doors)
7. Feed the cable through the left hand pulley wheel. Ensure that
the cable travelling in and out of the pulley runs parallel, see
diagram 1.
8. Whilst holding the cable, with a small amount of tension, thread
the cable clamp on to the cable. Then form a loop and insert the
thimble into the loop. Feed the end of the cable back through the
cable clamp to hold the shape of the loop, see diagram 4.
9. Fit the adjuster bolt on to the right hand door bracket complete
with the two lock nuts, then hook the spring on to the adjuster
bolt and hook the cable loop on to the other end of the spring,
see diagram 4.
10. Pull the excess cable through the cable clamp until the spring
starts to pull back, then tighten the cable clamp nut with the
7mm spanner to secure the cable loop. Cut off any excess cable
with the cable cutters.
11. Using the 8mm spanners adjust the adjuster nut to tension the
cable so there is no sag in the cable and lock off the lock nut.
12. Position the doors so that they are centralised within the
opening and tighten the grub screws in the cable collar with the
1.5mm Allen key to secure the doors in place. Test the operation
of the system to ensure it is working correctly.
1 x Tape measure
1 x Cable cutters
