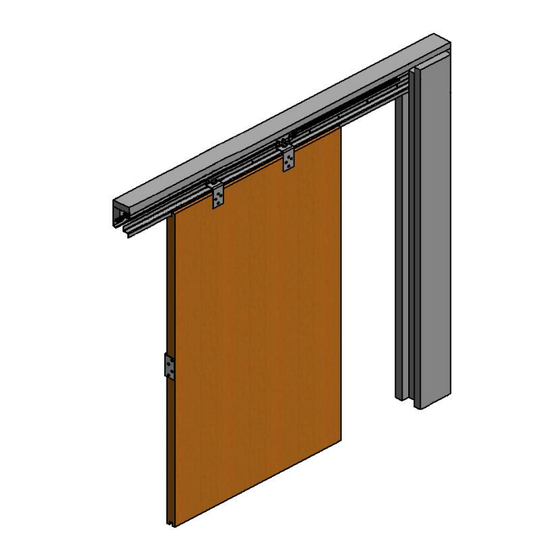

Henderson MARATHON FDK1 Fitting Instructions Manual

MARATHON FIRE RATED
Fitting Instructions
KIT AND DOOR SPECIFICATION
Short Code Operation
FDK1 Self Closing
FDK2 Non Self Closing
Note: A Marathon 90 (S3, S4, S5 or S6) sliding door hardware kit must be purchased in addition to this system.
KIT CONTENTS
Apron Assembly
FDK1: x 2
FDK2: x 2
Floor Guide
FDK1: x 1
FDK2: x 1
Main Weight x 5
Clamp x 1
(FDK1 only) (FDK1 only)
PLEASE NOTE: Marathon Fire Rated is a system developed as part of a 30 minute sliding fire door assembly
to BS 476: Part 22: 1987 and should be fitted with a solid core FD30 or FD60 timber based fire door on the
non-fire risk side of the aperture.
TOOLS REQUIRED
Router
Screwdriver
Fire Rating
FD30
FD30
Back Door Binder
Z Section
FDK1: x 1
FDK1: x 2
FDK2: x 1
FDK2: x 2
Pulley
Assembly x 1
(FDK1 only)
Make Weights x 8
(FDK1 only)
Screw C
FDK1: x 2
FDK2: x 2
Spanner
Tape Measure
Max. Door Max. Door
Width Height
1500mm 3000mm
1500mm 3000mm
Front Door Binder
FDK1: x 2
FDK2: x 2
Tension Plate x1
(FDK1 only)
Screw A
FDK1: x 30
FDK2: x 26
Screw D x 2
(FDK1 only)
Chisel
Drill
1
Door Thickness Max Door
Range Weight
44 - 50mm 90kg
44 - 50mm 90kg
Binder Receiving Plate
FDK1: x 1
FDK2: x 1
Cable x 1
(FDK1 only)
Screw B
FDK1: x 11
FDK2: x 11
Spirit Level
Pliers
