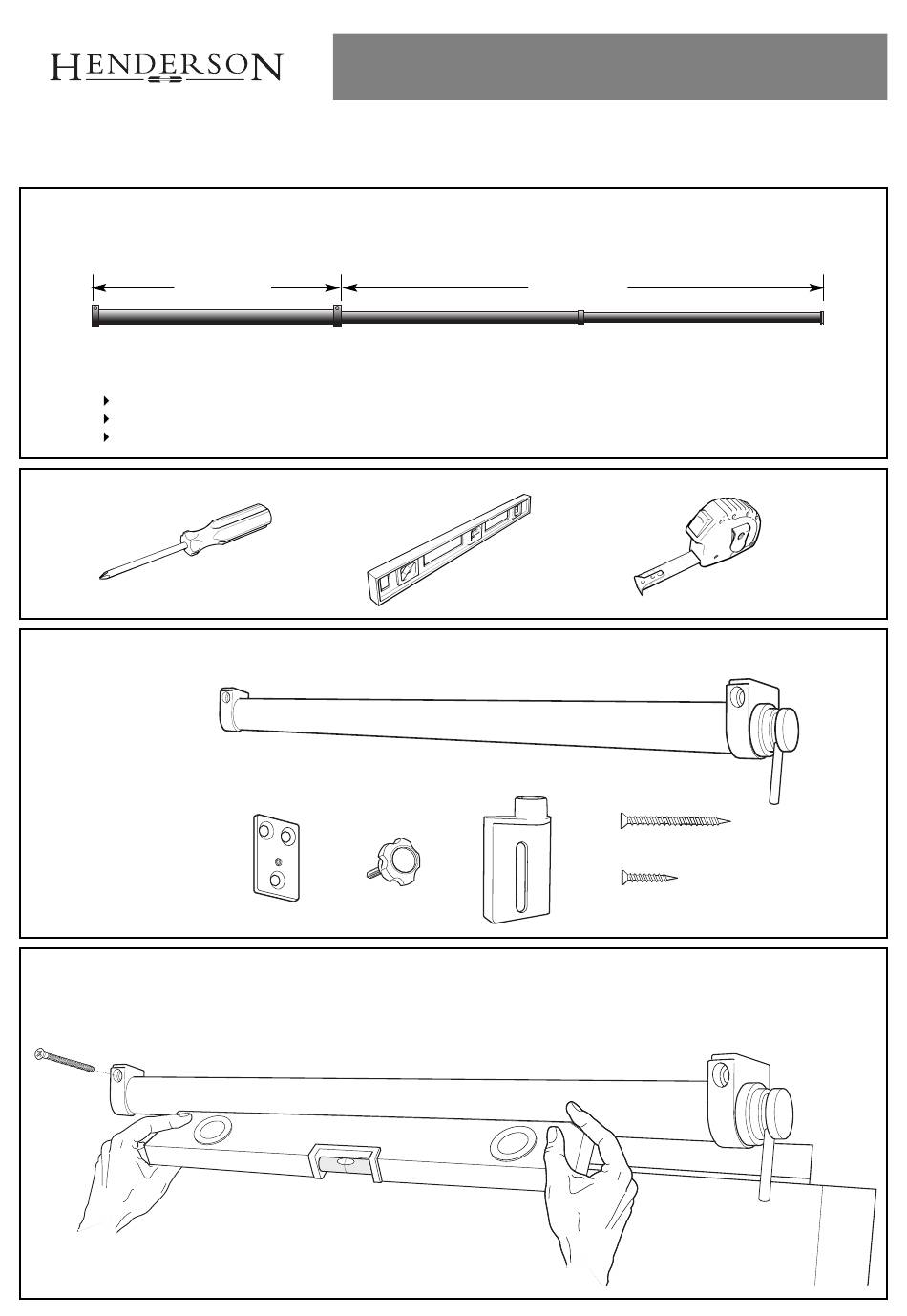

Henderson Easyclose Fitting Instructions Manual

FITTING INSTRUCTIONS - NOTICE DE POSE - MONTAGE HANDLEIDING - MONTAGEANLEITUNG
The Easyclose door closer uses pneumatic technology to automatically keep your door closed.
The standard length of retracted closer body is 28"/70cm, with maximum travelling of 50"/125cm, suitable for most width doors.
711mm/28"
The closing performance of Easyclose is affected mainly by the door's rolling efficiency.
If the rolling efficiency is not smooth enough the Easyclose may not show its best closing performance.
A top rolling system on doors is smoother than floor track doors, enhancing the Easyclose performance.
Tools Required
Posidrive screwdriver
Contents of the Kit
Flex Bracket Base Plate x 1
1, Install the closer unit - See Appendix A for possible fitting options
Move the door to the closed position and install the closer on the top jamb of the door
with the 2 long screws supplied, ensure the unit is level in the horizontal plane.
Screw A x 2
ISTRUZIONI DI MONTAGGIO - INSTUCCIONES DE MONTAJE
IMPORTANT information before installation
T-Screw x 1
(for fixing Flex bracket
to the base plate)
Easyclose 100kg
1270mm/50"
Spirit Level
Easyclose Door Closer x 1
Flex Bracket x 1
Tape measure
Long Screw A x 2
(for mounting door closer)
Short Screw B x 3
(for mounting base plate)
