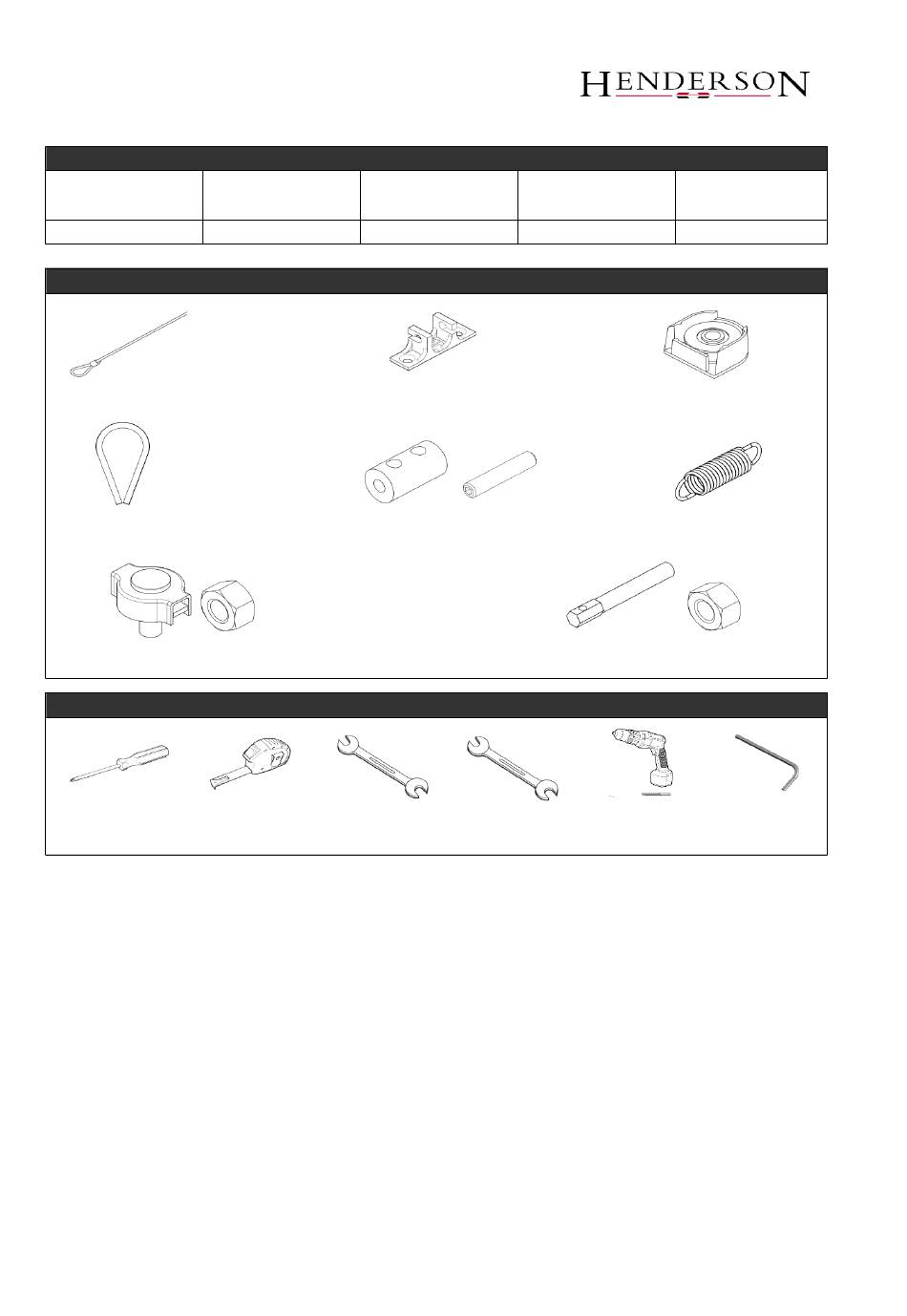

SIM100
Fitting Instructions
Door Thickness
Kit Short Code
Range
SIM100
25 - 50mm
Cable (x1)
Thimble Insert (x1)
Cable Clamp & Nut (x1)
Philips
Screwdriver
PRODUCT SPECIFICATION
Max Door Width
1250mm
KIT COMPONENTS
Cable Securing
Bracket (x2)
Cable Collar & Grub Screw(x2)
TOOLS REQUIRED
7mm
Tape
Spanner
Measure
Min Door Weight
25kg
Adjuster Bolt & Nut (x1)
8mm
Spanner
Page 1
Max Door Weight
120kg
Pulley Wheel (x2)
Spring (x1)
1.5 and 5mm
Drill and
Allen Keys
2mm Drill Bit
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Henderson SIM100
Summary of Contents for Henderson SIM100
- Page 1 SIM100 Fitting Instructions PRODUCT SPECIFICATION Door Thickness Kit Short Code Max Door Width Min Door Weight Max Door Weight Range SIM100 25 - 50mm 1250mm 25kg 120kg KIT COMPONENTS Cable Securing Pulley Wheel (x2) Cable (x1) Bracket (x2) Thimble Insert (x1) Spring (x1) Cable Collar &...
- Page 2 SYSTEM OVERVIEW Elevated View (for illustrative purposes Husky components are shown in the below diagram) Hanger Tension Spring Hanger Hanger Hanger Track Left Hand Door Left Hand Door Right Hand Door Pulley Pulley Wheel Wheel Cable Bracket Cable Bracket Overhead View (for illustrative purposes Husky components are shown in the below diagram) Hanger Hanger...
- Page 3 STEP BY STEP INSTRUCTIONS Important Note: Please install sliding door system in accordance with separate fitting instructions before moving to the steps below. STEP 1: Remove cap head screw and replace with set screw and simultaneous wheel. a) When installing with Soltaire or Pocket Door Pro Track LeftHand Door Right Hand Door...
- Page 4 STEP 2: Remove the doors. Fit the left and right hand door brackets to the top of both doors. Centre line of doors Door thickness Left hand door Right hand door STEP 3: Rehang the doors. STEP 4: Hook the fixed loop end of the cable to the right hand door bracket. Fixed loop Right hand door cable securing bracket...
- Page 5 STEP 6: Place the cable collar into the left hand door bracket and thread the cable through the collar. Cable Collar Left hand door cable securing bracket Grub Screws NOTE: Do not tighten the grub screws at this stage STEP 7: Feed the cable through the left hand pulley wheel Cable Cable Pulley STEP 8: Whilst holding the cable (with a small amount of tension) thread the cable clamp onto the cable.
- Page 6 STEP 10: Close the doors and tighten the grub screws in the cable collar to secure the doors in place. Test the operation of the system to ensure it is working correctly P C Henderson Ltd, Durham Road, Bowburn, Co. Durham, DH6 5NG, UK 370262...
