ROOMFLEX 40
Product Code
Door Configuration
HRP2/2
2+2

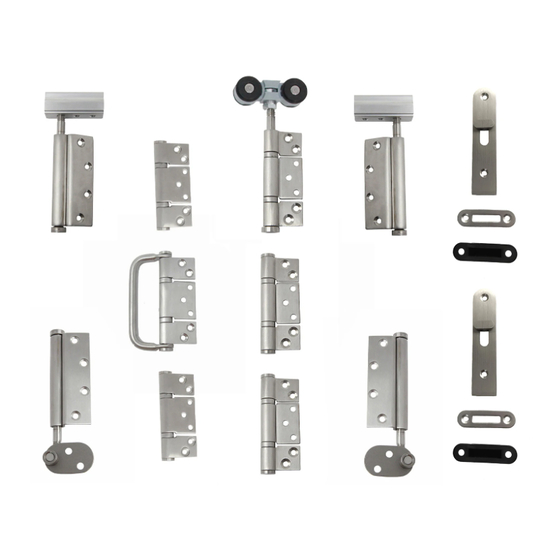

2+2 KIT CONTENTS
Bottom
Intermediate Hinge
Handle Set x2
It is recommended that a light smear of general purpose grease is applied to all bolts prior to assembly.
Folding Direction
= Flush bolt
FITTING INSTRUCTIONS
KIT AND DOOR SPECIFICATION
Max. Door Height
3000mm
End Hanger Hinge x2
2, 3 & 5mm
Flush
Bolt Set x2
SYSTEM OVERVIEW AND DOOR CONFIGURATIONS
Max. Door Width
838mm
TOOLS REQUIRED
FINISHED OPENING WIDTH (W)
6
3
JAMB
3
TOP PIVOT
END HANGER
11
HINGE
2
1
Max. Door Thickness
35-44mm
MIDSET HINGE
12mm
TOP PIVOT
MIDSET HANDLE
24mm
MIDSET HINGE
13mm
6
INTERMEDIATE HINGE
DOOR 2
JAMB
3
TOP PIVOT
END HANGER
11
HINGE
2
40kg
WRAP ARO
H
HINGE
FB110 F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROOMFLEX 40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Henderson ROOMFLEX 40

Summary of Contents for Henderson ROOMFLEX 40

  • Page 1: Table Of Contents

    ROOMFLEX 40 FITTING INSTRUCTIONS KIT AND DOOR SPECIFICATION Product Code Door Configuration Max. Door Height Max. Door Width Max. Door Thickness HRP2/2 3000mm 838mm 35-44mm 40kg 2+2 KIT CONTENTS TOOLS REQUIRED WRAP ARO MIDSET HINGE 12mm TOP PIVOT End Hanger Hinge x2...

  • Page 2: Frame Dimensions

    Note: Ensure opening is square, level and all load bearing areas are suitable for weight of system. Ensure there is sufficient strength in structure above the opening to take concentrated weight of doors when open. Roomflex 40 provides +/- 5mm of horizontal adjustment. Ensure doors are measured accurately prior to installation.

  • Page 3: Bottom Pivot

    SECURE TRACK POSITION TIMBER HEADERS AS SLIDE PIVOT INTO PLACE. PER THE BELOW. BLOCKS FLUSH TO FRAME. DT - 6 SECURE IN PLACE. INSTALLATION 1. Ensure that you have all the required parts. Unpack the com- ponents and identify the parts. Lay the parts on the ground in the same con guration as they will be when installed.

  • Page 4: Diagram 4

    FLUSH BOLT ROUTING DETAIL ROUTE FLUSH BOLTS (SEE DIAMGRAM 1 FOR LOCATION). SECURE FLUSH BOLTS USING 30MM SCREWS PROVIDED. JAMB REBATE HANGER HINGE SET JAMB JAMB JAMB REBATE INTERMEDIATE HANGER SET JAMB JAMB PIVOT SET PIVOT SET PIVOT SET HANDLE HINGE SET DOORS AND HINGES OVERVIEW OFFSET HANDLE HINGE SET DIAGRAM 4...
  • Page 5 JAMB REBATE INTERMEDIATE HANGER SET RAISE DOOR 1: 5MM FROM FLOOR. SLIDE STRAP BOLT THROUGH JAMB REBATE INTERMEDIATE HANGER SET JAMB JAMB UNSCREW NUT, SLIDE STRAP BOLT BOTTOM HINGE AND INTO LINK JAMB JAMB THROUGH HINGE AND REATTACH NUT. ARM. TIGHTEN WITH 5MM TIGHTEN WITH 5MM ALLEN KEY.

  • Page 6: Height Adjustment
