Ultra

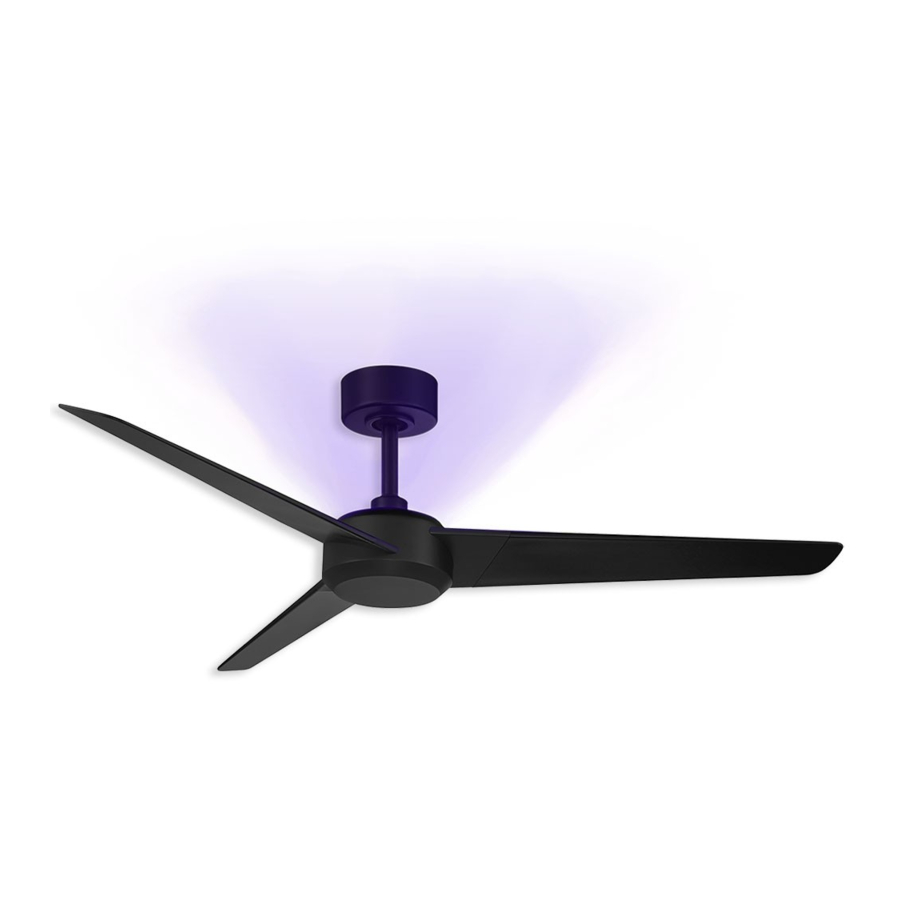

Germicidal* Smart Fan
Installation Instructions
works with the
Google Assistant
*Reduces the SARS COV-2 viruses and other airborne pathogens.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra and is the answer not in the manual?

Questions and answers

Related Manuals for Modern Forms Ultra

Summary of Contents for Modern Forms Ultra

  • Page 1 Ultra Germicidal* Smart Fan Installation Instructions works with the Google Assistant *Reduces the SARS COV-2 viruses and other airborne pathogens.
  • Page 2 2. Part Number and Part Description 3. Date Of Purchase and Purchase Location 1-866-810-6615 option 1 MON-FRI 8AM-8PM EST Email: fansupport@modernforms.com F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...
  • Page 3 If you feel you do not have enough wiring knowledge or experience, have your fan to predict the extent of reductions that will be achieved by the ULTRA in whole room air in any particular room or installed by a licensed electrician.

  • Page 4: Table Of Contents

    13. Troubleshooting cont. 25-28 6 fan speeds Accessories: F-RCUV-WT White personalize your experience Tools Required ULTRA VIOLET F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...
  • Page 5 Place the parts from the hardware bag into a small container to keep them from being lost. F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...
  • Page 6 You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling (Fig. 1B). Outlet Box F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...

  • Page 7: Installing The Mounting Bracket

    4. Carefully feed the motor wires and safety cable up through the downrod. Thread the downrod assembly onto motor collar. (Fig 4B) F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...

  • Page 8: Hanging The Fan Cont

    2. Screw 3. 120V Wires 4. cUL Listed Electrical Box 5. Mounting plate 6. Mounting screws Safety cable F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...

  • Page 9: Making The Electrical Connections

    Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections. Use Part D. F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...

  • Page 10: Finishing The Installation

    UV light. For more safety instructions, please refer to page 5 of this instruction manual (“UV Safety Rules”). *Reduces the SARS COV-2 viruses and other airborne pathogens F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...

  • Page 11: Controlling The Fan

    NOTE: Anytime the UV is on the fan will run. When UV is turned off the fan will return to the state it was in prior to the module being turned on. The UV module comes with 3 ultra-violet indicator lights so you know the UV light is on.

  • Page 12: Reset

    Scan and follow prompts for instruction In addition to the included remote control, you can control your fan through the Modern Forms app. To use the Modern Forms app, download it for free from the options and Smart Fan FAQs: App Store or Google Play.

  • Page 13: Bluetooth Remote Control On/Off

    2. Check line wire connections to fan and switch wire connections in the switch housings. CAUTION: Make sure the main power is turned off! F R - D 21 0 2 Ultra Smart Fan Instructions F R - D 2 1 0 2 Ultra Smart Fan Instructions...
  • Page 14 The fan will start to broadcast it’s SSID. activity through the Modern Forms app. This feature can be toggled 3. The fan will beep and you will see its Wi-Fi network available for on or off.
  • Page 15 Notice of replacing a control, refer to the pairing and unpairing section of the a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according instructions.
  • Page 16 Cette garantie ne s’applique pas aux produits qui ont été modifiés, mal installés, mal manipulés ou mal utilisés. Un avis de défaut par écrit doit être reçu par Modern Forms dans les cinq (5) ans à compter de la date d’achat (ou selon la période de temps indiquée par le matériel). Sont exclus de la garantie tout composant tiers qui porte sa propre garantie du fabricant.
  • Page 17 F R- D 2 10 2 modernforms.com...
