V2 HYPERFOR 4000-I Manual page 13

230v three-phase electro-mechanical irreversible actuator with inverter for sliding gates up to 4000 kg
Table of Contents

Advertisement

Available languages

Available languages

i1
A1A2
S1 S2
S3 S4 S5 S6 S7 S8 S9 H1H2 H3 H4 H5 H6 H7 H8 E1 E2
U3
U2
U1
MOTOR

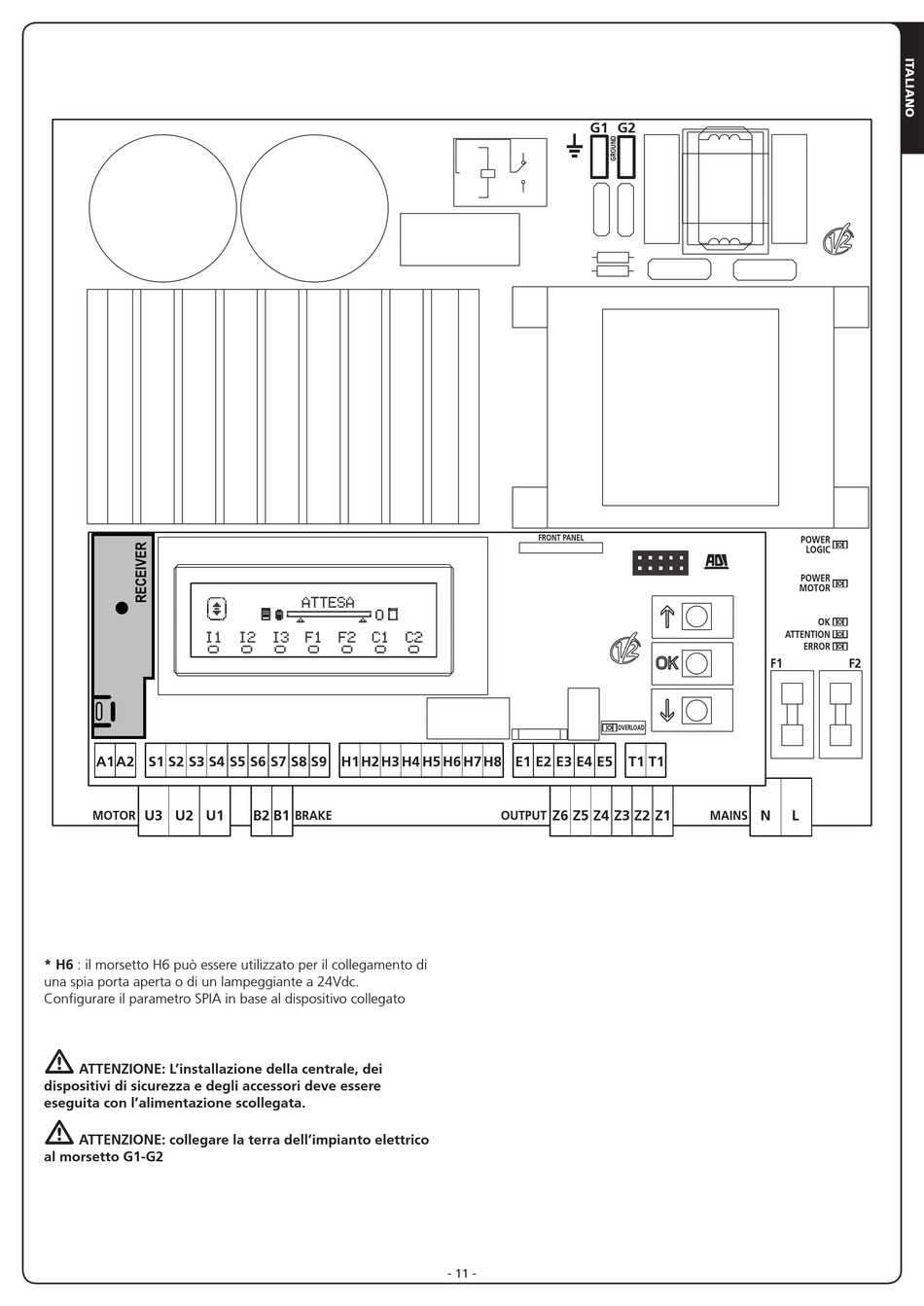

* H6 : il morsetto H6 può essere utilizzato per il collegamento di
una spia porta aperta o di un lampeggiante a 24Vdc.
Configurare il parametro SPIA in base al dispositivo collegato
m
ATTENZIONE: L'installazione della centrale, dei
dispositivi di sicurezza e degli accessori deve essere
eseguita con l'alimentazione scollegata.
m
ATTENZIONE: collegare la terra dell'impianto elettrico
al morsetto G1-G2
ATTESA
i2
i3
f1
f2
c1
c2
B2 B1
BRAKE
G1 G2
FRONT PANEL
OVERLOAD
E3 E4 E5
Z6
Z5
Z4
Z3
OUTPUT
- 11 -
POWER
POWER
MOTOR
ATTENTION
F1
T1 T1
Z2
Z1
N
L
MAINS
LOGIC
OK
ERROR
F2
