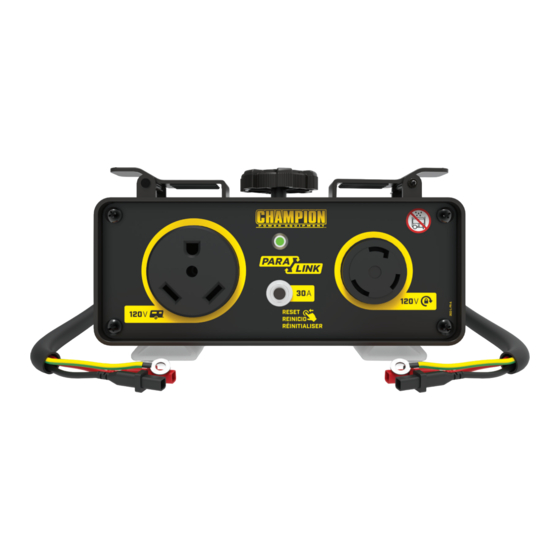

OPERATOR'S MANUAL
MODEL #100740
PARALLEL KiT
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
or visit championpowerequipment.com
SAVE THESE iNSTRUCTiONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REV 20210423
Champion Power Equipment, Inc., Santa Fe Springs, CA USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paralink 100740 and is the answer not in the manual?

Questions and answers

Related Manuals for Champion Power Equipment Paralink 100740

Summary of Contents for Champion Power Equipment Paralink 100740

  • Page 1 This manual should remain with the product. Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice. REV 20210423 Champion Power Equipment, Inc., Santa Fe Springs, CA USA...
  • Page 2 CARBON MONOXIDE SAFETY: THE BIG PICTURE As the only safe way to use a portable generator, taking your generator outside is absolutely mandatory to keep your family safe from carbon monoxide. But there’s even more you can do. By educating yourself about all carbon monoxide risks, you’ll be better prepared to protect your family from this colorless, oderless threat.

  • Page 3: Table Of Contents

    TAbLE Of CONTENTS 100740 - PARALLEL KiT TAbLE Of CONTENTS Assembly and Operation ....... Paralleling Two Inverters .......... introduction ........... Adjusting the Anti-Vibration Wedges ......

  • Page 4: Introduction

    100740 - PARALLEL KiT iNTRODUCTiON SAfETY DEfiNiTiONS Congratulations on your purchase of a Champion Power Equipment The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, (CPE) product. CPE designs, builds, and supports all of our products to strict specifications and guidelines.

  • Page 5: Important Safety Instructions

    iMPORTANT SAfETY iNSTRUCTiONS 100740 - PARALLEL KiT iMPORTANT SAfETY iNSTRUCTiONS DANGER  Operate equipment with guards in place. WARNiNG  Rotating parts can entangle hands, feet, hair, clothing and/or Cancer and Reproductive Harm – www.P65Warnings.ca.gov accessories. Traumatic amputation or severe laceration can result.
  • Page 6 iMPORTANT SAfETY iNSTRUCTiONS 100740 - PARALLEL KiT WARNiNG  Spark from removed spark plug wire can result in fire or electrical shock. When servicing the generator: Disconnect the spark plug wire and place it where it cannot contact the plug or any other metal object. DO NOT check for spark with the plug removed.

  • Page 7: Safety Symbols

    iMPORTANT SAfETY iNSTRUCTiONS 100740 - PARALLEL KiT Safety Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product. SYMBOL MEANING Read Operator’s Manual.

  • Page 8: Controls And Features

    CONTROLS AND fEATURES 100740 - PARALLEL KiT CONTROLS AND fEATURES Read this operator’s manual before operating your Parallel Kit. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Control Panel 1. Power Indicator – Illuminates green when power is being RECEPTACLES supplied to the parallel kit.

  • Page 9: Assembly And Operation

    ASSEMbLY AND OPERATiON 100740 - PARALLEL KiT ASSEMbLY AND OPERATiON 4. Place the bracket around the handle and tighten the fastening dial by turning clockwise until snug. Do not over tighten. You This parallel kit is intended for use with Champion Power may need to loosen the fastening dial to get it around the Equipment inverters rated between 2000 and 3000 starting handle before tightening.

  • Page 10: Adjusting The Anti-Vibration Wedges

    CAbLE STORAGE 100740 - PARALLEL KiT CAbLE STORAGE NOTiCE  When not in use, neatly wrap the cables and use the spring loaded This unit should NOT be used to connect inverters with clips on top of the parallel kit to hold the cables in place. non-ParaLINK receptacles such as the style shown below: Adjusting the Anti-Vibration Wedges There are two rubber wedges on the bottom of the parallel kit that...

  • Page 11: Specifications

    SPECifiCATiONS 100740 - PARALLEL KiT SPECifiCATiONS Specifications Model ............100740 Volts AC ............Frequency ............. 60 Hz Phase .
  • Page 12 Limits of Implied Warranty and Consequential Damage Repair/Replacement Warranty Champion Power Equipment disclaims any obligation to cover CPE warrants to the original purchaser that the mechanical and any loss of time, use of this product, freight, or any incidental electrical components will be free of defects in material and or consequential claim by anyone from using this product.
