Recoil Install for Clamshell Inverters
This covers the following models (Read completely before performing service):
• 100306
• 100414

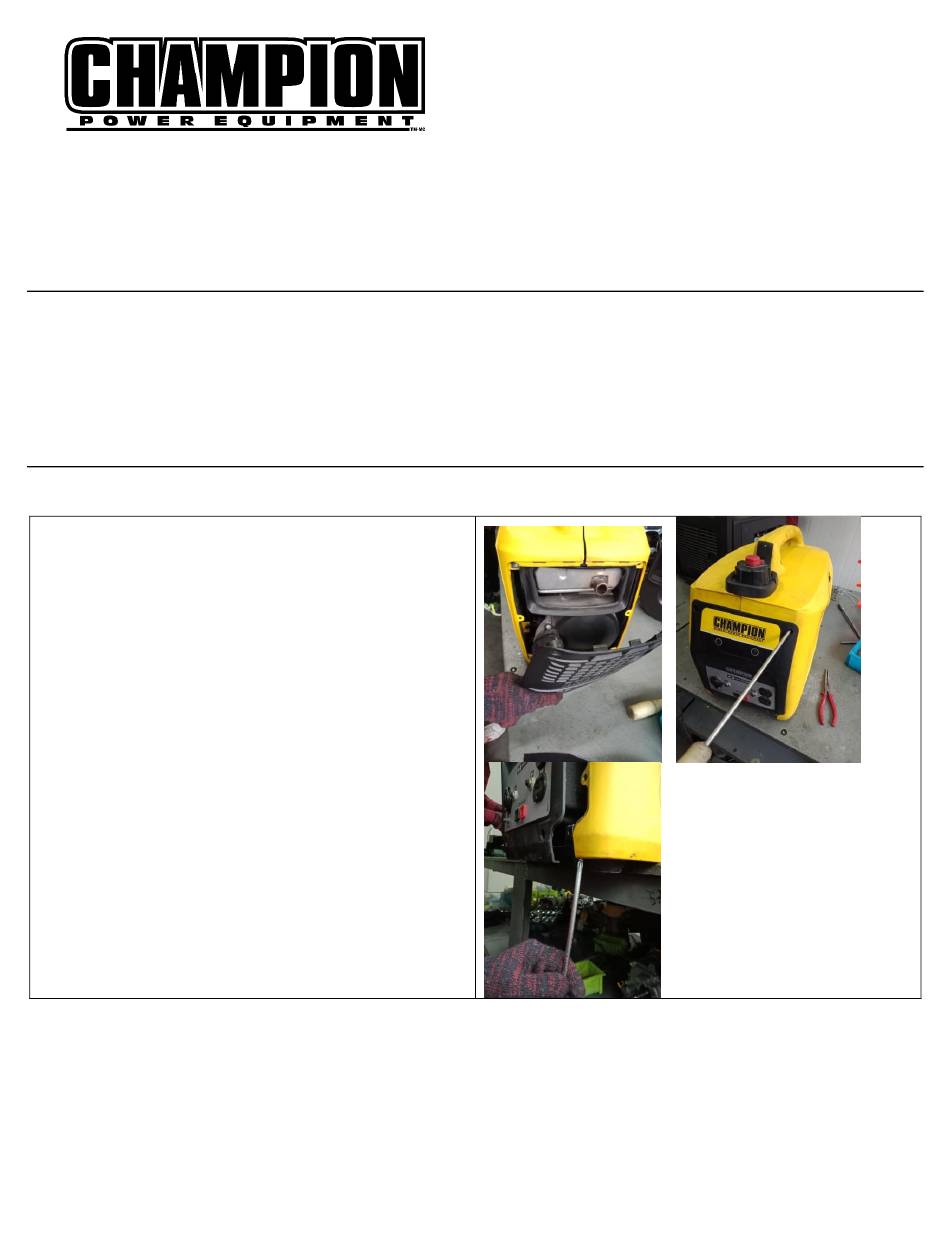

Unscrew total (8) screws of left and right cover
1.
assembly, and then remove left and right cover
assembly. (Note: there are two tapping screws at
the bottom of right panel side – remove them)
11/8/18
Technical Bulletin
Number: 181108-60-50-1
Date: 11/8/18
• 100402
• 100565
• All other Clamshell-Style Inverters
1
Champion Power Equipment, Inc.
Advertisement
Related Manuals for Champion Power Equipment 100306
Summary of Contents for Champion Power Equipment 100306
- Page 1 • All other Clamshell-Style Inverters Unscrew total (8) screws of left and right cover assembly, and then remove left and right cover assembly. (Note: there are two tapping screws at the bottom of right panel side – remove them) 11/8/18 Champion Power Equipment, Inc.
- Page 2 Unscrew all screws and bolts of front cover/ rear cover. Remove the snap spring under the fuel spill rubber. Then remove the rear cover and the illuminator. 11/8/18 Champion Power Equipment, Inc.
- Page 3 Unscrew the screws to remove the right cover. Unscrew the screws of handle oriented plate and have the recoil handle through the front cover. 5. Pull out the fuel hose from the carburetor inlet nozzle to have front cover move freely. 11/8/18 Champion Power Equipment, Inc.
- Page 4 Unscrew the bolts of the recoil cover and remove the recoil assembly 8. Put the new spring into the pulley if need to replace a new spring. 11/8/18 Champion Power Equipment, Inc.
- Page 5 Feed the rope out to the hole of recoil cover and pull it through the guide hole on the outside of the recoil cover. Place the guide plate / pull handle on the rope and secure with a stop-knot. 11/8/18 Champion Power Equipment, Inc.
- Page 6 12. Place the (2) detent springs as shown 13. Place 2 plastic detents into the spring positions with some lubricant. Note the detents must press the springs when installing. 11/8/18 Champion Power Equipment, Inc.
- Page 7 14. Install the hoop onto the plastic press plate, and then put the plastic press plate onto the plastic detents. Note: the salient of detents must snap- into the guide slot of press plate. 11/8/18 Champion Power Equipment, Inc.
- Page 8 16. Secure a stop-knot at the end of the new recoil cover end. Pull rope out for some length and secure a stop- knot, and then disassemble the oriented plate from old recoil assembly and install it to the new one. 11/8/18 Champion Power Equipment, Inc.
- Page 9 Re-install the metal bracket and plug all connectors. Re-install the fuel tank. Remember to plug the fuel hoses to fuel switch side and carburetor inlet nozzle side. 11/8/18 Champion Power Equipment, Inc.
- Page 10 Re-Install front cover, rear cover and illuminator and tighten the screws and bolts. Don’t forget the tapping screws at the bottom and the snap spring. 11/8/18 Champion Power Equipment, Inc.
- Page 11 If you have any questions regarding the previous procedure, please contact our technical department Monday-Friday from 8:30 AM-5:00 PM PST at 877-338-0999. If you have any questions, please contact Champion Power Equipment: Champion Power Equipment, Inc. 12039 Smith Ave.
