CommScope AMP NETCONNECT 1933352 Series Instruction Sheet

Figure 1

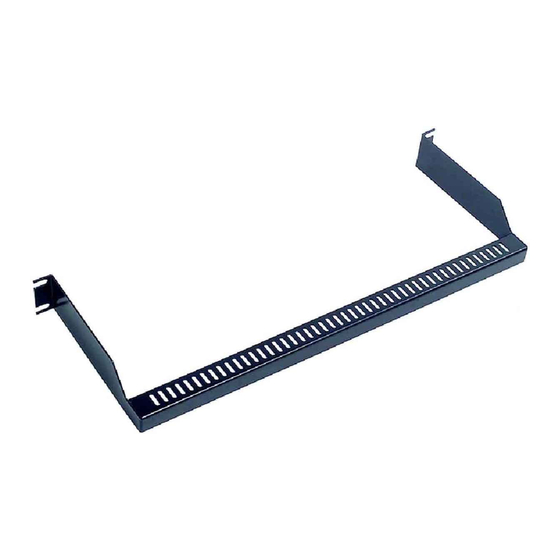

Back Cable Manager Kits 1933352–[ ] are used to
provide strain relief, support, and distribution of
cables in horizontal and vertical routing from the
patch panel. The cable manager is capable of
supporting loads associated with large diameter
cable. The cable manager is designed to be mounted
onto a standard 483–mm [19–in.] Electronic
Industries Alliance (EIA) rack or equipment cabinet.
To obtain information on AMP NETCONNECT
products, contact your local CommScope
representative, PartnerPRO ™ Network Partner or visit
our website at www.commscope.com .

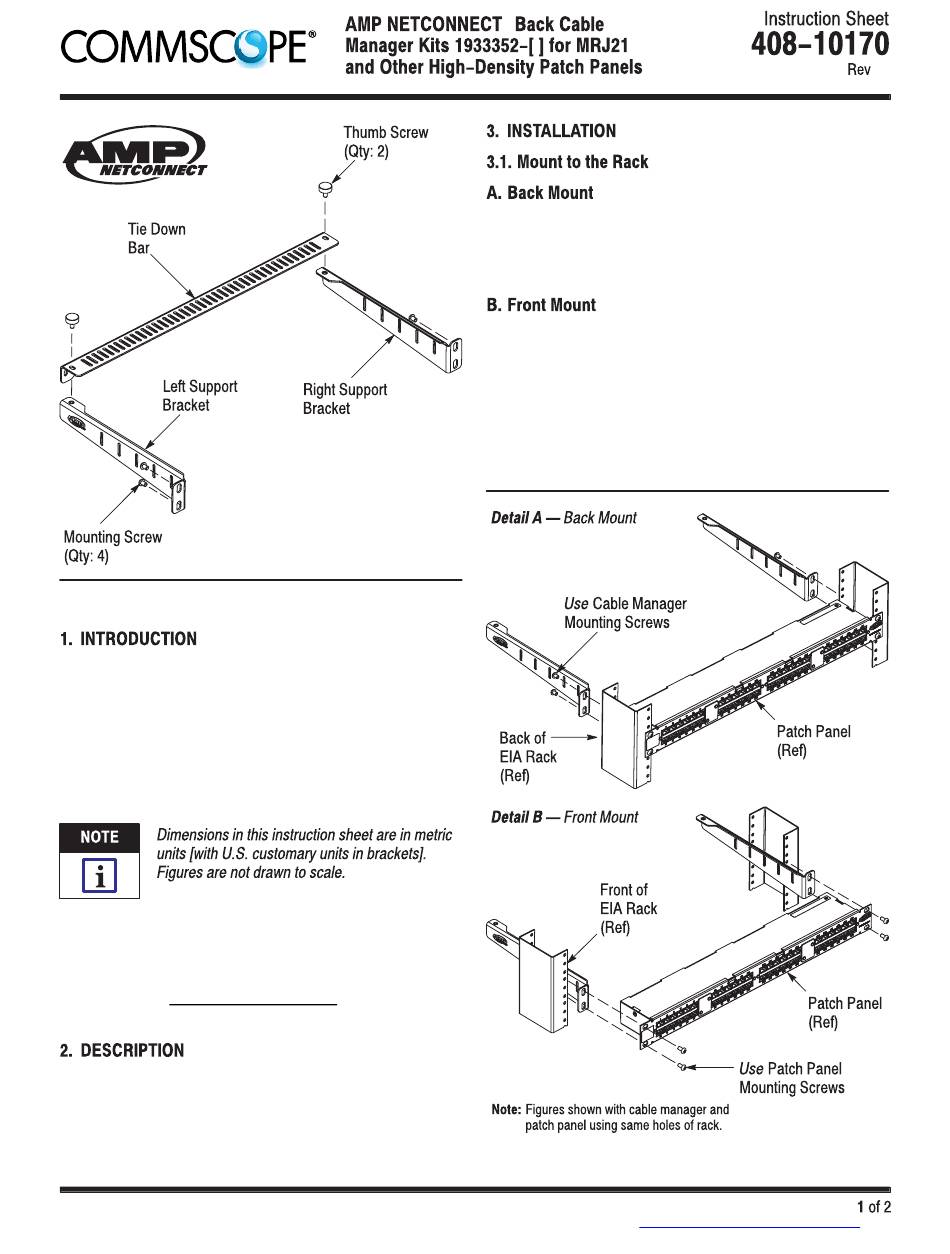

Each cable manager patch panel kit consists of a left
support bracket, right support bracket, tie down bar,
2 thumb screws, and 4 mounting screws. The tie
down bar and the brackets have slots for securing the
cable. Refer to Figure 1.
®
Align each bracket with the back of the rack so that
the short leg faces out. Secure the brackets with the
mounting screws included with the cable manager.
Refer to Figure 2, Detail A.
If the cable manager will be using the same holes of
the rack as the patch panel (as shown in Figure 2,
Detail B), the cable manager must be installed onto
the rack before the patch panel.
Align each bracket with the front of the rack so that
the short leg faces out. Secure the brackets and the
patch panel with the mounting screws included with
the patch panel. Refer to Figure 2, Detail B.
®
account
®
© 2016 CommScope, Inc.
All Rights Reserved
™
Oct. 2016
Figure 2
This product is covered by one or more U.S.
patents or their foreign equivalents. For patents, see
www.commscope.com/ProductPatent/ProductPatent.aspx
B
