Arai QUANTUM-X Operation Instructions Manual page 8

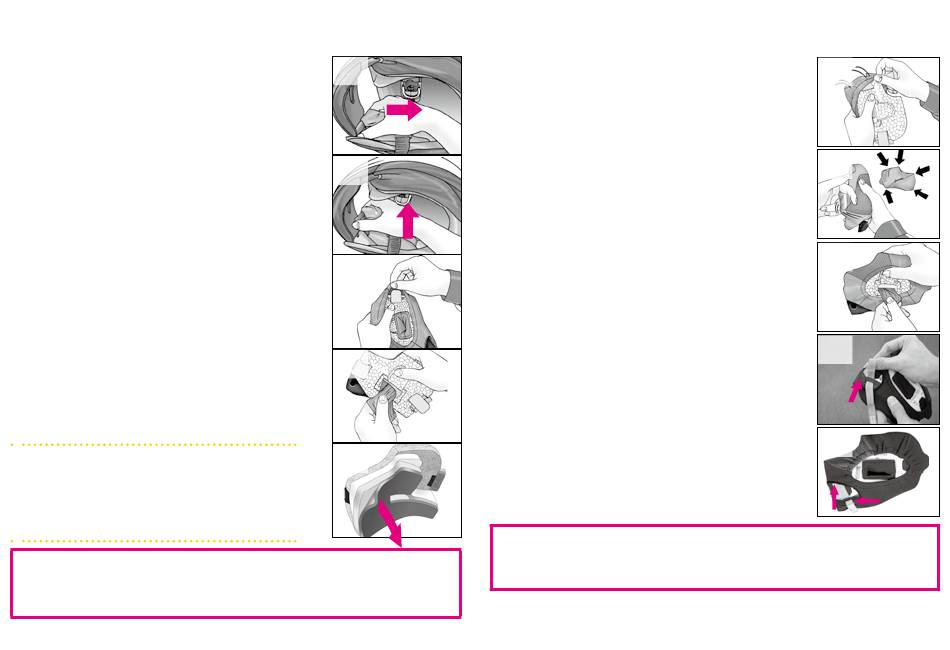

Pull the pad toward the rear of the helmet ②.
Then inward to release ③ and slide it off the strap.
To take off fabric covering for washing, peel the
covering off until all the fabric is on the face side
surface ④.
Then draw the covering through the opening by
grasping the rectangular collar to pull through the
pad ⑤.
NOTE:
The cheekpad is equipped with a
5mmsurface foam layer. The layer is removable
to offer a bit more room if desired. Gently
remove it from the pad. Once removed this foam
layer will not reattach securely ⑥.
WARNING: Never use petrol, thinner, benzene or any other solvents.
Even mild and seemingly harmless chemicals can cause damage over
a short period of time.
8
② To replace fabric covering, ensure it is turned
right side out, and stretch the covering over
pad ⑦.
Adjust the covering to lie smoothly ⑧.
③
Then push the rectangular collar through the
④
pad assembly and adjust into final position,
making sure it is not twisted ⑨.
If tab that says EMERGENCY TAB is drawn out,
⑤
draw back the strap of the tab until it stops at
the guide
Fold flat and cover the strap of the tab with the
⑥
fabric covering as shown
WARNING:
the guide on the cheekpad, as the strap loop may be caught by projecting
objects when riding.
⑩
.
⑪
.
Do not allow more than the tab of the strap to be exposed outside
⑦
⑧
⑨
⑩
⑪
