ALIBI ALI-TS2018VR Quick Installation Manual

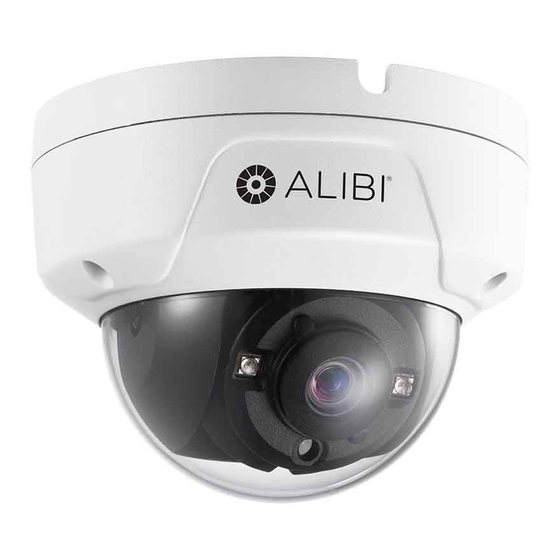

ALI-TS2018VR 8MP TVI/AHD/CVI/CVBS
120 ft IR Vandalproof Outdoor Dome
Camera Quick Installation Guide
The ALIBI ALI-TS2018VR dome camera include a 4 -in-1 switchable video output with an 8.29 MP sensor.
Features include:
8.29 Megapixel (3840 x 2160 pixels) high-performance CMOS sensor
•
Switchable video output for TVI, AHD, CVI, or CVBS
•
2.8 mm lens, 102.2˚ horizontal field of view
•
Low light 0.01 lux color illumination
•
Up-the-coax OSD menu,105 dB DWDR
•
EXIR 2.0 technology, smart IR, up to 120 ft IR distance
•
IP67 weatherproof, IK10 vandalproof
•
Flange adaptor for pendant mounting (ALI-AF4) and junction box mounting (ALI-AJ4) are available
•

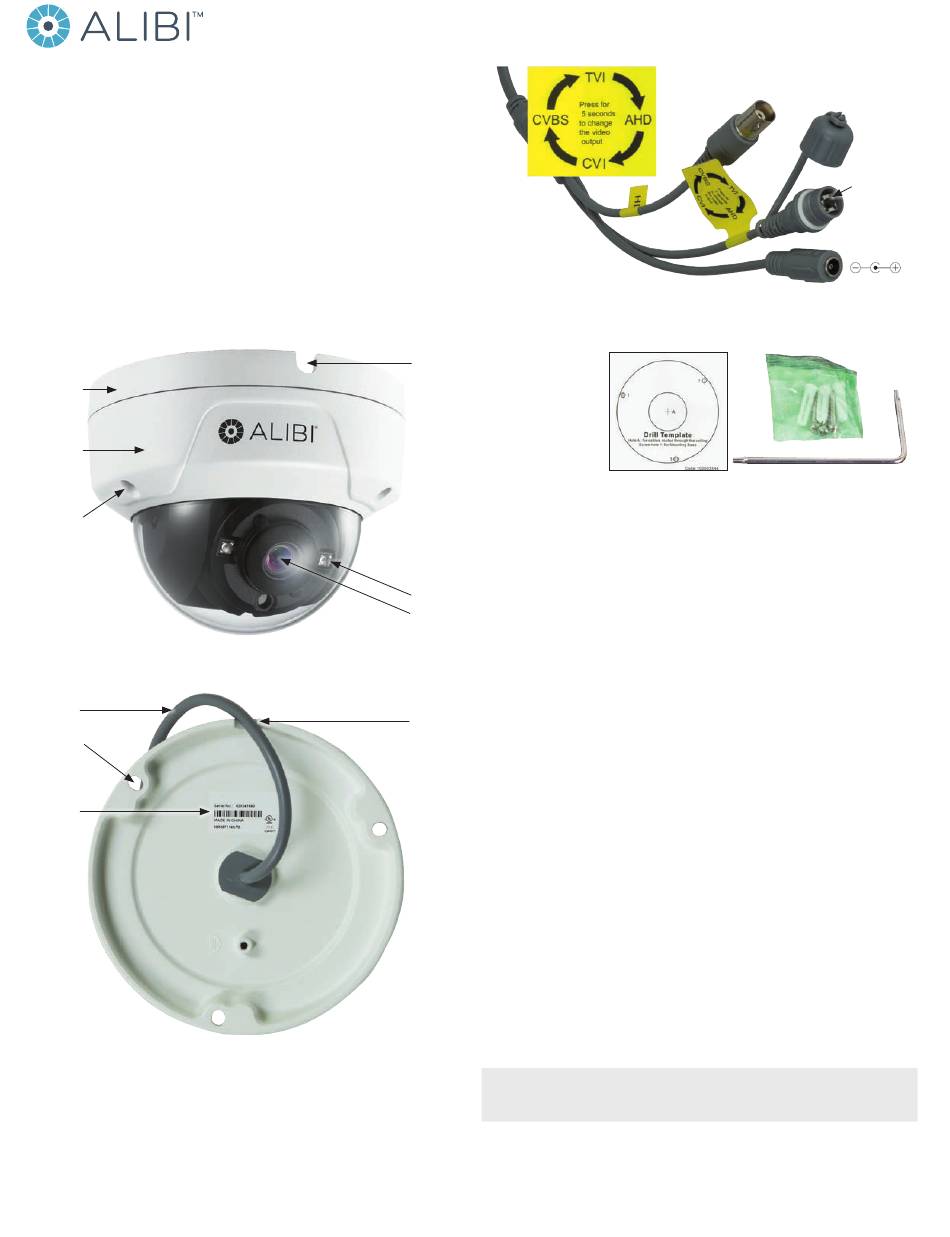

Mounting
base
Dome
assembly
Dome
assembly
screw (3)
Drop cable
Hole for
mounting
screw (3)
Product
label
Camera mounting surface
www.observint.com
1
* Press and hold switch button for 5 seconds to change the video format. See cable tag.
Cable What's in the box
guide
Camera assembly
•
Mounting hardware
•
Security L-wrench
•
This instruction guide
•
Drill template
•

Tools you need

To install the camera, you will need:
12 Vdc power source. See Specifications for requirements.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Video and power extension cable
•
IR LED
Lens

Installation

Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
IR Reflection Prevention: Avoid mounting the camera near reflective surfaces. The IR light from
•
the camera can reflect back into the lens. Do not remove the plastic cover until the cover is installation
Cable
is complete.
guide
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
—
cable.
Power connector: When applying Vdc power, observe the power polarity. See the drop cable
—
photo above for the connector polarity configuration.
Step 1. Mounting the camera
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
This camera can be installed using a pendant mounting bracket with flange adapter or junction
NOTE
box. Please refer to the instructions provided with those accessories for special considerations when
installing the camera with them.
1. Unscrew the three (3) dome assembly screws, and then separate the dome assembly from the
mounting base. The dome is tethered to the base with a strap. NOTE: To keep the lens assembly
clean, do not remove the plastic protective packaging applied to the lens at this time.
HD video BNC connector
12 Vdc power in
Camera drop cable connectors
Cleaning
Cap for
switch
button
Switch*
button
section.
