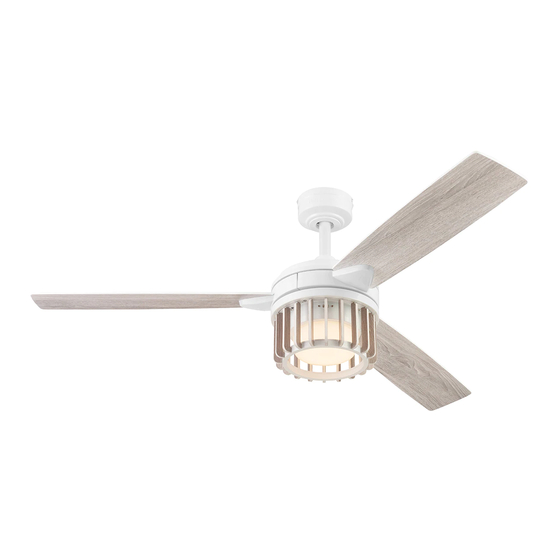

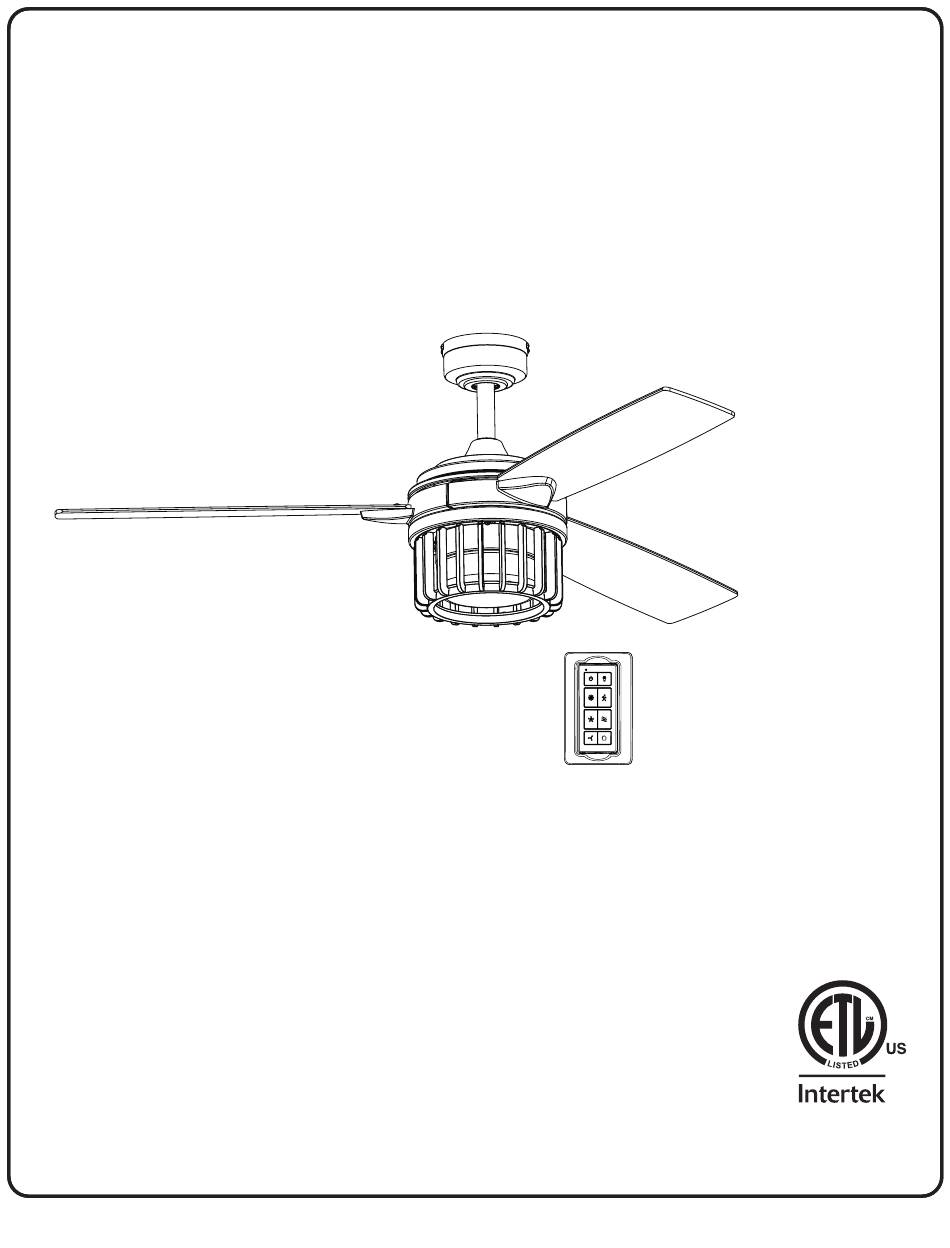

- Page 1 ELMHURST CEILING FAN Owner’s Manual Model #42224 Item #2599769 To obtain service, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday. 9689 • 090120...
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Mounting Bracket 13. Fitter Plate Screw (x4) 2. Canopy 14. Light Pan 3. Mounting Bracket Screw 15. Light Pan Screw (x3) (x4) 16. -
Page 3: Mounting Options
DIMENSION REFERENCE A. 16.46 in. B. 10.82 in. C. 9.53 in. D. 5.13 in. MOUNTING OPTIONS Two Mounting Options Angled Ceiling Mount (Up to 10 degrees) Downrod Mount Choose one of the following mounting options: Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (not included). - Page 4 SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan.
- Page 5 SAFETY INSTRUCTIONS WARNING: To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
- Page 6 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Remove the mounting bracket by removing the two Mounting Bracket Screw mounting bracket screws from the round holes in the canopy.
- Page 7 ASSEMBLY INSTRUCTIONS 5. Remove the downrod clip and downrod pin from the downrod. Then loosen but do not remove the two set screws in the yoke at the top of the motor assembly. Downrod Clip Set Screw Downrod Yoke 6. Insert the downrod through the canopy and yoke cover.
- Page 8 ASSEMBLY INSTRUCTIONS 9. Use wire connectors and push-in connectors to connect Push-in Connector the receiver and fan wires to the supply wires from outlet Black (hot/power) box according to the wiring diagram and the following instructions: White (neutral) • Connect the Green wires from the fan and the mounting bracket to the Bare/Green (ground) supply wire.
- Page 9 ASSEMBLY INSTRUCTIONS 12. Install the blade arm to the underside of the motor assembly with previously removed motor screws. Tighten each blade arm completely before moving to the next. Blade Arm Motor Screw Fitter 13. Remove one of the four fitter plate screws Plate preassembled to the fitter plate and loosen the other three but do not remove.
- Page 10 ASSEMBLY INSTRUCTIONS 16. Loosen all four and completely remove one of the cage screws preassembled to the light pan. Then lift the keyhole slots in the light cage over the loose cage screws and turn in a clockwise direction. Reinstall the previously removed cage screw and tighten all screws.
- Page 11 OPERATING INSTRUCTIONS LED Indicator 1. To operate the fan using the remote, press and release Fan Off the following buttons: Fan Off - Turns the power to fan off. Light Control Light Control- Turns the light on and off. Press and hold High Speed to dim or brighten lights (for dimmable bulbs only).
-
Page 12: Replacement Parts
OPERATING INSTRUCTIONS 4. Using a ceiling fan will allow you to raise your Reverse Switch thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort. In warmer weather, push the reverse switch left to display a sun icon, which will result in downward airflow creating a wind chill effect. -
Page 13: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-706-3267, 8 a.m. -
Page 14: Limited Lifetime Warranty
1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday. Model Name: Elmhurst Ceiling Fan Model No: 42224 - White Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
