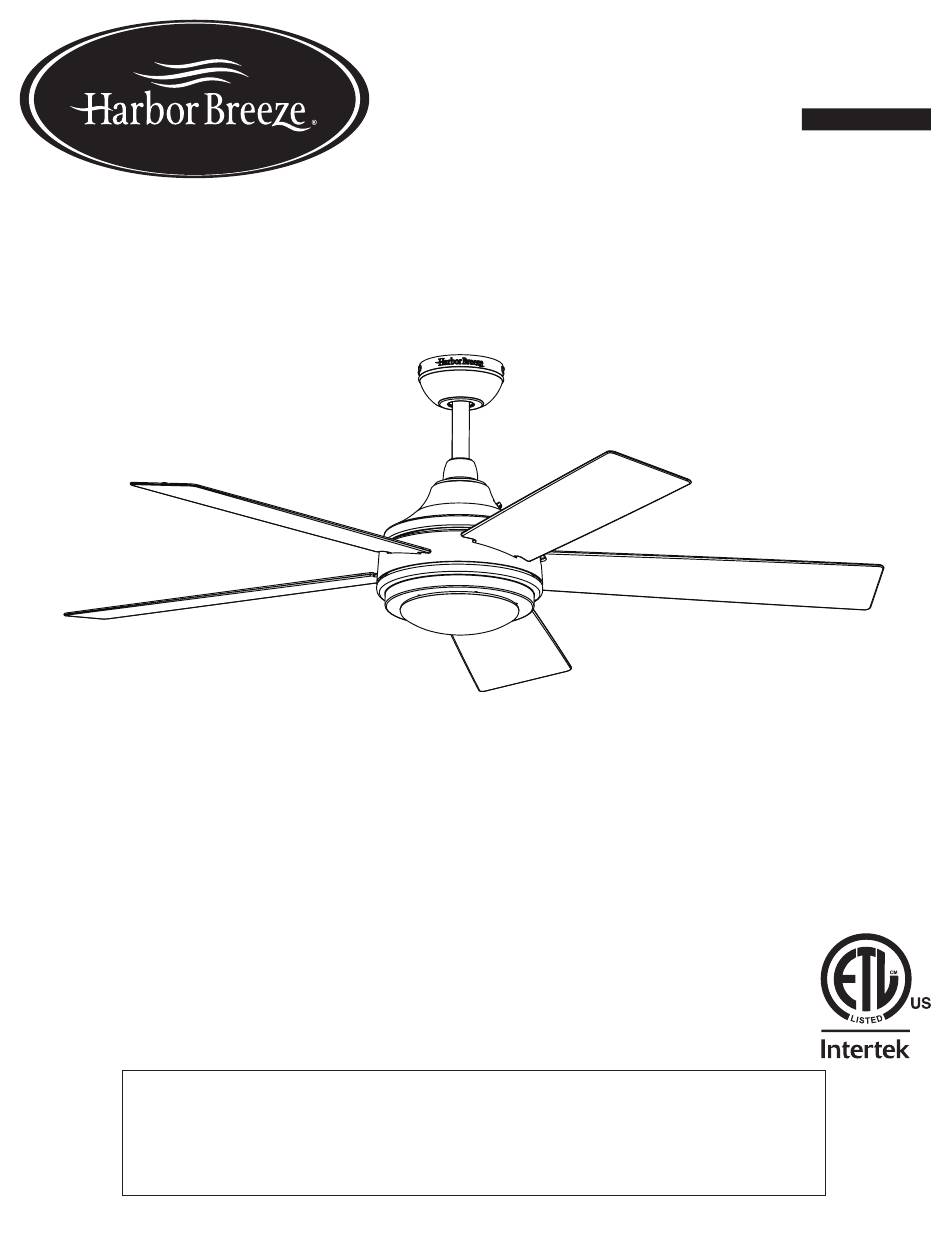

HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Purchase Date _________________________
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at ascs@lowes.com.
ST24019
SEAHOLME CEILING FAN
1
ITEM #2599790/5737477
MODEL #42225/43390
ATTACH YOUR RECEIPT HERE
Spanish p. 21
RATED FOR
WET
LOCATIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEAHOLME 42225 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harbor Breeze SEAHOLME 42225

Summary of Contents for Harbor Breeze SEAHOLME 42225

  • Page 1 ITEM #2599790/5737477 MODEL #42225/43390 SEAHOLME CEILING FAN Spanish p. 21 ATTACH YOUR RECEIPT HERE HARBOR BREEZE and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. RATED FOR LOCATIONS Purchase Date _________________________ Thank you for purchasing this HARBOR BREEZE product.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents ..............3 Hardware Contents .

  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to Downrod [A]) Downrod Clip (preassembled to Downrod [A]) Mounting Bracket (preassembled to Canopy [E]) Canopy Canopy Cover (preassembled to Canopy [E]) Motor Assembly Fitter Plate (preassembled to Motor Assembly [G]) Fitter Plate Screw (preassembled to Fitter Plate [H]) Light Kit Yoke Cover...

  • Page 4: Hardware Contents

    HARDWARE CONTENTS (shown actual size) Wire Connector Blade Screw Blade Washer Qty. 3 Qty. 15 Qty. 15 + 1 extra + 1 extra + 1 extra...

  • Page 5: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199.

  • Page 6: Preparation

    SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are secured.

  • Page 7: Initial Installation

    INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Standard mounting is best suited for ceilings 8 ft.
  • Page 8 INITIAL INSTALLATION 4. Loosen all four preassembled mounting bracket screws (P), and completely remove the two mounting bracket screws (P) from the round holes of canopy (E). Set aside for later use. Turn the canopy in a counterclockwise direction. Detach mounting bracket (D) from canopy (E) 5.

  • Page 9: Standard Or Angle Mounting Instructions

    STANDARD OR ANGLE MOUNTING INSTRUCTIONS 1. Remove the downrod clip (C) and downrod pin (B) from the downrod (A). Then partially loosen the set screws (Q) in the yoke at the top of the motor assembly (G). 2. Insert the downrod (A) through the canopy (E) and yoke cover (K).
  • Page 10 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 4. Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested you do so in the following manner: Take the lead wires and make sure you have pulled them all the way through the top of the downrod.

  • Page 11: Wiring

    WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.

  • Page 12: Final Installation

    FINAL INSTALLATION 1. Align the canopy (E) over the loose mounting bracket screws (P) preassembled on mounting bracket (D). Place the keyholes of the canopy (E) onto the mounting bracket screws (P) and rotate the canopy (E) clockwise. Keyhole 2. Secure the canopy (E) with the mounting bracket screws (P) previously removed (Step 4, page 8).
  • Page 13 FINAL INSTALLATION 4. Remove one and loosen the other two fitter plate screws (I) but do not remove from fitter plate (H). Feed the single-pin connector through center hole in light pan. Align the two key slots in the light pan (N) with the loosened fitter plate screws (I).
  • Page 14 FINAL INSTALLATION 7. If desired, the mounting bracket in remote pack (R) Mounting Bracket can be installed to a wall using the provided mounting screws. The remote from remote pack (R) can be stored in the mounting bracket for easy access. Mounting Screw Mounting...

  • Page 15: Operating Instructions

    OPERATING INSTRUCTIONS 1. Remove the battery cover from the back of the remote Remote found in remote pack (R). Insert the battery from remote pack (R) into the remote; ensuring the polarity of the LED Indicator battery matches the polarity indicated in the battery compartment -- positive (+) to positive (+) and negative (-) to negative (-).
  • Page 16 OPERATING INSTRUCTIONS 3. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your Reverse Switch thermostat setting in winter without feeling a difference in your comfort. In warmer weather, push the reverse switch to the left which will result in downward airflow creating a wind chill effect (Fig 3a).

  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. Total fixture wattage is 21 watts;...
  • Page 18 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. The blades and/or blade arms 1. Check and tighten all screws that hold are loose. the fan blades to the blade arms and the blade arms to the motor. 2. The blades are unbalanced. 2.

  • Page 19: Limited Lifetime Warranty

    LIMITED LIFETIME WARRANTY Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.

  • Page 20: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at ascs@lowes.com. PART DESCRIPTION 2599790 5737477 COVERED PART # PART # UNDER WARRANTY Downrod 4L000014370 4L000019060...
