AS21025

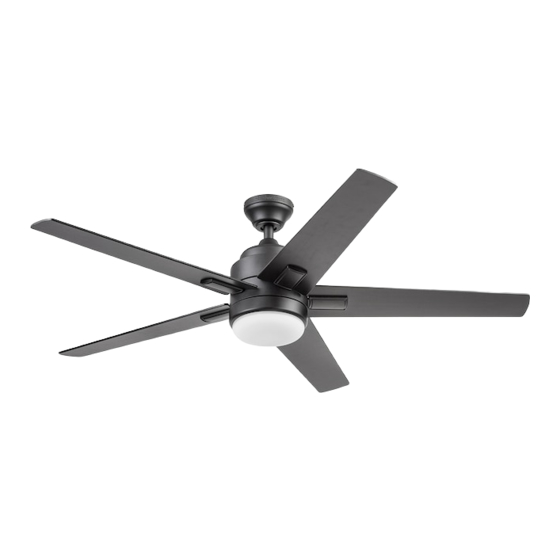

FLANAGAN CEILING FAN

ITEM #3786967

MODEL #42461

Español p. 20

Table of Contents

Need help?

Do you have a question about the FLANAGAN and is the answer not in the manual?

Questions and answers

Summary of Contents for Harbor Breeze FLANAGAN

Page 1 ITEM #3786967 FLANAGAN CEILING FAN MODEL #42461 Español p. 20 HARBOR BREEZE and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Purchase Date _________________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-251-1003, 8 a.m.
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents ..............3 Hardware Contents .
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to the Downrod [A]) Downrod Clip (preassembled to the Downrod [A]) Mounting Bracket (preassembled to Canopy [E]) Canopy Canopy Cover (preassembled to Canopy [E]) Yoke Cover Motor Assembly Set Screw (preassembled to the Motor Assembly [H]) Mounting Bracket Screw (preassembled to the Mounting Bracket [D]) Fitter Plate (preassembled to the Motor Assembly [H]) Fitter Plate Screw (preassembled to the Fitter Plate [K])
Page 4: Hardware Contents
HARDWARE CONTENTS (shown actual size) Wire Connector Blade Screw Blade Washer Motor Screw Qty. 3 Qty. 15 Qty. 15 Qty. 15 + 1 extra + 1 extra + 1 extra + 1 extra...
Page 5: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199.
Page 6: Preparation
SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are secured.
Page 7: Initial Installation
INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Standard Mounting is best suited for ceilings 8 ft.
Page 8 INITIAL INSTALLATION 4. Loosen all four preassembled mounting bracket screws (J), then completely remove the two mounting bracket screws (J) from the round holes of canopy (E). Set aside for later use. Turn the canopy in a counterclockwise direction. Detach mounting bracket (D) from canopy (E). 5.
Page 9: Standard Or Angle Mounting Instructions
STANDARD OR ANGLE MOUNTING INSTRUCTIONS 1. Remove the downrod clip (C) and downrod pin (B) from the downrod (A). Then partially loosen the set screws (I) in the yoke at the top of the motor assembly (H). Yoke 2. Insert the downrod (A) -- or a longer downrod (not included), if required -- through the canopy (E) and yoke cover (G).
Page 10 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 4. Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested you do so in the following manner: Take the lead wires and make sure you have pulled them 8 in.
Page 11: Wiring
WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
Page 12: Final Installation
FINAL INSTALLATION 1. Align the canopy (E) over the loose mounting bracket screws (J) preassembled on mounting bracket (D). Place the keyholes of the canopy (E) onto the mounting bracket screws (J) and rotate the canopy (E) clockwise. 2. Secure the canopy (E) with the mounting bracket screws (J) previously removed (Step 4, page 8).
Page 13 FINAL INSTALLATION 4. Insert blade arm (R) through slot in the side of the motor assembly (H). Align the holes of one blade arm (R) with three motor screw holes in underside of the motor assembly (H). Secure with three motor screws (XX).
Page 14 FINAL INSTALLATION 7. Attach the glass bowl (Q) to the light kit (O) by twisting the glass bowl (Q) tightly in a clockwise direction until it is secure. CAUTION: Avoid cross-threading the glass during installation. Improper installation could cause the glass bowl (Q) to be difficult to remove or fall, which could cause serious injury.
Page 15: Operating Instructions
OPERATING INSTRUCTIONS 1. To operate the fan using the remote, press and release the following buttons: Fan Off - Turns the power to fan off. LED Indicator Light On/Off - Turns the light on and off. Press and Fan Off hold to dim or brighten lights (for dimmable bulbs Light On/Off only).
Page 16: Care And Maintenance
CARE AND MAINTENANCE At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. Total fixture wattage is 21 watts;...
Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. The blades and/or blade arms 1. Check and tighten all screws that hold are loose. the fan blades to the blade arms and the blade arms to the motor. 2. The blades are unbalanced. 2.
Page 18: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The manufacturer warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for a lifetime from the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser.
Page 19: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at partsplus@lowes.com or visit www.lowespartspluscom. PART DESCRIPTION PART# Downrod 4L000013340 Mounting Bracket 4L000006350 Canopy 4L000002120 Canopy Cover...
