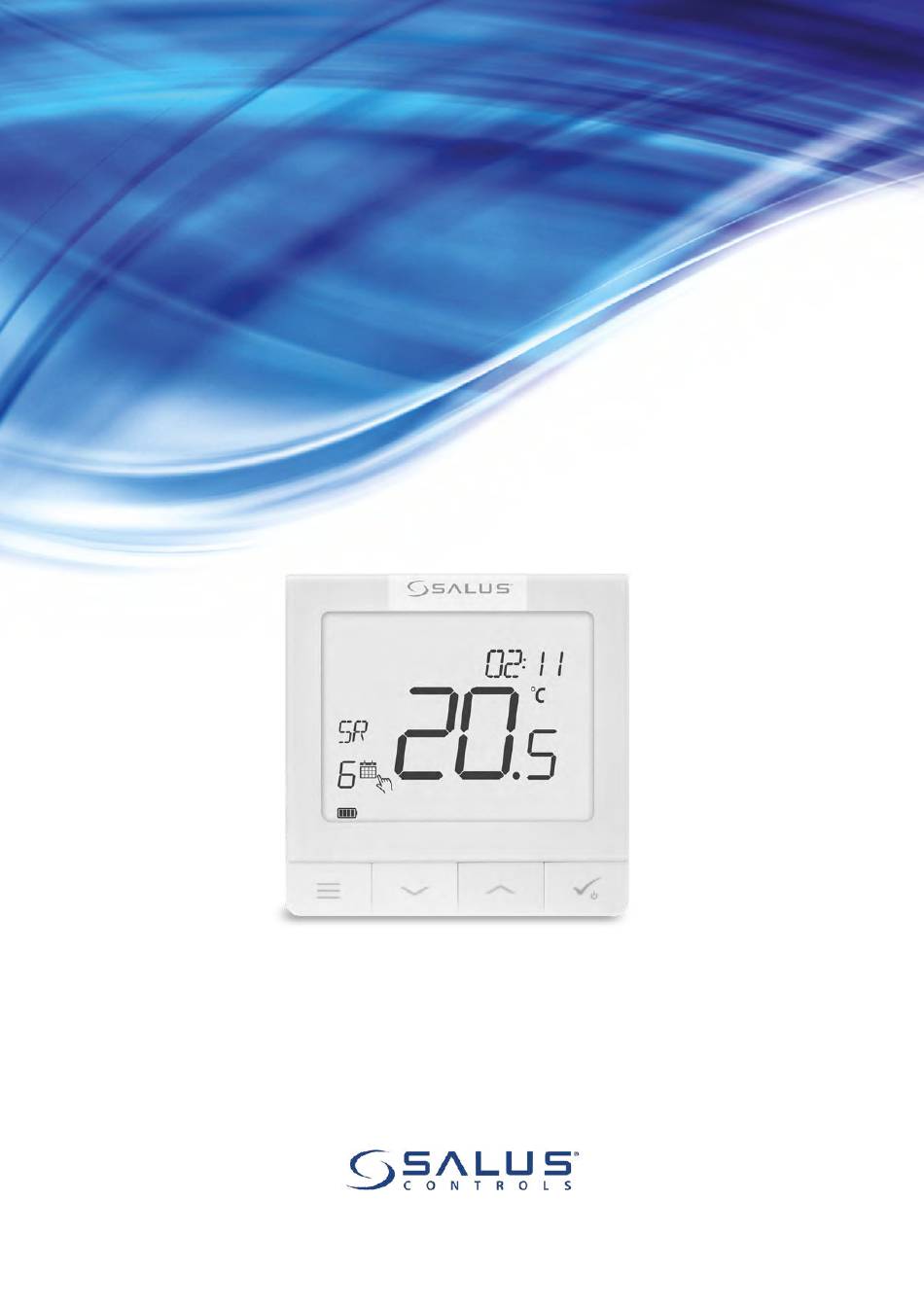

- Page 1 WQ610 THERMOSTAT - FULL USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ................................4 1.1 Product Compliance ..................................4 1.2 Safety Informations ..................................4 2. Product Overview ...............................5 2.1 Example of boilers compatible with the OpenTherm OT+ 4.0 protocol ..................6 2.2 Package content ....................................7 2.3 Proper thermostat location ................................7 2.4 Connection description ..................................8 I A - Boiler connection ................................8 I B - Pump / Valve connection ...............................8 3. -
Page 4: Introduction
1. Introduction 1.1 Product Compliance This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. 1.2 Safety Informations •... -
Page 5: Product Overview

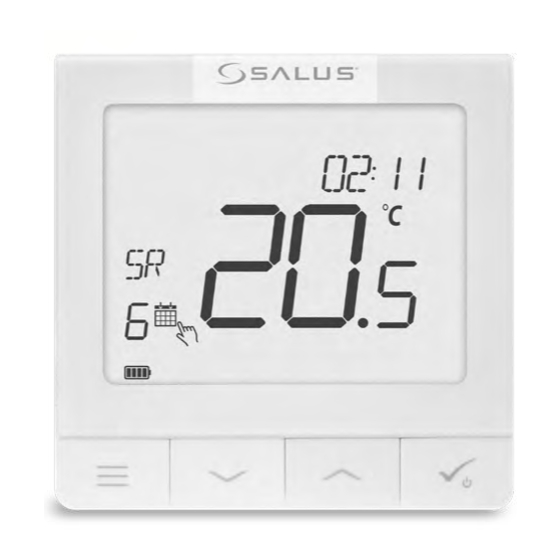

2. Product Overview The WQ610 room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the he- ating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached. -
Page 6: Example Of Boilers Compatible With The Opentherm Ot+ 4.0 Protocol
2.1 Example of boilers compatible with the OpenTherm OT+ 4.0 protocol COMPANY MODEL COMPANY MODEL E-Tec S Linea HE E-tec Plus Mynute A Vokera Alpha Heating E-tec Mynute HE Evoke Unica HE Intec GS Vitodens 100W Typ WB1A (Connection: X3.3 and X3.4) Vitodens 100W Typ WB1B (Connection: X21.1 and Atag iC Economiser... -
Page 7: Package Content
2.2 Package content 1) WQ610 2) Short instruction 3) Mounting screws 2.3 Proper thermostat location Please note: The ideal position to thermostat mounting is about 1,5m under floor level far from heating or cooling sources. Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft. -
Page 8: Connection Description
2.4 Connection description I A - Boiler connection (ON / OFF) OpenTherm AC 230V AC 230V AC 230V AC 230V WQ610 WQ610 WQ610 WQ610 AC 230V AC 230V WQ610 WQ610 DO NOT connect to OpenTherm terminals unless your boiler is OpenTherm Association approved and has the OpenTherm Logo. -
Page 9: Before You Start (First Power Up)
3. Before you start (first power up) 3.1 LCD icon description 11 10 9 1. Menu/Settings description 8. Holiday mode indicator 2. Clock 24hr/AM/PM 9. Temporary override mode 3. Temperature unit 10. Settings icon 4. Heating indicator (icon is animating 11. -
Page 10: First Power Up Sequence And Configuration
3.3 First power up sequence and configuration After connecting to 230V power Using , choose the Using , choose your supply, the thermostat will power up. time format and then press language and then press Using , set the hour Using , set the year Using... -
Page 11: Operating
4. Operating 4.1 Setpoint temperature change (manual mode) In manual mode, the thermostat maintains a constant temperature set by the user. A hand icon is displayed when manual mode is active. Press to enter menu. Using , choose Using , choose parameter and then press MANUAL and then press Using... -
Page 12: Schedule Mode - Programming Schedule
4.2 Schedule mode - programming schedule In this mode, user can set the schedules for thermostat (temperature setpoints for specific periods of time). Programmed schedules should use all time periods. Press to enter menu. Using , choose Using , select the program parameter and then press type between: 5 + 2 (schedule for the working days and for the weekend) -
Page 13: Temporary Override Mode
4.3 Temporary override mode When thermostat is running schedule mode we can temporarily override it by setting new setpoint temperature. Using , set tempera- Thermostat works in temporary Confirm by button. ture during active schedule. override mode. PLEASE NOTE: To cancel temporary override mode and go back to the schedule hold button for 3 seconds. -
Page 14: Language
4.5 Language To choose language follow steps below: Press to enter menu. Using move Press to enter between parameters. language settings. Using choose your Press to confirm. Thermostat will go to the main language. screen with saving the changes. -
Page 15: Advanced Settings
4.6 Advanced settings In advanced settings user can set eg. temperature calibration, DST or PIN code etc. Remember that these are installer settings! Press to enter menu. Using move between Press . to enter parameters. advanced settings. Enter by button. 4.6.1 DST (Daylight Saving Time) setting When DST function is ON then thermostat will automatically change time in summer time period. -
Page 16: Display Temperature Accuracy
4.6.2 Display temperature accuracy Adjust the measured thermostat temperature display scale for about 0,5 °C or 0,1 °C. Please follow steps below: Press to enter menu. Using move between Using , choose parameters. Enter by button. parameter and then press 4.6.3 PIN Code Set PIN code to lock possibility to control the thermostat until you enter the code. -
Page 17: Service Alert
4.6.4 Service alert Set a service reminder on the thermostat that will warn the tenant when the boiler is due its annual service. Press to enter menu. Using move between parameters. Enter by button. Using , choose Using move between YES and then press parameters. -
Page 18: Optimum Start
4.6.5 Optimum Start The optimization function is an energy-saving algorithm used for efficient control of the heating device, ensuring better thermal comfort at certain times of the day. When the OPTIMUM START function is active, the thermostat sends a heating signal to the heat source beforehand so that the preset temperature in the room is reached at the time specified in the schedule. -
Page 19: Thermostat Temperature Calibration
4.6.7 Thermostat temperature calibration Thermostat calibration is a function which allows user to recalibrate internal thermostat’s temperature sensor by a given number of degrees (in the range from -3,5 °C to 3,5 °C). To calibrate thermostat’s temperature sensor please follow steps below: Press to enter menu. -
Page 20: Frost Protection Temperature
4.6.10 Frost protection temperature Set temperature for frost protection mode. Press to enter menu. Using move between Using , choose parameters. Enter by button. frost protection temperature value and then press 4.6.11 Control algorithm Set control algorithm: ITLC for radiators, SPAN (hysteresis) 0,5°C or SPAN (hysteresis) 0,25°C. ITLC is a self-learning, time-proportional control algorithm. -
Page 21: Holiday Mode
4.7 Holiday mode Holiday mode is a special program temperature setpoint which thermostat will maintain for specified days. During holiday mode thermostat is mainta- ining frost protection setpoint temperature. How to set HOLIDAY MODE: Press to enter menu. Using , choose Using , set parameter and then press... -
Page 22: Time/Date
4.8 Time/Date To set time/date follow steps below: Press to enter menu. Using , choose Using , choose parameter and then press the time format. Press confirm. Using , set the hour Using , set the year Using , set the month and then press and then press and then press... -
Page 23: Boost Hours - Hourly Temperature Override
4.9 BOOST hours - hourly temperature override The function is available only in AUTO and OFF modes. Used to change the temperature to the desired value for a specified number of hours (up to 9 hours). After the elapsed time, the thermostat returns to the previous operating mode. Press to enter menu. -
Page 24: Operating Mode
4.10 Operating mode Select operating mode for thermostat: Manual mode, AUTO mode or OFF. Using , choose Press to enter menu. Using , choose selected mode and then press parameter and then press Thermostat will work in selected mode (AUTO, Manual or OFF). -
Page 25: Factory Reset
5. Factory Reset To RESET WQ610 thermostat to it’s factory default settings please follow steps below: To reset the thermostat press and hold Using , choose Thermostat has been reseted. together buttons for 5 YES and then press seconds. It will display firmware version... -
Page 26: Error Codes
6. Error codes Thermostat will display errors only when it’s connected to the boiler by OPENTHERM terminals (A / B). Please refer then to boiler manual. Each boiler can have different error codes. ERRORS EXAMPLES: SERVICE REQUEST ERROR LOCKOUT RESET ERROR LOW WATER PRESSURE ERROR GAS FLAME FAULT ERROR... -
Page 27: Cleaning And Maintenance
7. Cleaning and Maintenance The WQ610 thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by Salus Controls or their appointed agents. -
Page 28: Warranty
9. Warranty SALUS CONTROLS warrants this product to be free from any defects in material or workmanship and to perform as specified for a period of five years from the date of installation. SALUS CONTROLS reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This product includes software that matches the distributor’s identification at the time of sale. - Page 30 SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Ver. 5 Issued: 04 V 2021 Soft version: 2.9...
