WQ610 / WQ610RF
Quick Guide
Introduction

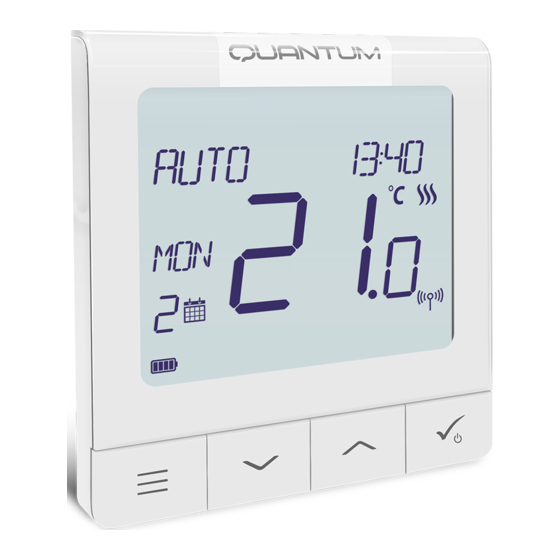

The SALUS Quantum WQ610 and WQ610RF thermostats are Boiler Plus compatible
thermostats, designed specifically to control central heating boilers and in the case of the RF
versions, electrical panel heaters also. They have our new load compensation (ITLC) software
with Volt free switch and also Opentherm 4.0 connections, so you can choose the method
of control to suit your boiler / installation. Please note that the Boilers need to have an
OpenTherm Association license to be fully compatible with WQ610 range (should you wish
to connect to the OpenTherm terminals A and B). Please verify if this requirement is met with
your Boiler Manufacturer.
Product Compliance
This product complies with the essential requirements and other relevant provisions of the
following EU Directives: RED:2014/53/EU and RoHS 2011/65/EU. Full text of the EU Declaration
of Conformity is available on: www.saluslegal.com WQ610RF: 2405-2480MHz; <14dBm
Safety Information
Use in accordance with national and EU regulations. Use the device as intended,
keeping it in a dry condition. Product is for indoor use only. Installation must be
carried out by a qualified person in accordance with national and EU regulations.
WARNING! Always ensure the AC mains power is switched off before
installing or working on any components.
Technical Specification
WQ610 Thermostat
Thermostat supply 230VAC Lithium Battery (Rechargable)
Thermostat rating max 3 (1) A -
OpenTherm terminals A / B -
Voltage free
Outputs -
NO / COM terminals
Temperature range 5°C – 35°C 5°C – 35°C
Thermostat display accuracy 0.5°C
ErP control class Class V Class V
Radio Frequency -- 2.4 GHz
Dimension [mm] 86 x 86 x 27 [mm] 86 x 86 x 11[mm]
WQ610 Receiver
Receiver supply 230 V AC
Receiver rating max 16 (5) A
OpenTherm terminals A / B
Outputs Voltage free NO / COM terminals
Radio frequency 2.4 GHz
Dimension [mm] 98 x 98 x 32[mm]
LCD Icon Description
13
12
11
10 9 8 7 6
1. Menu/Settings description 7. Holiday mode indicator
2. Clock 24hr/AM/PM 8. Temporary override mode
3. Temperature unit 9. Settings icon
4. Heating indicator (icon is animating 10. Battery indicator
when there is heating demand) 11. Schedule program number
5. RF Connection indicator 12. Schedule mode icon
6. Current Temperature / Setpoint 13. Day indicator/ SET information
Temperature
Button Functions
WQ610 / WQ610RF Thermostat
WQ610RF Thermostat
0.5°C
2
1
1. MENU - enter the menu options, press and hold
for 3 seconds to return to main screen without
saving changes.
2. DOWN - decrease the temperature and move
through the menus.
3. UP - increase the temperature and move through
the menus.
4. TICK - confirm changes and enter menus.
Press and hold for 3 seconds to exit User Menu
and save changes. Press and hold to cancel
BOOST feature or temporary override (whilst in
normal screen).
WQ610RF: Pairing with the Receiver
1
1
2
3
ON
4
AUTO
1
5
Turn the receiver OFF and
ON twice to reset. Ensure
receiver switches are ON and
AUTO. Red LED should be
flashing. Enter thermostat
MENU and scroll down until
you see the "PAIR WITH
RECEIVER" option. Select YES
to proceed with Pairing.
WQ610RF Receiver
5 6
7 8
3
4
5. ON - When in Manual Mode, ON will
turn the boiler on.
6. OFF - When in Manual Mode, OFF
will turn the boiler off.
7. AUTO - Receiver operates in automatic
mode according to the thermostat.
8. MANUAL - Receiver output is
controlled by the On/Off slide switch.
The pairing between the thermostat and the receiver is
already done at the factory. However, should you need
to re-pair the units then this can be done using the User
Menu. The link may also be tested from the User Menu
to show pairing link has been successful. Before pairing,
the receiver should be unplugged, then plugged back in.
During the pairing process, the distance between the
Thermostat and the receiver should be at least 1m.
2
3
Now your thermostat is Upon connecting to the
looking for the receiver. A 10 receiver, the thermostat will
minute counter will appear on display the message "PAIRING
the screen. SUCCESSFUL" and return to
normal operation afterwards.
The red LED will stop flashing
when the pairing is successful.
