M O T O R I Z E D C H A N G E - O V E R A N D T R A N S F E R S W I T C H E S , O T M _ C
G
OTS2500 1S
T
G
OTS4000 1S
T
1
2
G
OTS2500 1L
T
G
OTS4000 1L
T
1
2

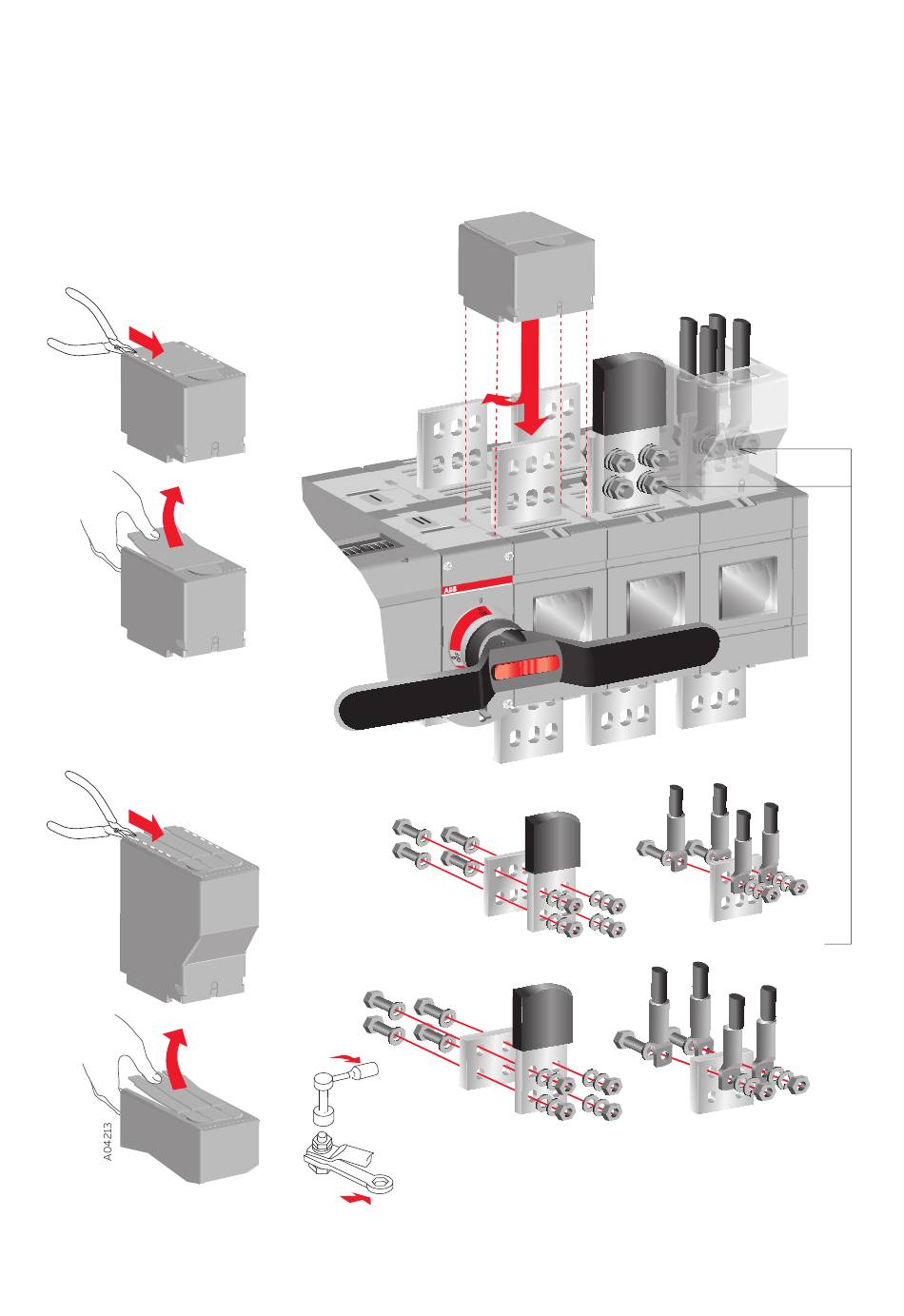

Figure 10.9 Mounting of the terminal shrouds (type OTS_ ) to the motorized change-over switches
OTM2000-2500_C_ , OTM3200_C_
OTM2000-2500E_C_
OTM3200E_C_
M
M12
50...75 Nm
443-664 lb.in
M
3
4
