M OTO R I Z E D C H A N G E - O V E R A N D T R A N S F E R S W I TC H E S , OT M _ C
—
11.1 Phase barriers OTB_
Phase barriers or shrouds (see section 8.3) must be used to maintain a clearance of 1 inch on the motor-
ized change-over switch types: OTM600U_C_, if the conductors are wider than 39 mm /1.54 in (phase
barrier 68838) on OTM800-1200U_C_, if the lugs are wider than 54 mm /2.13 in (phase barrier 68912).
Phase barriers 68912 must be used on motorized change-over switches types OTM1000-2500_C_ if the
voltage is > 415 V Phase barriers CXBY69470 must be used on OTM3200E_C.
The types for the package of 6 barriers are:
68838 = OTB800/6C
68912 = OTB1600/6C
CXBY69470= OTB4000/6C.

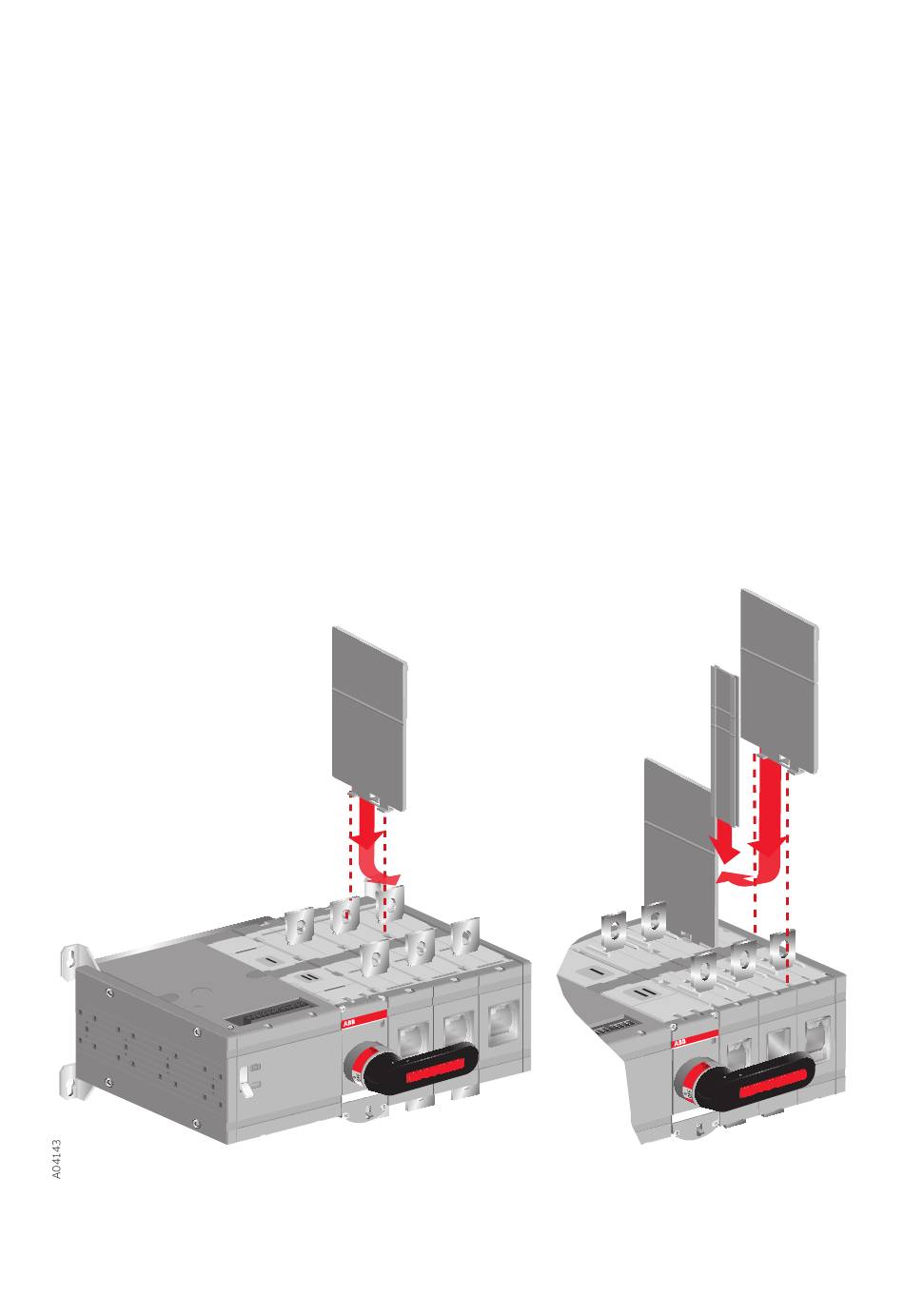

Figure 11.1 OTM600U_C, OTM800-1200U_C_ , OTM1000-2500E_C_ and OTM3200E_C_
mounting of phase barriers
1
2
M M M M
M a n .
M a n . M a n .
45
3
4
5
