10.3 Voltage sensing connectors OMZB_

OT160-250_C_
OMZB1_
OT315-400_C_
OMZB2_
1 2 3
6,3x0,8
2
OT630-800E_C_
OMZB3_
OT600U_C_
1
a
3
4
b
6,3x0,8
2 3
OT1000-2500E_C_
OMZB4_ 6,3x0,8
OT800U_C_
OT3200E_C_
1
4

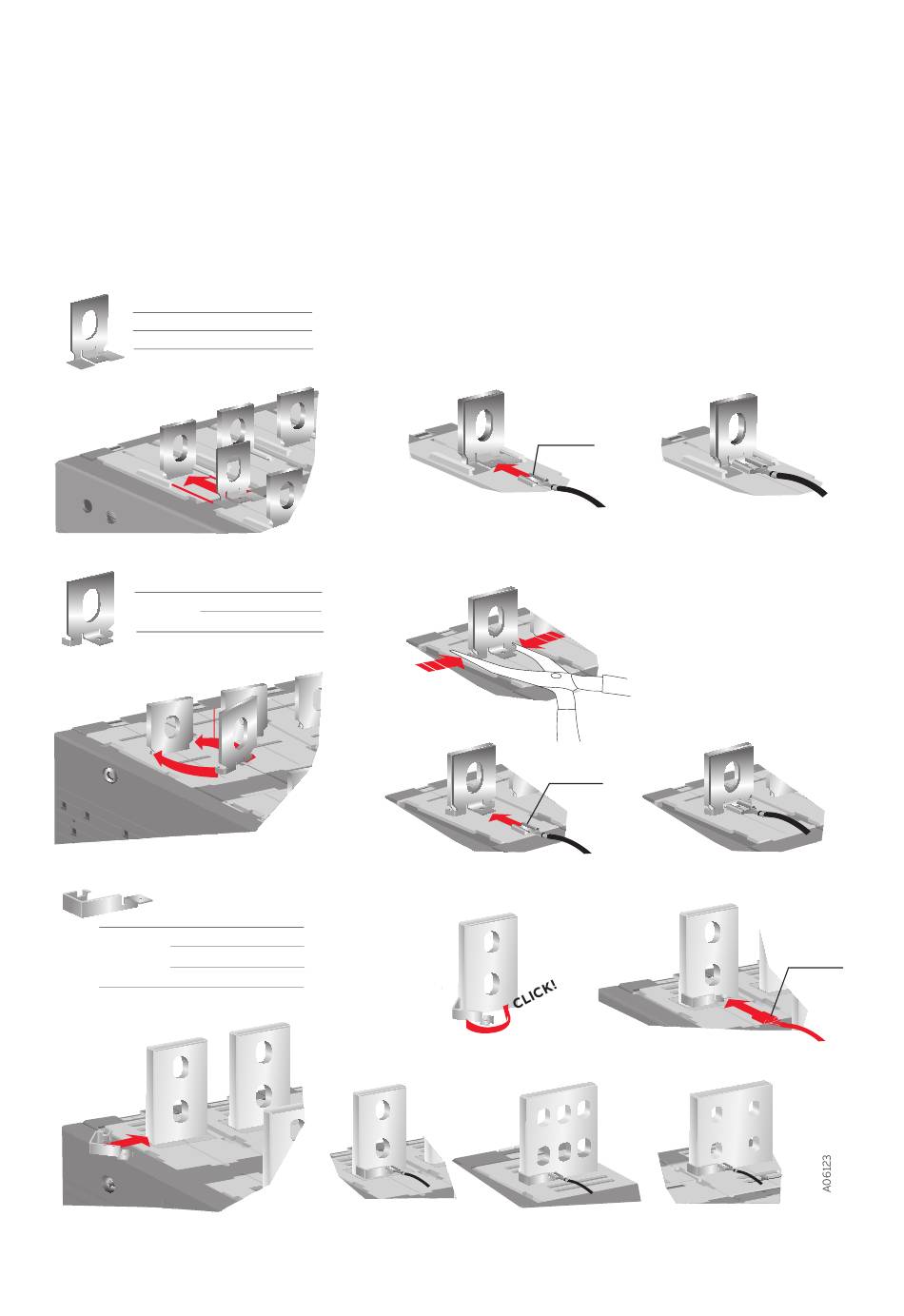

Figure 10.6 Mounting of the voltage sensing connectors, type OMZB_
