Memmert SV1524 Operating Manual

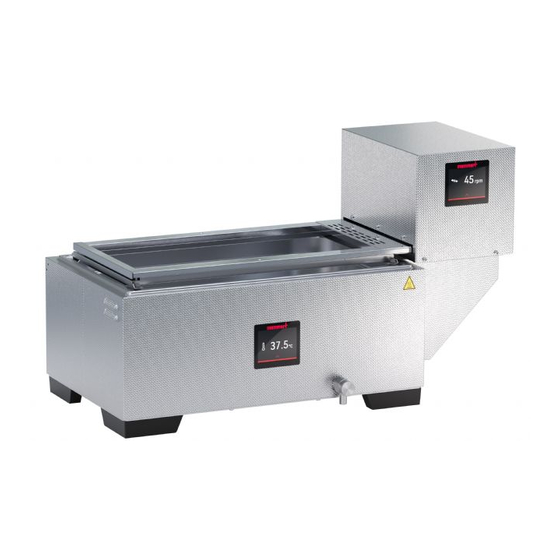

Accessories for wtb water baths (shaking device, pumping device, cooling unit)
Hide thumbs Also See for SV1524:
Table of Contents

Advertisement

Quick Links

Operating manual
SV
CPM
CDP
Shaking device SV1524 | SV3550
Pumping device CPM650
Cooling unit CDP115
Translation of the original operating manual
www.memmert.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV1524 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Memmert SV1524

Summary of Contents for Memmert SV1524

  • Page 1 Operating manual Shaking device SV1524 | SV3550 Pumping device CPM650 Cooling unit CDP115 Translation of the original operating manual www.memmert.com...
  • Page 2 The current ver- sion of this operating manual in PDF format is also available for download from http://www.memmert.com/ Manufacturer address and customer service MEMMERT GmbH + Co. KG Customer service: Willi-Memmert-Str. 90-96 Hotline: +49 (0)9171 9792 911 D-91186 Büchenbach...

  • Page 3: Table Of Contents

    Content 1. Safety Terms and signs used .................................... 4 Product safety and dangers ................................... 5 Requirements of the operating personnel .............................. 5 Responsibility of the owner ..................................6 Applied directives and standards ................................6 Changes and alterations ..................................6 Behaviour in case of malfunctions and irregularities ..........................6 Switch off in an emergency ..................................

  • Page 4: Safety

    Safety Safety Terms and signs used In this manual and on the appliance itself, certain common terms and signs are used to warn you of possible dangers or to give you hints that are important in avoiding injury or damage. Observe and follow these notes and regulations to avoid accidents and damage.

  • Page 5: Product Safety And Dangers

    Safety Product safety and dangers The accessories are technically sophisticated, manufactured using high-quality materials and tested for many hours in the factory. They reflect the state of the art and comply with recognised technical safety regulations. However, there are still risks involved, even when the appliances are used as intended. These are described below.

  • Page 6: Responsibility Of The Owner

    Changes and alterations The accessories may be used only in connection with a Memmert water bath WTB. The accessories must not be converted or modified without authorisation. No parts may be added or inserted which have not been approved by the manufacturer.

  • Page 7: Switch Off In An Emergency

    Safety Switch off in an emergency Press the main switch on the respective accessories. This disconnects the appliance from the power supply at all poles. Illustration Accessories Shaking device - SV Cooling unit - CDP115 Pumping device - CPM650 06/2021...

  • Page 8: Sloping And Flat Lids

    Sloping and flat lids Sloping and flat lids CAUTION You may suffer bruising injuries to your hands. Always wear protective gloves. Do not let the mounted slanted or flat lid of the water bath fall shut. CAUTION Note that the slanted or flat lid heats up to the temperature control liquid temperature during operation.
  • Page 9 Sloping and flat lids 2.1.1 Assembly 1. Loosen the blind plugs at the fastening points (left + right) for the lid on the water bath. 2. Remove the dummy plug and store it. 3. Put on the fastening bracket of the cover and fix it with screws. 4. Tighten screws and check that the lid fits tightly. 06/2021...

  • Page 10: Flat Lid

    Sloping and flat lids Flat lid The flat lid, available as an accessory, can be used to place test flasks on the surface of the temperature control liquid. By removing or inserting rings, the recesses are adapted to the piston size. The rings may only be inserted or removed when they have cooled down.

  • Page 11: Test Tube Racks

    Test tube racks Test tube racks The test tube racks differ in the number and diameter of the individual bores. They are hooked into the water bath from above. The test tube racks may only be inserted or removed when they have cooled down. Ø...
  • Page 12 Test tube racks Ø Bores WTB6 / WTB11 WTB15 / WTB24 WTB35 / WTB50 44 bores 76 Bores 100 Bores Ø18mm B48836 B48837 B50663 18 Bores 34 bores 44 bores Ø21mm B48830 B48831 B50660 14 Bores 22 bores 30 bores Ø32mm B48832 B48833...

  • Page 13: Shelf Reversible

    Shelf reversible Shelf reversible Maximum loading of the waterbaths with reversible shelf Size WTB Maximum Loading WTB 6/11 25 kg WTB 15/24 50 kg WTB 35/50 100 kg Conversion of reversible shelf 1. Reversible shelves can be set to two heights: 60mm and 30 mm 60 mm 2. Unscrew screws to remove feet 3. Remove feet and rotate depending on desired height (in this case 30mm)
  • Page 14 Shelf reversible 4. Position rotated feet on holders of floor grate and fix with screws 5. Reversible shelf now has a height of 30 mm 30 mm 06/2021...

  • Page 15: Shaking Device

    5.1.3 Intended use The Memmert shaking device is intended exclusively for a Memmert water bath WTB15, WTB24, WTB35 or WTB50. It is used for the controlled back and forth movement of samples at 30 to 150 rpm (strokes per minute), with one of approx. 15mm. The sample holder is in direct contact with the temperature control medium.
  • Page 16 Shaking Device 5.1.5 Material The shaker complies with the current requirements of the RoHS Directive. You can find more information on this and material compliance on our homepage: https://www.memmert.com/de/downloads/ Components Material Shaking Device Stainless steel 1.4301 - ASTM 304 Support basket Stainless steel 1.4301 - ASTM 304...
  • Page 17 Shaking Device 5.1.8 Designation (nameplate) Description Overview Type designation Operating voltage Typ: SV1524 F-Nr.: P321.0001 ~ 230 V 50/60 Hz 0,1 A 8 W Protection type CE conformity Schutzart DIN EN 60529 - IP 20 Address of manufacturer Disposal note memmert GmbH+Co.KG...
  • Page 18 Shaking Device 5.1.10 Ambient conditions Ambient temperature +5 °C to 40 °C Air humidity max. 80 % rh (non-condensing) Overvoltage category Pollution degree Altitude of installation max. 2,000 m above sea level AC 115 (+/– 10 %) Maximum mains voltage fluctuations AC 230 (+/–...

  • Page 19: Delivery, Transport And Setting Up

    Shaking Device Delivery, Transport and Setting Up 5.2.1 Safety WARNING Condensation in the electrical components may cause short circuits. After transporting or storing the appliance under humid conditions, remove it from its pack- aging and let it ventilate for at least 24 hours in normal ambient conditions. Do not connect the appliance to the mains power during this time.
  • Page 20 Shaking Device 5.2.5 Setting up CAUTION The appliance may fall from the installation location due to unevenness and injure you or someone else. Always place the appliance on an even, load-bearing and non-slip sur- face. CAUTION The surfaces of the appliance can overheat during operation and overheat heat-sen- sitive surfaces in close proximity to the appliance.
  • Page 21 Shaking Device 5.2.6 Assembly shaking device 1. Loosen the blind plugs at the fixing points (on the side) for the shaking device on the water bath. 2. Place the holding frame on the side of the water bath and fix it with screws. 3. Place the shaking device on the water bath frame from above.
  • Page 22 Shaking Device 4. Fix the shaking device to the mounting frame with screws. 5. The support basket is inserted into the shaking device and fixed with knurled screws. 6. Insert the support basket from above into the holders of the shaking device. 7. Fix the support basket to the shaker with knurled screws. 06/2021...

  • Page 23: Putting Into Operation

    Shaking Device Putting into operation 5.3.1 Putting into operation for the first time NOTICE When putting into operation the accessories for the first time, please do not leave them unattended until they have reached a steady state. 5.3.2 Connect the appliance to the power supply Place the power cable so that ■...
  • Page 24 Shaking Device WTB size Filling level min. 4 cm min. 2 cm NOTICE Depending on the loading of the shaking device and the selected shaking frequency, the water bath filling may spill over. Here, the shaking frequency or the filling level must be adjusted without falling below the minimum filling level. 5.3.4 Switching on appliance Press main switch on the back of the appliance.

  • Page 25: Operation And Control

    Shaking Device Operation and control WARNING During the operation of the shaker, individual components may heat up. Touching its surface can cause burns. Use temperature-resistant protective gloves. CAUTION As the shaker is a moving part, you may suffer crushing injuries while operating the shaker. Load the basket before starting the shaker, and do not reach into the appliance during operation.
  • Page 26 Shaking Device 5.4.3 Setting the shaking frequency and time Set the individual values by scrolling vertically on the touch display: ► Entering the shaking frequency in rpm ► Set time for the timer in minutes/hours Press to confirm entry. The setting is not saved with 5.4.4 Settings Other settings are possible under the Settings menu item...
  • Page 27 30 seconds, the personalised CoustomView appears 5.4.6 Information SV3550 - V1.0.0 - 20210510 0.0.0 Memmert GmbH + Co. KG Äußere Rittersbacher Straße 38 Info Under menu item Settings, click on to view the item information of the 91126 Schwabach / Germany shaking device service@memmert.com...

  • Page 28: Faults, Warning & Error Messages

    Shaking Device Faults, Warning & Error Messages CAUTION If the shaking device is used strangely, for example, uncontrolled shaking, you may suffer bruising injuries to your hands. Disconnect the appliance from the power supply by pulling out the mains plug. Description Cause Action...

  • Page 29: Cleaning And Decontamination

    Shaking Device Cleaning and decontamination DANGER Danger due to electric shock. Penetration of liquid into the appliance can cause electric shocks and short circuits. – Protect the appliance from splashing water. Before cleaning and maintenance work, switch off the appliance and disconnect –...

  • Page 30: Repairs And Service

    – container of the decontamination agent Memmert appliances can become contaminated by loading infectious substances or by environmental influences at the place of installation. All parts of the affected appliance must be decontaminated both before sending to our service and before disposing of the appliance.

  • Page 31: Storage And Disposal

    Shaking Device Storage and disposal 5.8.1 Storage The appliance may only be stored under the following conditions: ■ in a dry and enclosed, dust-free room ■ frost-free ■ disconnected from the power supply 5.8.2 Disposal This product is subject to Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE) of the European Parliament and of the Council of Ministers.

  • Page 32: Pumping Device Cpm

    Pumping device CPM Pumping device CPM Assembly and description 6.1.1 Design Description Overview front Pumping device Housing fan Water bath 6.1.2 Description brief technical description By using a pumping device, the water can circulate in the tub. The delivery volume is 1.2 litres per minute.
  • Page 33 Pumping device CPM 6.1.3 Intended use The Memmert circulation pump is intended exclusively for use with a Memmert water bath WTB. It is used for the internal circulation of the temperature control medium in the water bath. 6.1.4 Use not in accordance with the intended purpose The circulation pump is used exclusively for internal circulation in the water bath and is not intended for temperature control of external circuits.
  • Page 34 ~ 230 V 50 Hz 0,43 A 43 W Protection type CE conformity Schutzart DIN EN 60529 - IP 20 Address of manufacturer Disposal note memmert GmbH+Co.KG D-91126 Schwabach FRG Äußere Rittersbacher Str. 38 Made in Germany Connection / power ratings Appliance number 6.1.9...
  • Page 35 Pumping device CPM 6.1.10 Ambient conditions Ambient temperature +5 °C to 40 °C Air humidity max. 80 % rh (non-condensing) Overvoltage category Pollution degree Altitude of installation max. 2,000 m above sea level Maximum mains voltage fluctuations AC 230 (+/– 10 %) ■...

  • Page 36: Delivery, Transport And Setting Up

    Pumping device CPM Delivery, Transport and Setting Up 6.2.1 Safety WARNING Condensation in the electrical components may cause short circuits. After transport- ing or storing the appliance under humid conditions, remove it from its packaging and let it ventilate for at least 24 hours in normal ambient conditions. Do not connect the appliance to the mains power during this time.
  • Page 37 10 cm. Sufficient air circulation in the vicinity of the appliance must be guaranteed at all times. 75 cm 10 cm 10 cm 10 cm 10 cm 15 cm memmert 06/2021...
  • Page 38 Pumping device CPM 6.2.6 Installation options pumping device The pumping device can be placed either next to or behind the water bath . When placing the pumping device, take care not to kink the hoses. When setting up the pumping unit, make sure that ■...
  • Page 39 Pumping device CPM NOTICE Pump connection IN (suction line): Attach the tube to the long pipe connec- tion on the water bath, as this is where the water is conveyed from the water bath to the pumping device. Pump connection OUT (pressure line): Attach the tube to the short pipe connection on the water bath, as this is where the water from the pump is conveyed back to the water bath.

  • Page 40: Putting Into Operation

    Filling the water bath NOTICE To operate the pumping device, a minimum filling level of 70 mm is necessary. When filling and charging the water bath, please pay attention to the maximum filling height, which must not be exceeded. memmert 06/2021...

  • Page 41: Operation And Control

    Pumping device CPM Operation and control WARNING During operation of the pumping device, individual components may heat up. Touching its surface can cause burns. Use temperature-resistant protective gloves. 6.4.1 Switching on appliance Press main switch on the back of the appliance. The pumping capacity of the pumping device is constant and cannot be regulated.

  • Page 42: Faults, Warning & Error Messages

    Pumping device CPM Faults, Warning & Error Messages WARNING During operation of the pumping device, individual components may heat up. Touch- ing its surface can cause burns. Use temperature-resistant protective gloves. Description Cause Action ■ Disconnect the mains plug ■ Contact customer service CPM cannot be switched off Main switch defective...

  • Page 43: Cleaning And Decontamination

    For correct application, follow the instructions for use on the respective contain- er of the decontamination agent Memmert appliances can become contaminated by loading infectious substances or by environmental influences at the place of installation. All parts of the affected appliance must be decontaminated both before sending to our service and before disposing of the appliance.

  • Page 44: Repairs And Service

    Pumping device CPM Repairs and service DANGER Danger due to electric shock. Penetration of liquid into the appliance can cause electric shocks and short circuits. – Protect the appliance from splashing water. Before cleaning and maintenance work, switch off the appliance and disconnect –...

  • Page 45: Cooling Unit Cdp

    Description Brief technical description The CDP water bath cooling unit enables the water in Memmert water baths to be cooled to temperatures below room temperature. Water is pumped out of the water bath, cooled by a Peltier module and then returned to the water bath.
  • Page 46 7.1.3 Intended use The Memmert cooling unit is intended exclusively for use with a Memmert water bath WTB. It is used to cool the temperature control medium in the water bath to tempera- tures below room temperature from +10 °C.
  • Page 47 ~ 230 V 50/60 Hz 0,7 A 160 W Protection type CE conformity Schutzart DIN EN 60529 - IP 20 Address of manufacturer Disposal note memmert GmbH+Co.KG D-91126 Schwabach FRG Äußere Rittersbacher Str. 38 Made in Germany Connection / power ratings Appliance number 7.1.9...
  • Page 48 Cooling unit CDP 7.1.10 Ambient conditions Ambient temperature +5 °C to 40 °C Air humidity max. 80 % rh (non-condensing) Overvoltage category Pollution degree Altitude of installation max. 2,000 m above sea level AC 115 (+/– 10 %) Maximum mains voltage fluctuations AC 230 (+/–...

  • Page 49: Delivery, Transport And Setting Up

    Cooling unit CDP Delivery, Transport and Setting Up 7.2.1 Safety WARNING Condensation in the electrical components may cause short circuits. After transport- ing or storing the appliance under humid conditions, remove it from its packaging and let it ventilate for at least 24 hours in normal ambient conditions. Do not connect the appliance to the mains power during this time.
  • Page 50 Cooling unit CDP 7.2.5 Setting up WARNING The tube is supplied in a predefined length. This is possibly too long. Please make sure that the hoses do not hang down. You could get caught during operation and suffer scalds or burns from the heated water. CAUTION The appliance may fall from the installation location due to unevenness and injure you or someone else.
  • Page 51 Cooling unit CDP 7.2.6 Installation cooling unit 1. Attach brackets for the pipe connection to the back of the water bath. 2. Attach the pipe connections to the brackets and hang them in the water bath. NOTICE Pump connection IN (suction line): Attach the tube to the long pipe connec- tion on the water bath, as this is where the water is conveyed from the water bath to the pumping device.
  • Page 52 Cooling unit CDP 3. Put the hoses on the pipe connections and connect them to the CDP115. 7.2.7 Installation options Cooling unit The cooling unit can be placed either next to or behind the water bath. When placing the cooling unit, take care not to kink the hoses. When setting up the cooling unit, make sure that ■...

  • Page 53: Putting Into Operation

    Filling the water bath NOTICE To operate the cooling unit, a minimum filling level of 70 mm is necessary. When filling and charging the water bath, please pay attention to the maximum filling height, which must not be exceeded. memmert 06/2021...

  • Page 54: Operation And Control

    Cooling unit CDP Operation and control WARNING During operation of the cooling unit, individual components may heat up. Touching its surface can cause burns. Use temperature-resistant protective gloves. 7.4.1 Switching on appliance Press the main switch on the side of the unit. The cooling power of the cooling unit is constant and cannot be regulated.

  • Page 55: Faults, Warning & Error Messages

    Cooling unit CDP Faults, Warning & Error Messages WARNING During operation of the pumping device, individual components may heat up. Touch- ing its surface can cause burns. Use temperature-resistant protective gloves. Description Cause Action ■ Disconnect the mains plug ■ Contact customer service CDP115 cannot be switched off Main switch defective...

  • Page 56: Cleaning And Decontamination

    For correct application, follow the instructions for use on the respective contain- er of the decontamination agent Memmert appliances can become contaminated by loading infectious substances or by environmental influences at the place of installation. All parts of the affected appliance must be decontaminated both before sending to our service and before disposing of the appliance.

  • Page 57: Repairs And Service

    Cooling unit CDP Repairs and service DANGER Danger due to electric shock. Penetration of liquid into the appliance can cause electric shocks and short circuits. – Protect the appliance from splashing water. Before cleaning and maintenance work, switch off the appliance and disconnect –...

  • Page 58: Attachment

    Attachment Attachment CE declarations of conformity Shaking device SV1524 | SV3550 EC Declaration of Conformity Manufacturer´s name and address: Memmert GmbH + Co. KG Äussere Rittersbacherstraße 38 D-91126 Schwabach Deutschland Authorized representative for Memmert GmbH + Co.KG compiling the technical documents: Äußere Rittersbacher Straße 38...
  • Page 59 Attachment CE declarations of conformity Pumping device CPM650 EC Declaration of Conformity Manufacturer´s name and address: Memmert GmbH + Co. KG Äussere Rittersbacherstraße 38 D-91126 Schwabach Deutschland Authorized representative for Memmert GmbH + Co.KG compiling the technical documents: Äußere Rittersbacher Straße 38...
  • Page 60 Attachment CE declarations of conformity Cooling unit CDP115 EC Declaration of Conformity Manufacturer´s name and address: Memmert GmbH + Co. KG Äussere Rittersbacherstraße 38 D-91126 Schwabach Deutschland Authorized representative for Memmert GmbH + Co.KG compiling the technical documents: Äußere Rittersbacher Straße 38...
  • Page 61 Attachment 06/2021...
  • Page 62 Attachment 06/2021...
  • Page 63 Attachment 06/2021...
  • Page 64 Shaking device SV1524/ SV3550 Accessory guide Pumping device CPM650 D49169 Last updated Cooling unit CDP115 06/2021 englisch Memmert GmbH + Co. KG Äußere Rittersbacher Straße 38 91126 Schwabach | E-Mail: sales@memmert.com | Tel. +49 9122 925-0 www.memmert.com facebook.com/memmert.family instagram.com/memmert.family...
