Summary of Contents for Memmert SV1524

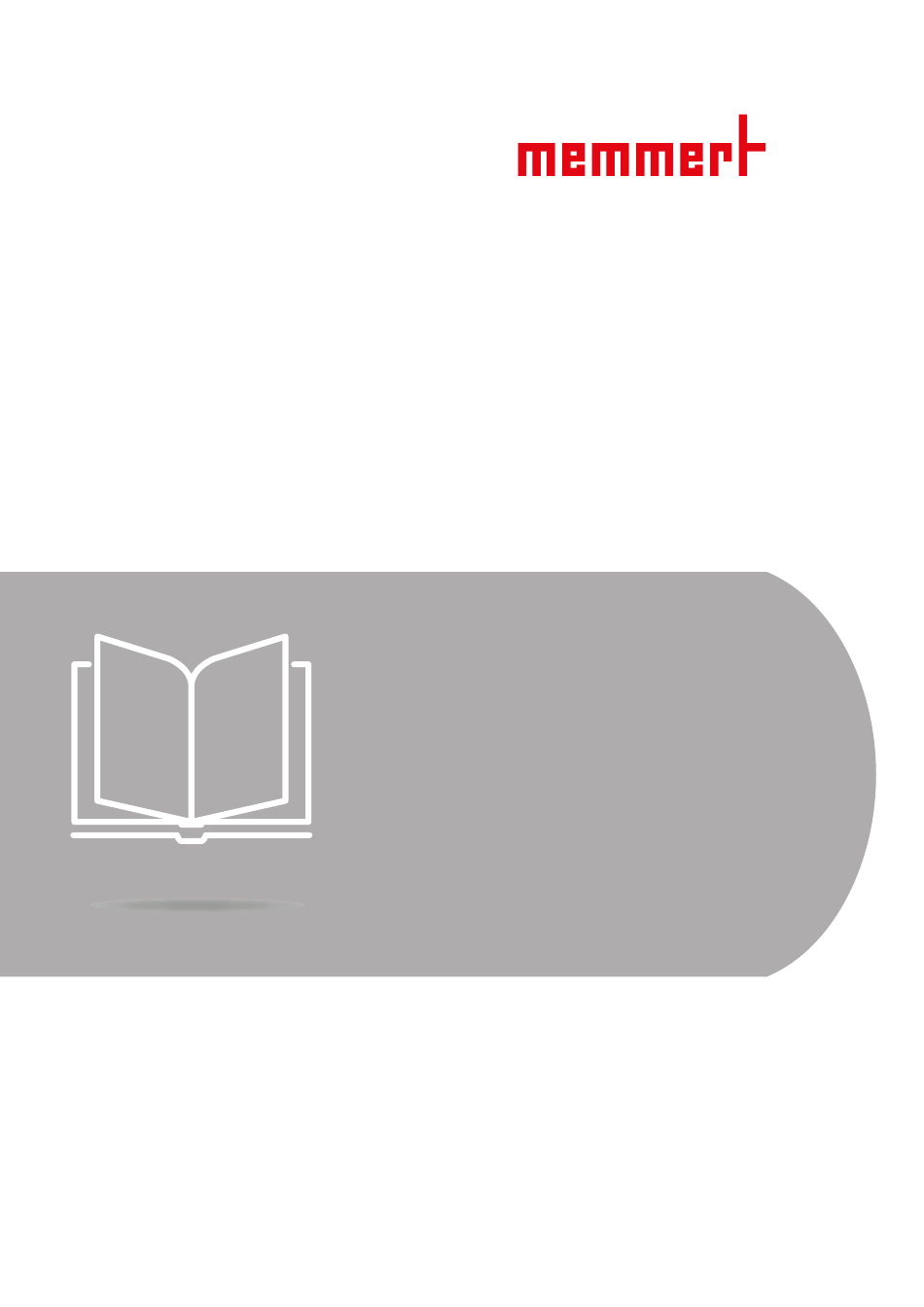

- Page 1 Additional equipment SV1524 SV3550 Shaking device SV1524 SV3550 www.memmert.com...
- Page 2 Table of Contents Table of Contents 1. About this Manual 2. Safety 2.1 Terms and Symbols Used ............................2.1.1 Terms Used..............................2.1.2 Symbols Used .............................. 2.2 Product Safety and Dangers............................2.3 Requirements to be met by Operating Personnel......................2.4 Responsibility of the Owner ............................2.5 Applied Directives and Standards..........................
- Page 3 Table of Contents 5.3 Filling ..................................17 6. Operation and Control 6.1 Switching the Unit on..............................19 6.2 Rapid Shutdown in case of Overload ......................... 19 6.3 Home Screen ................................20 6.4 Setting the Shaking Frequency and Time ........................20 6.5 Settings ...................................
- Page 4 ■ Service manual: To carry out service and repair work you will require the separate service manual. Manuals can be requested from Memmert International After Sales or downloaded from www.memmert.com. Retaining and passing on this manual This operating manual belongs to the unit and must always be kept in a location where it can be easily found by those working with the unit.
- Page 5 E-mail: sales@memmert.com www.memmert.com International After Sales Memmert GmbH + Co. KG Willi-Memmert-Straße 90-96 | D-91186 Büchenbach | Germany Tel. +49 9171 9792 911 E-mail: service@memmert.com www.memmert.com If you have any queries, please always quote the product number on the nameplate.
- Page 6 Safety Safety Terms and Symbols Used In this manual and on the unit itself, certain recurring terms and symbols are used to warn you of hazards or give you information that is important in order to prevent injury or damage. To avoid accidents and damage, observe and follow these instructions. These terms and symbols are explained below.
- Page 7 Safety DANGER Danger due to electric shock Penetration of liquid into the unit can cause electric shocks and short circuits. – Opening the electronics box is prohibited. – Protect the unit from splashing water. – Switch off the unit and disconnect the mains plug before cleaning and maintenance work.
- Page 8 Changes and Alterations The accessories may be used only in connection with a Memmert waterbath WTB. The accessories must not be converted or modified without permission. No parts may be added or installed which have not been approved by the manufacturer.
- Page 9 Safety Switching off the Unit in an Emergency WARNING Hot surfaces Depending on the operating situation, the unit and the load may be hot. Contact with hot surfaces may have serious health consequences due to burns! – Allow the unit to cool down. –...
- Page 10 Design and Description Design and Description Design Overview of design from front 1 Sloping lid (optional) 2 Guide bars 3 Waterbath WTB 4 SV operating display 5 Electronics cabinet Overview of design from rear 1 Main switch 2 Mains connection 3 Nameplate 4 Safety label D57592...
- Page 11 Design and Description Description of Function The shaking device enables controlled shaking of beakers or test tubes in a Memmert waterbath. The shaking device performs a backwards and forwards movement at a frequency of approx. 30 to 150 strokes per minute. The shaking frequency is controlled electronically and can be adjusted via the touch screen.
- Page 12 3 Degree of protection 4 CE conformity 5 Manufacturer's address 6 Information regarding disposal 7 Connection / power ratings 8 Unit number Technical Data Accessory SV1524 SV3550 Dimensions Length Width Height Electrical data Shaking frequency 30 up to 150 Operating voltage...
- Page 13 Design and Description Ambient Temperature + 5 °C to + 40 °C Humidity max. 80% RH (non-condensing) Overvoltage category Contamination level Altitude of installation max. 2,000 m above sea level AC 115 (± 10%) Maximum mains voltage fluctuations AC 230 (± 10%) ■ The unit may not be used in Ex zones. The ambient air must not contain explosive dusts, gases, vapours or gas-air mixtures.
- Page 14 Delivery, Transport and Set-up Delivery, Transport and Set-up Safety DANGER Risk of short circuit Condensation in the electrical components may cause short circuits. – After transporting or storing the unit in humid conditions, remove it from its packaging and allow it to acclimatise for at least 24 hours in normal ambient conditions. –...
- Page 15 Delivery, Transport and Set-up Preconditions ü The installation site must be flat and horizontal and must be able to reliably bear the weight of the unit (see Technical Data). Place the unit on a heat-resistant, fireproof and non-flammable surface. ü A 230 ...
- Page 16 Delivery, Transport and Set-up 4. Unscrew the 4 knurled screws on the shaking device and insert the basket. 5. Secure the basket to the shaking device with 4 knurled screws. D57592 09/2023...
- Page 17 Putting into Operation Putting into Operation Putting into Operation for the First Time NOTICE When putting the unit into operation for the first time, do not leave it unattended until it has reached a steady state. Connecting the Unit to the Power Supply Route the power cable so that ■...
- Page 18 Putting into Operation Product size Maximum fill level Minimum fill level 114 mm 40 mm 164 mm 40 mm 114 mm 40 mm 164 mm 40 mm 114 mm 40 mm 164 mm 40 mm D57592 09/2023...
- Page 19 Operation and Control Operation and Control DANGER Ingress of condensate water when the shaking device is at a standstill When operating the waterbath at an increased temperature (hot steam is generated), the shaking device must be switched on. This means the overpressure vapour barrier is active and prevents condensate from entering the shaking device housing.
- Page 20 Operation and Control Home Screen The CustomView initially appears after switching the unit on. To access the home screen, tap anywhere on the touch display To adjust the set shaking frequency, select the set display ■ ■ Select the symbol to set the timer. To start the shaking frequency, select ■...
- Page 21 Operation and Control If the selection was confirmed with tap to return to the home screen, after 30 seconds, the personalised CustomView appears. Unit Information Under the Settings menu item, click on Info to view the item information of the shaking device.
- Page 22 Operation and Control Stopping Operation DANGER Ingress of condensate when removing the shaking device When removing the shaking device, water which has condensed can run from the guide carriage of the shaking device into the housing of the shaking device. –...
- Page 23 Restart movement ■ Reduce load Software error ■ Restart unit ■ If the error persists, contact the service department: service@memmert.com Memory access error ■ Restart unit If the error persists, contact the service ■ department: service@memmert.com CRC error (internal memory error) ■...
- Page 24 – For correct application, follow the instructions for use on the respective container of the decontamination agent. Memmert units can become contaminated by loading infectious substances or by environmental influences at the place of installation. All parts of the affected unit must be decontaminated both before sending to our service department and before disposing of the unit.
- Page 25 Cleaning and Decontamination If you have any questions about using a decontamination agent for decontaminating Memmert units, please contact our service department. After cleaning and decontamination, ventilate the installation site and allow the unit to dry completely. D57592 09/2023...
- Page 26 Repairs and Service Repairs and Service DANGER Danger due to electric shock Penetration of liquid into the unit can cause electric shocks and short circuits. – Protect the unit from splashing water. – Switch off the unit and disconnect the mains plug before carrying out any cleaning and maintenance work.
- Page 27 Storage and Disposal Storage and Disposal 10.1 Storage The unit may only be stored under the following conditions: ■ in a dry enclosed, dust-free room ■ disconnected from the power supply Before storage, empty the hoses of the pumping device. 10.2 Disposal This product is subject to Directive 2012/19/EC on Waste Electrical and Electronic...
- Page 28 Shaking device Additional equipment SV1524 D57592 Effective 09/2023 SV3550 English...
