General
Model MY6050A1001 direct coupled damper actuator is a
motorized actuator to open/close a damper.
MY6050A1001 provides 2-position or floating control in
response to a command from a controller. Combined with a
Model
QY9010A1014
auxiliary
MY6050A1001 provides proportional control in response to a
command from a proportional controller.
Features
•
Manual open/close function allows easy adjustment
without power supply.
•
Standard models are equipped with rotation angle
adjuster (mechanical stopper), enabling to adjust motor
operating position.
•
Low power consumption allows energy conservation.
•
Large torque is assured despite compact, lightweight
design.

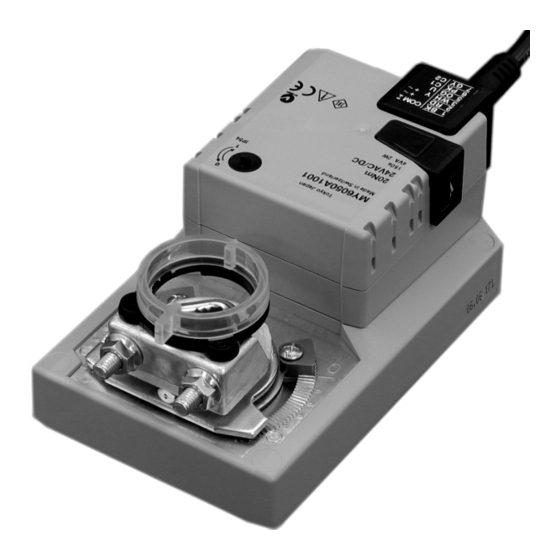

Direct Coupled Damper Actuator
Model MY6050A1001
Model
potentiometer,
Model
•
Simple physical structure facilitates installation on most
types of the damper shafts.
•
Optional auxiliary devices offer a variety of applications.
•
Model MY6050A1001 is user-friendly to operate as well
as to install and set up.
•
Model MY6050A1001 damper actuator conforms to all
the applicable standards of CE Marking.
1
AB-6721
Specifications/Instructions
Advertisement
Table of Contents
Related Manuals for Azbil MY6050A1001
Summary of Contents for Azbil MY6050A1001
- Page 1 Specifications/Instructions Direct Coupled Damper Actuator Model MY6050A1001 General Model MY6050A1001 direct coupled damper actuator is a motorized actuator to open/close a damper. Model MY6050A1001 provides 2-position or floating control in response to a command from a controller. Combined with a...
- Page 2 This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected. If this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact Azbil Corporation’s sales representative.
- Page 3 • Auxiliary switch (SPDT × 2)* : Model QY6051B1001 • Mounting bracket for replacement (for replacing Model MY6040A)* : Model Z-SMA • Product model number (Model MY6050A1001) Requirements for order • Auxiliary device model number (if necessary) Notes: ∗1. Multiple auxiliary switches or auxiliary potentiometers cannot be connected. Connect single auxiliary potentiometer or auxiliary switch.
- Page 4 AB-6721 Dimensions Actuator 138.5 108.5 Maintenance clearance 14.5 100.6 Figure 1. Dimensions (mm): Damper actuator...
- Page 5 AB-6721 Universal bracket 2 pan-head tapping screws (slotted, M4 × 12, 1.4 pitch) equivalent to JIS* B 1115-1976 are attached to the universal bracket. ∗JIS: Japanese Industrial Standards Figure 2. Dimensions (mm): Universal bracket Parts Identification Position indicator ring Fastening nut M6 screw (width across flats: 10 mm) Shaft clamp...
- Page 6 AB-6721 Installation 3) With the gear release button pressed , manually rotate the shaft clamp until it is in the position shown in Fig. 6. CAUTION Then, insert the universal bracket into the slit of the actuator and fix the bracket onto the damper with the two •...
- Page 7 MY6050A1001, automatic setting function of feedback potentiometer is not available. Manually perform the potentiometer setting. ∗ MFB: Motor feedback • For the controller with time-limit feedback connected to Model MY6050A1001, error may be detected. In such a case, reset longer time limit.
- Page 8 ∼ (+) 24 V AC (24 V DC) ⊥ (-) Model MY6050A1001 Figure 12. Connection example: Multiple actuators (in parallel operation) for 2-position/floating action <Proportional action (floating with feedback potentiometer)> Proportional controller (floating with relay contact output) ∼ (+)
