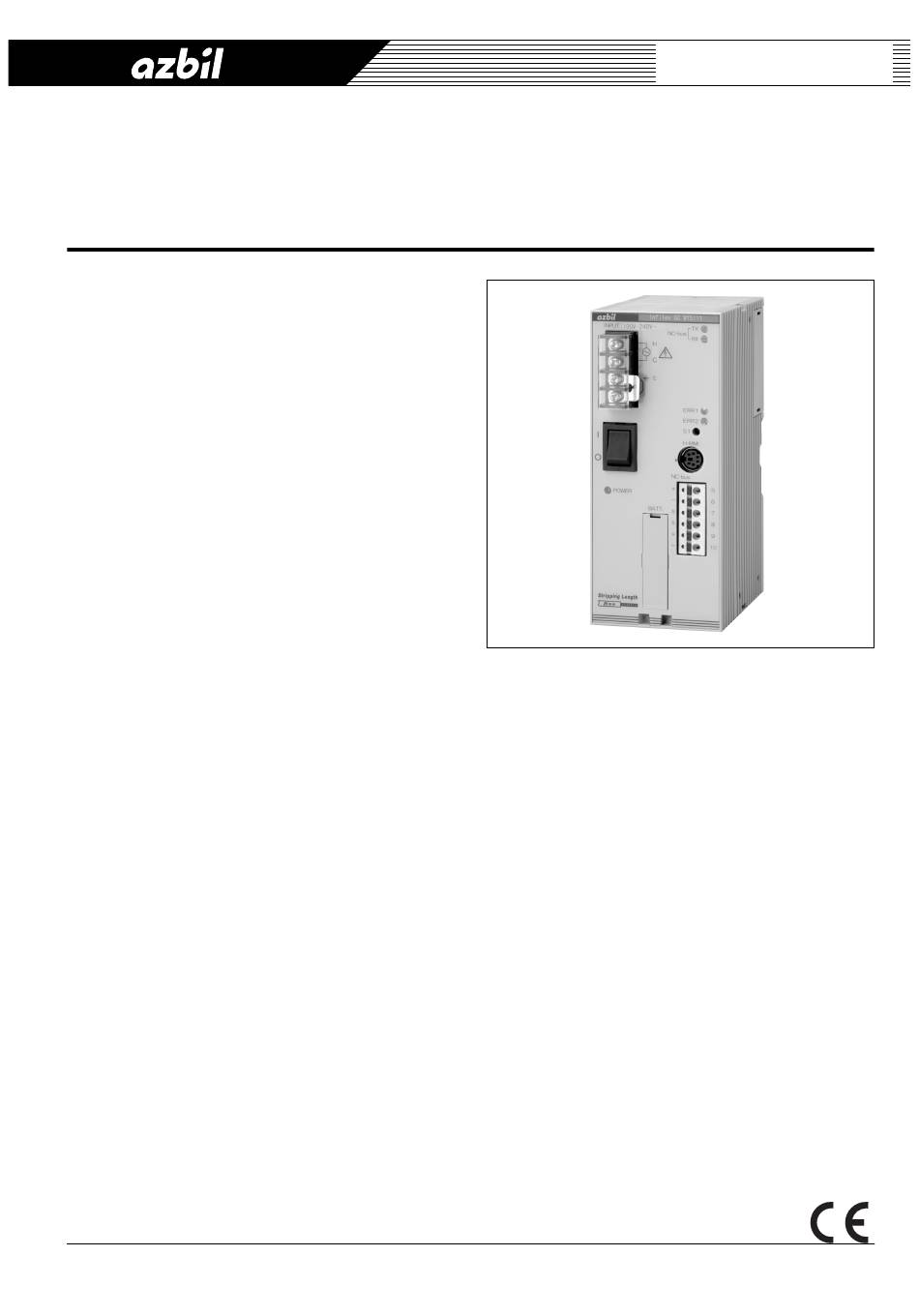

Azbil Infilex GC WY5111 Instructions Manual

General
Infilex GC (Infilex: named for "Infinity" and "Flexible") Model
WY5111 is a multipurpose controller designed to control
building equipment, such as air handling unit (AHU).
Infilex GC enables to control the temperature and humidity, as
well as building equipment operation.
Infilex GC consists of a basic unit and I/O modules, UT
module, integral type Operator Panel, and SAnet interface
module. The number and types of the modules can be
changed corresponding to the control or management to fit in
various applications. Additionally, since the software to be
installed can be freely edited, an optimum application for
building equipment is configured in terms of both the software
and hardware.
Infilex GC is operated with a user terminal and with Operator
Panel to correspond with various situations. Besides, Infilex
GC communicates with Azbil Corporation's savic-net
BMS through the transmission trunk line called NC-bus. By
sending the operation status to the BMS center unit or by
controlling the operation based on the commands sent from
the BMS center unit, the integrated control of the entire
building can be performed. Azbil Corporation's field devices,
Intelligent Component Series devices, are also connectable to
Infilex GC via SAnet, allowing high-performance control.
Features

Compact design:
Small size body allows free installation in a desired place.

I/O module configurations:
Input and output types can be selected, and the number
of points to be mounted can be increased or decreased
corresponding to the application.

Editable software configuration:
Optimal software for the contents of your application can
be configured.

User interface module (Operator Panel):
Operator Panel (panel mount type/integral type)
connected to Infilex GC allows you, without changing the
settings from the BMS center unit, to change the Infilex
GC settings.

Remote control with a user terminal:
Neopanel or Neoplate is connectable, so that a user in a
room (remote location) can perform ON/OFF operation
and change temperature setting.


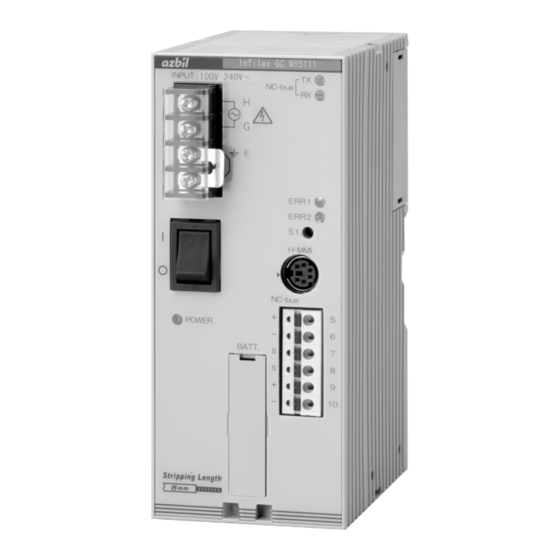

Azbil Corporation's controller Infilex series: Infilex is named for "Infinity" and "Flexible".

Infilex
Multipurpose Controller
Model WY5111

FX
1
GC

Cooperation with BMS:
Infilex GC integrated into savic-net FX enables to
centrally monitor and control building equipment from the
BMS center unit (client PC).

Autonomous distributed control:
Even if a trouble occurs in the BMS, the backup operation
is performed individually to distribute potential risks
caused by malfunction of the system.

Installation:
A quick-fit screwless (clamp) terminal block for the
communication line reduces wiring work load.
Additionally, either DIN rail mounting or screw mounting
can be selected.

Connection to Intelligent Component Series devices:
Intelligent Component Series devices offering advanced
control are connectable via SAnet.

CE Marking certified:
Infilex GC Model WY5111W0000 (NC-bus model (Line
A)) conforms to all the applicable standards of CE
Marking (Class A).
AB-6528
Specifications/Instructions
