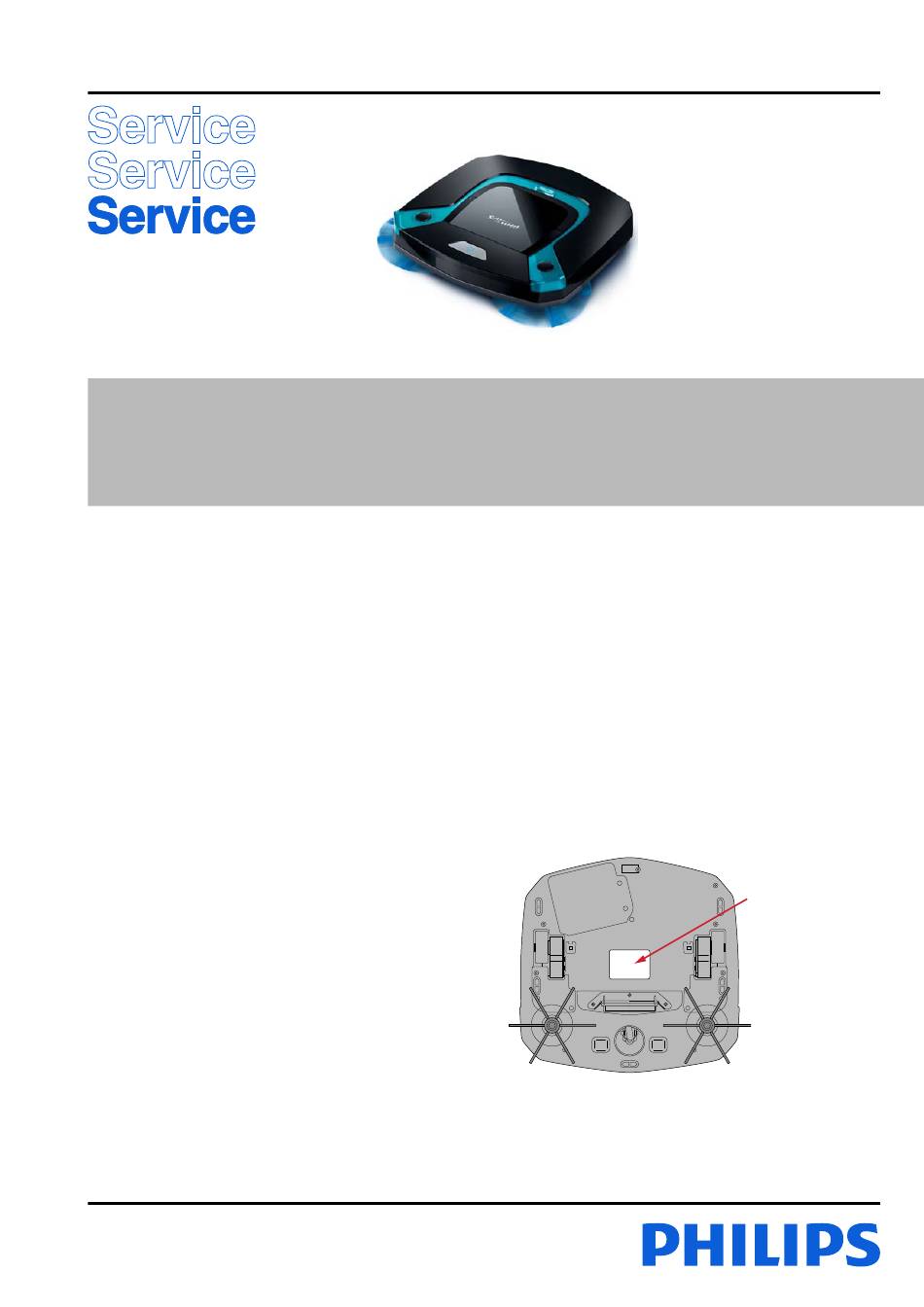

Philips Consumer Lifestyle
Service Manual
Product information
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety standards as
officially laid down at this moment.
Performance
• Battery type
• Battery voltage
• Charging time
• Runtime
• Suction power (max)
• Suction Power (max Pa) : 600
• Sensors
Usability
• 24-hour scheduling
• Cleaning modes
• Types of Floors
Filtration
• Dust capacity
• Exhaust filter
Nozzles and accessories
• Accessories included
Sustainability
• Packaging
• User manual
Published by Philips Consumer Lifestyle
18/04 Version 1.5
: Li-Ion
: 10.8 V
: 4 hour(s)
: 115 minute(s)
: 6 W
: 23 sensors
: 4
: Carpet, Hardfloor
: 0.4 L
: EPA 12 filter
: AC power adaptor, Charging
base, Micro fiber pad,
Side brushes, Exhaust filter,
Remote control
: > 90% recycled materials
: 100% recycled paper
Printed in the Netherlands
SmartPro Easy Robot
Weight and dimensions
• Dimensions of product : 300 x 300 x 58.5 mm
(L x W x H)
• Weight of product
: 2 kg
Optional (accessories)
• FC8007/01 Filter + Brush (for Europe)
• FC8007/81 Filter + Brush (for China)
• FC8008/01 2x Mop Pad (for Europe)
• FC8008/81 2x Mop Pad (for China)
Production date
© Copyright reserved
FC8794/01
FC8794/31
FC8794/82
Subject to modification
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Philips SmartPro FC8794/01
Summary of Contents for Philips SmartPro FC8794/01
- Page 1 Micro fiber pad, Side brushes, Exhaust filter, Remote control Sustainability • Packaging : > 90% recycled materials • User manual : 100% recycled paper Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 18/04 Version 1.5...
- Page 2 Consumer Replaceable Parts FC8794/01 /31 /82 Description Remark Service code Brush 4322 004 26781 Remote control 4322 006 22201 Switching adaptor EU plug 4322 006 10401 Switching adaptor China plug 4322 006 21891 Switching adaptor Taiwan plug 3000 017 10231 Docking station 4322 006 22101 2-20...
-
Page 3: Service Parts
Service Parts FC8794/01 /31 /82 Description Remark Service code 1 pair of Side brushes 4322 004 26752 Mop pads 4322 004 94441 Mop holder 4322 004 26771 Rechargeable battery pack assy 2200 mAH 4322 005 38071 3-20... - Page 4 Service Parts FC8794/01 /31 /82 Description Service code Filter castor 4322 004 94431 Dustbin assy 4322 005 38111 4-20...
- Page 5 Service Parts FC8794/01 /31 /82 Description Service code Main PCBA 4322 006 26201 Bumper PCBA 4322 006 26211 5-20...
- Page 6 Service Parts FC8794/01 /31 /82 6-20...
- Page 7 Service Parts FC8794/01 /31 /82 Description Remark Service code Description Remark Service code Side brush motor assy Left 4322 005 38091 Side brush motor assy Right 4322 005 38101 Suction motor assy Castor 4322 005 38061 Front cliff sensor assy 4322 005 38161 Side cliff sensor assy 4322 005 38151...
- Page 8 Service Parts FC8794/01 /31 /82 Description Remark Service code Side cliff sensor assy 4322 005 38151 Nozzle strip 4322 004 26761 Left wheel assy 4322 005 38121 Right wheel assy 4322 005 38131 8-20...
- Page 9 Service Parts FC8794/01 /31 /82 9-20...
- Page 10 Disassembly- and Reassembly advice FC8794/01 /31 /82 • Remove the Dustbin assy. • Turn the appliance. The brushes can easily be pulled of and replaced after hearing the <click> the brush is placed in a correct way. • To remove or replace the Wheel assy: Remove the 2 screws and screw to remove the Cover...
- Page 11 Disassembly- and Reassembly advice FC8794/01 /31 /82 • The Cliffsensor can be replaced by unscrewing the screw. • Beneath the Left and Right Wheel assy is a spring placed, do not forget to check the presence of the spring while re-assembling.. •...
- Page 12 Disassembly- and Reassembly advice FC8794/01 /31 /82 • To Remove or replace the Suction motor assy: Remove the 3 screws F, now the Suction motor assy can be replaced by disconnecting the connector. • To remove the Top cover assy: First remove screw E, positioned below the Dustbin assy.
- Page 13 Disassembly- and Reassembly advice FC8794/01 /31 /82 • The Mopholder can be placed in upright position in the • Then move the mopholder towards the robot and slots between the wheels. <click>. • The Pads can be sticked onto the Mop Holder. 13-20...
-
Page 14: Electrical Diagram
Electrical diagram FC8794/01 /31 /82 Front cliff Sensor Bumper Bumper PCBA PCBA Left Right Side cliff Side cliff Sensor Sensor Left a Right a Side cliff Side cliff Sensor Sensor Left b Right b Left Right Main PCBA wheel wheel assy assy Side brush... - Page 15 Wiring diagram FC8794/01 /31 /82 Front cliff Bumper PCBA Bumper PCBA sensor assy Left Right Side brush Left wheel Power Docking station Right wheel Side brush motor assy Left assy PCBA Power contacts assy motor assy Right 15-20...
- Page 16 Sensors FC8794/01 /31 /82 Docking sensor/ Remote sensor Wheel rotation Accelerometer Infrared bumper sensor Infrared bumper sensor Wall follow Wall follow Remote sensor/ Remote sensor/ Docking sensor Docking sensor Cliff sensor Wheel rotation Wheel rotation Remote sensor/ Docking sensor Sensor Number Cliff sensors Infrared bumper...
-
Page 17: Repair Instruction
If the problem continues to occur on lighter This causes the robot to move colored fl oors, please to to www.philips.com/ in an unusual pattern. support or contact the Consumer Care Center in your country. Or Clean the drop-off sensors with the small brush. - Page 18 Repair instruction FC8794/01 /31 /82 Problem Possible cause Solution 7. The robot cannot fi nd the a. There is not enough room for • Try to fi nd another place for the docking station docking station. the robot to navigate towards (see “Installing the docking station”...
- Page 19 Whole range without partlist FC8794/01 /31 /82 FC8794/01 FC8792/01 FC8796/31 Model Number FC8794/31 FC8792/82 FC8796/82 FC8794/82 Colour Dark Royal Blue Black, Electric aqua Beluga, Metallic violet Battery type Li-Ion Li-Ion Li-Ion Battery voltage 10.8 V 10.8 V 10.8 V Charging time 4 hour(s) 4 hour(s) 4 hour(s)
- Page 20 FC8794/01 /31 /82 Version history 17/01 Version 1.1 : FC8794/82 initial release. 17/02 Version 1.2 : On page 3-20 changed: Pos. 8 Rechargeble battery pack assy 2800 mAH 4322 005 38081 into Rechargeable battery pack assy 2200 mAH 4322 005 38071. 17/05 Version 1.3 : Added new version: FC8794/01.
