542TS, 542TSD
Degas
Tub Spout Series
®
Operation & Maintenance Manual
Model Numbers
542TS
542TSD
Modifications
-ORB
Oil rubbed bronze
-STN
Satin nickel finish
Note: Append appropriate -suffix to model number.
Dimensions
542TS
A A
542TSD
A A
Note: Dimensions are subject to change without notice.

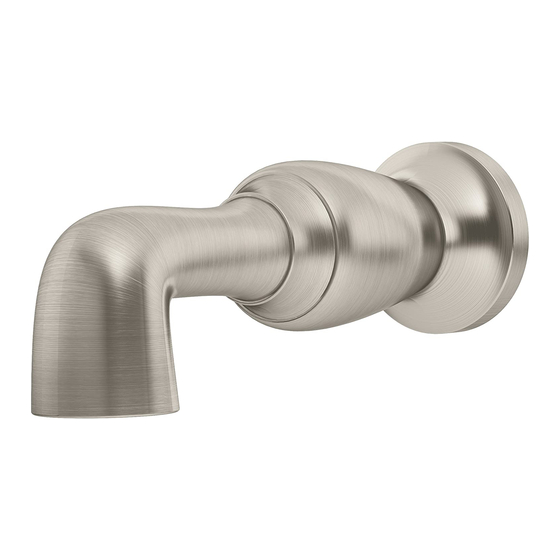

Degas Non-Diverter Tub Spout
Degas Diverter Tub Spout
B B
C C
B B
E E
Specifications
8" diverter tub spout (542TS) and 8 1/8" non-diverter
tub spout (542TSD) made from brass materials plated in
standard polished chrome finish.
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
A
B
C
D
E
D D
Teflon Tape
D D
Measurements
Ø 2 1/2", 64 mm
1/2", 13 mm
8 1/8", 206 mm
1/2"-14 NPT
8", 203 mm
Required for Installation
