Blue-White ProSeries-M MS-6 Quick Start Manual

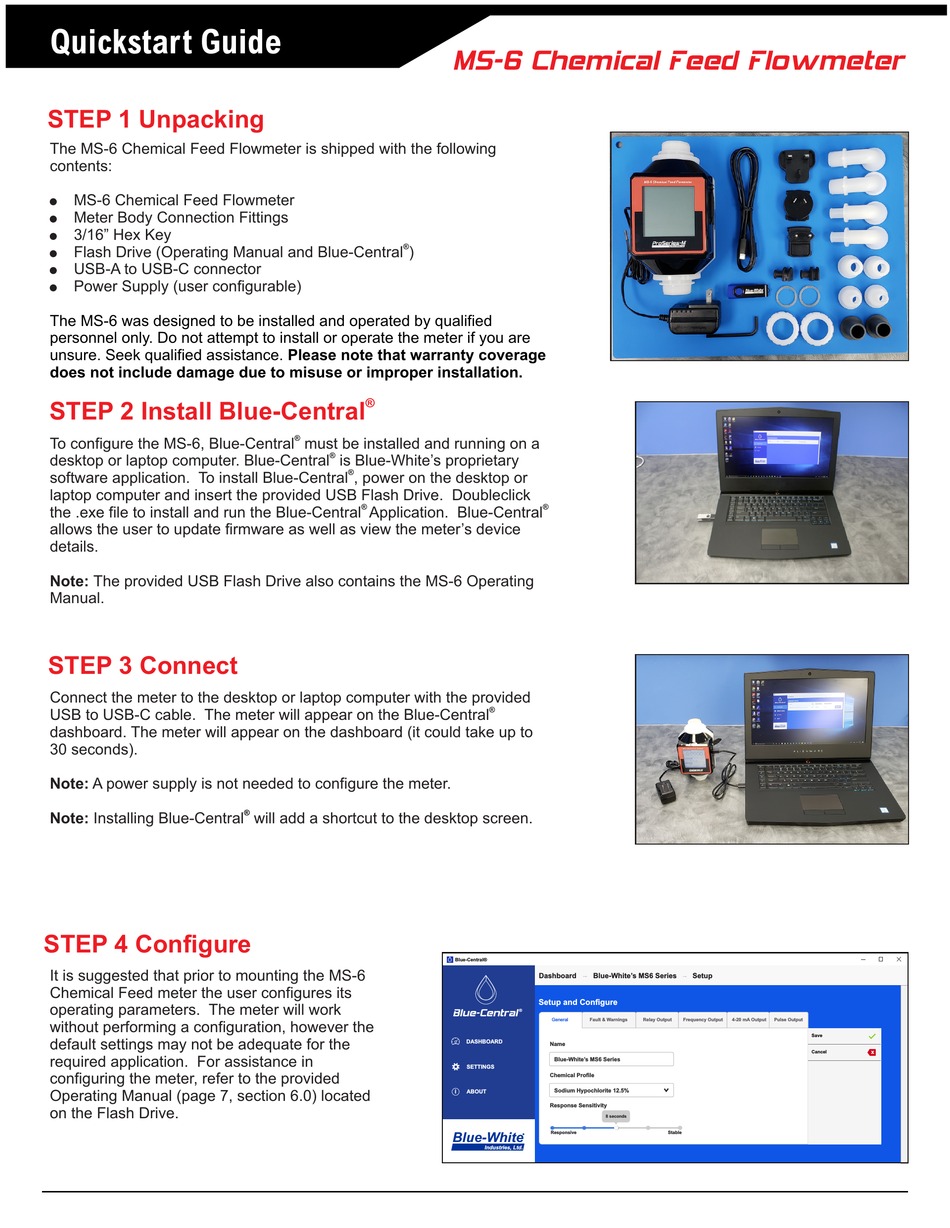

Quickstart Guide

STEP 1 Unpacking

The MS-6 Chemical Feed Flowmeter is shipped with the following
contents:
!
MS-6 Chemical Feed Flowmeter
!
Meter Body Connection Fittings
! 3/16" Hex Key
! Flash Drive (Operating Manual and Blue-Central )
!
USB-A to USB-C connector
!
Power Supply (user configurable)
The MS-6 was designed to be installed and operated by qualified
personnel only. Do not attempt to install or operate the meter if you are
unsure. Seek qualified assistance. Please note that warranty coverage
does not include damage due to misuse or improper installation.

STEP 2 Install Blue-Central

To configure the MS-6, Blue-Central must be installed and running on a
desktop or laptop computer. Blue-Central is Blue-White's proprietary
software application. To install Blue-Central , power on the desktop or
laptop computer and insert the provided USB Flash Drive. Doubleclick
the .exe file to install and run the Blue-Central Application. Blue-Central
allows the user to update firmware as well as view the meter's device
details.
Note: The provided USB Flash Drive also contains the MS-6 Operating
Manual.

STEP 3 Connect

Connect the meter to the desktop or laptop computer with the provided
USB to USB-C cable. The meter will appear on the Blue-Central
dashboard. The meter will appear on the dashboard (it could take up to
30 seconds).
Note: A power supply is not needed to configure the meter.
Note: Installing Blue-Central will add a shortcut to the desktop screen.

STEP 4 Configure

It is suggested that prior to mounting the MS-6
Chemical Feed meter the user configures its
operating parameters. The meter will work
without performing a configuration, however the
default settings may not be adequate for the
required application. For assistance in
configuring the meter, refer to the provided
Operating Manual (page 7, section 6.0) located
on the Flash Drive.
®
®
®
®
®
®
®

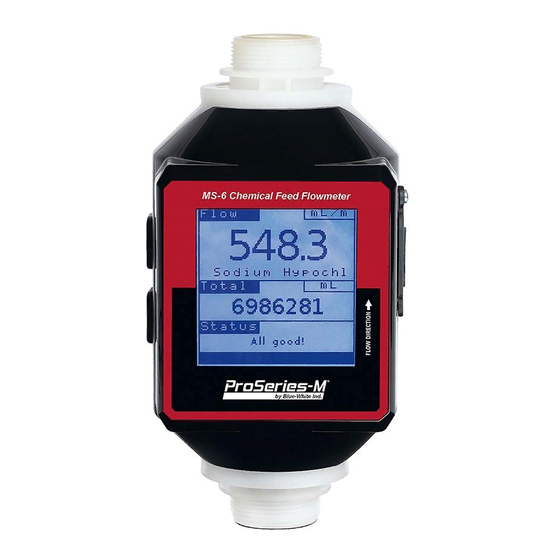

MS-6 Chemical Feed Flowmeter
®
®
