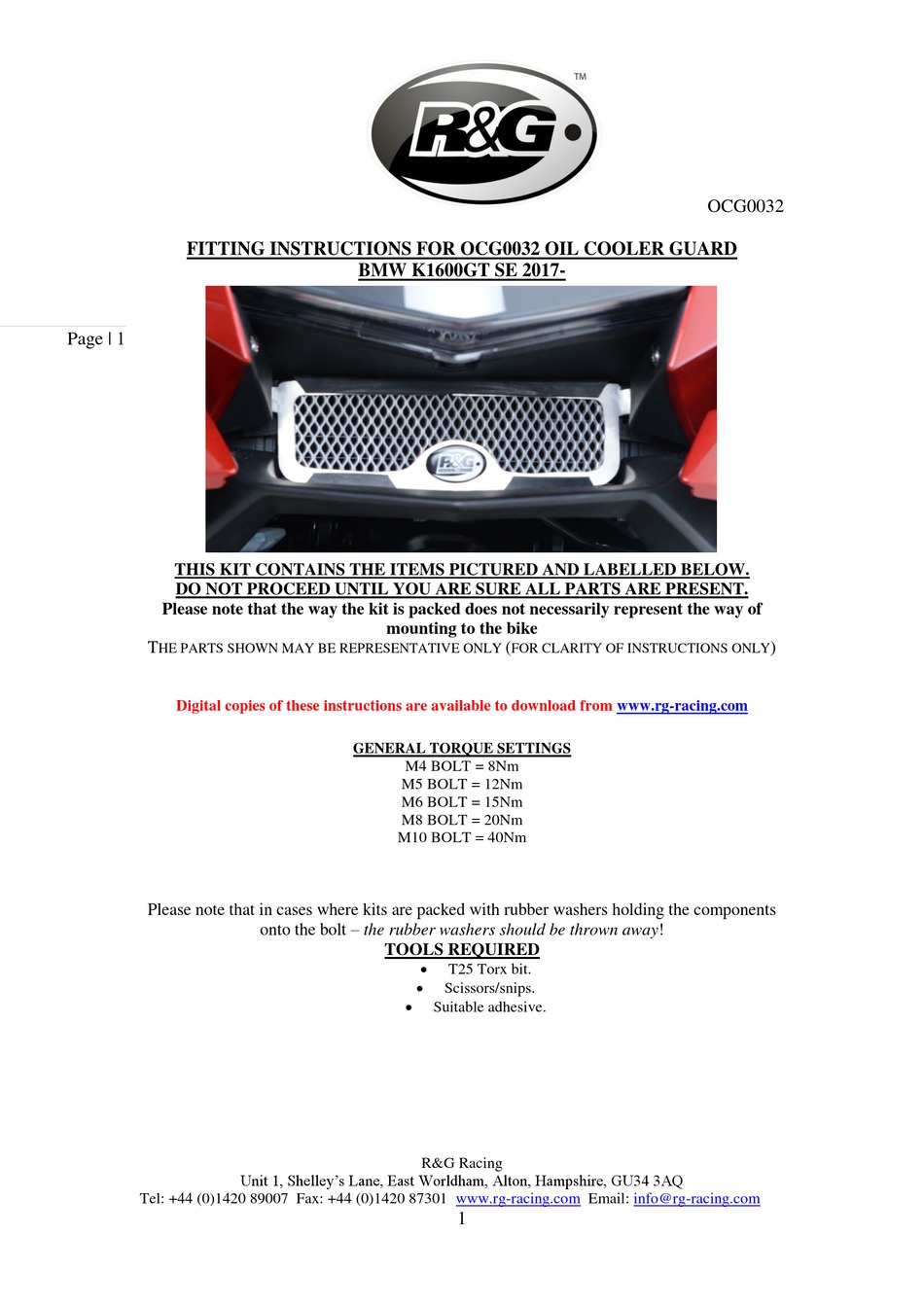

FITTING INSTRUCTIONS FOR OCG0032 OIL COOLER GUARD
Page | 1
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Digital copies of these instructions are available to download from
Please note that in cases where kits are packed with rubber washers holding the components
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
BMW K1600GT SE 2017-
mounting to the bike
GENERAL TORQUE SETTINGS
M4 BOLT = 8Nm
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
onto the bolt – the rubber washers should be thrown away!
TOOLS REQUIRED
Suitable adhesive.
R&G Racing
(
FOR CLARITY OF INSTRUCTIONS ONLY
www.rg-racing.com
T25 Torx bit.
Scissors/snips.
www.rg-racing.com
Email:
1
OCG0032
)
info@rg-racing.com
Advertisement
Related Manuals for R&G OCG0032 Series
Summary of Contents for R&G OCG0032 Series
- Page 1 OCG0032 FITTING INSTRUCTIONS FOR OCG0032 OIL COOLER GUARD BMW K1600GT SE 2017- Page | 1 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY FOR CLARITY OF INSTRUCTIONS ONLY...
- Page 2 OCG0032 Page | 2 LEGEND ITEM 1 = OIL COOLER GUARD (OCG0032) (x1). ITEM 2 = SILICON RUBBER ‘U’ CHANNEL (SRS008) (x2). Picture 1 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
-
Page 3: Fitting Instructions
OCG0032 Page | 3 Picture 2 Picture 3 Picture 4 Picture 5 FITTING INSTRUCTIONS Cut the silicon rubber ‘U’ channel into suitable lengths and using a small amount of suitable adhesive fit to the oil cooler guard frame as shown in picture 1. ... - Page 4 OCG0032 R&G shall at its option either supply a replacement or refund the purchase money but shall not be liable if the Products have been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s instructions and good engineering practice or if the defect arises from accident or neglect.
-
Page 5: Outils Requis
OCG0032 NOTICE DE MONTAGE POUR OCG0032 PROTECTION REFROIDISSEUR D’HUILE BMW K1600GT SE 2017- Page | 5 Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage. La façon dont le kit est emballé ne correspond pas forcément à la façon de monter les pièces sur la moto. - Page 6 OCG0032 Page | 6 LÉGENDE ARTICLE 1 = PROTECTION REFROIDISSEUR D’HUILE (OCG0032) (x1). ARTICLE 2 = CAOUTCHOUC DE SILICONE EN « U » (SRS008) (x2). Photo 1 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
-
Page 7: Notice De Montage
OCG0032 Page | 7 Photo 2 Photo 3 Photo 4 Photo 5 NOTICE DE MONTAGE Couper le caoutchouc de silicone en « U » en longueurs appropriées et en utilisant une petite quantité d'adhésif adapté au cadre de protection du refroidisseur d'huile comme indiqué sur l'image 1. - Page 8 OCG0032 CONSUMER NOTICE The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order. Page | 8 The Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products other than those in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality...
-
Page 9: Sie Benötigen Folgendes Werkzeug
OCG0032 MONTAGEANLEITUNG FÜR OCG0032 ÖLKÜHLERSCHUTZ BMW K1600GT SE 2017- Page | 9 ALLE KIT-TEILE SIND UNTEN ABGEBILDET UND GEKENNZEICHNET. BEVOR SIE MIT DER MONTAGE BEGINNEN, ÜBERPRÜFEN SIE, DASS ALLE TEILE VORHANDEN SIND. Hinweis: Die Verpackung der Teile stellt nicht die Reihenfolge der Montage dar. IE UNTEN ABGEBILDETEN EILE DIENEN LEDIGLICH ZUR RKLÄRUNG... - Page 10 OCG0032 Page | 10 LIEFERUMFANG ARTIKEL 1 = ÖLKÜHLERSCHUTZ (OCG0032) (x1) ARTIKEL 2 = SILIKON/KUNSTSTOFF U-KANAL (SRS008) (x2) Abbildung 1 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 11 OCG0032 Page | 11 Abbildung 2 Abbildung 3 Abbildung 4 Abbildung 5 MONTAGEANLEITUNG Schneiden Sie den Silikon/Kunststoff U-Kanal in geeignete Längen und fixieren Sie sie mit Klebstoff am Rahmen des Ölkühlerschutzes – siehe Abbildung 1. Entfernen Sie die zwei Schrauben, die in Abbildung 2 mit Pfeilen gekennzeichnet sind, und entfernen Sie die zwei Seitenverkleidungsteile.
