Dr. Mach M2 Mounting Instructions
Stand lamp
Hide thumbs
Also See for M2:
- Mounting instructions, directions for use (25 pages) ,
- Directions for use manual (22 pages)
Table of Contents
Advertisement

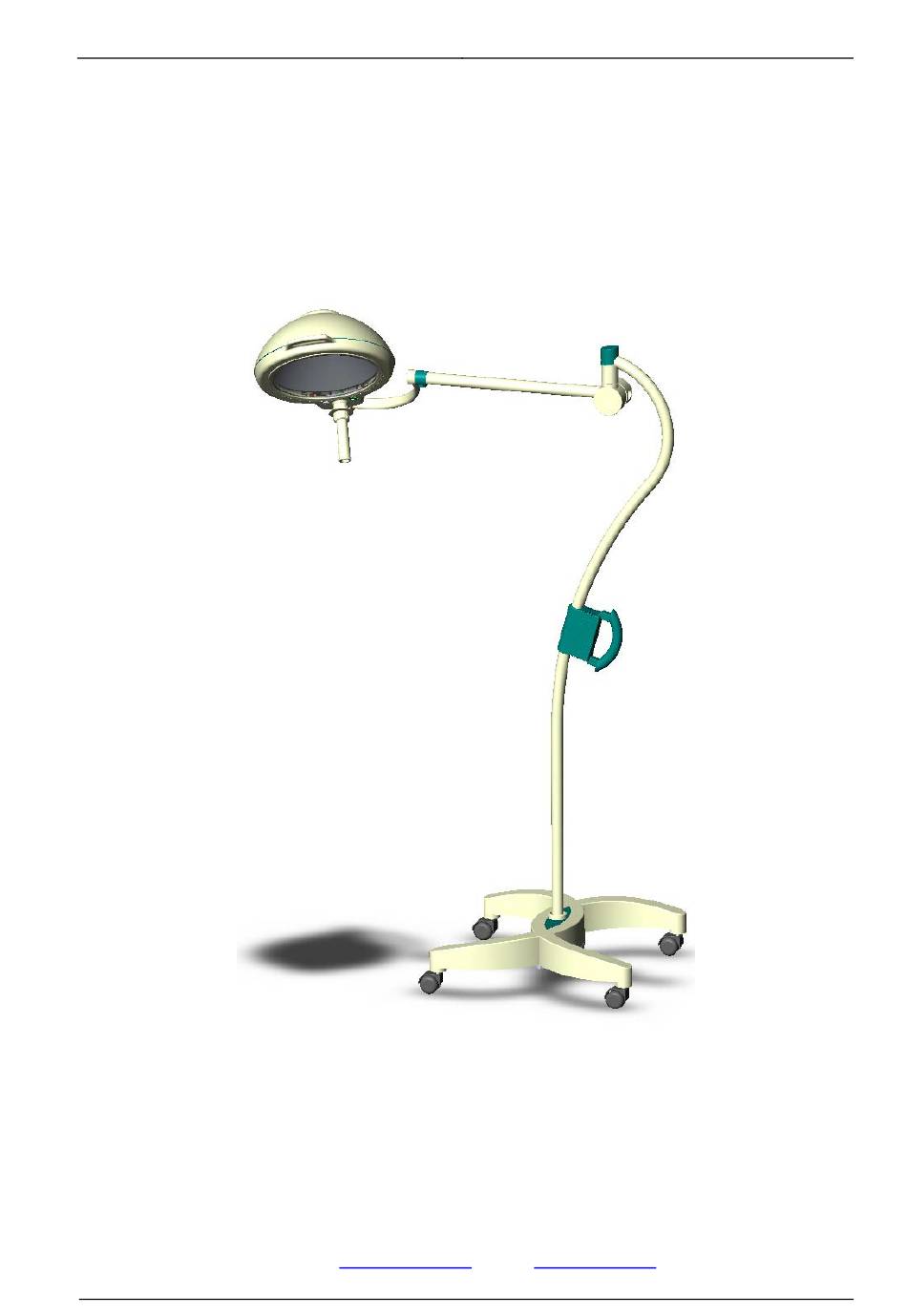

Stand for Mach M2
Mounting instructions Directions for use
Stand lamps:
Dr. Mach
59860007
STAND MODEL
FOR MACH M2
Mach M2................................
Mach M2 F.............................
GmbH u. Co. KG, Flossmannstrasse 28, D-85560 Ebersberg
Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50
Internet: www.dr-mach.com, E-mail:
Edition 04
Dr. Mach
Lamps and Engineering
Order No. 170 120 1300
Order No. 170 230 1300
info@dr-mach.de
22.07.2009 / Bak Page 1/19
Advertisement
Table of Contents
Related Manuals for Dr. Mach M2
Summary of Contents for Dr. Mach M2
- Page 1 Dr. Mach Stand for Mach M2 Lamps and Engineering Mounting instructions Directions for use STAND MODEL FOR MACH M2 Stand lamps: Mach M2........ Order No. 170 120 1300 Mach M2 F......Order No. 170 230 1300 Dr. Mach GmbH u. Co. KG, Flossmannstrasse 28, D-85560 Ebersberg Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50...
-
Page 2: Table Of Contents
Dr. Mach Stand for Mach M2 Lamps and Engineering List of contents 1. Safety instructions ....................Page 3 2. Installation summary – stand lamps ..............Page 4 3. Mounting instructions ..................Page 5 3.1 Mounting the stand ..................Page 5 3.1.1 Mounting the stand foot ................ -
Page 3: Safety Instructions
Dr. Mach Stand for Mach M2 Lamps and Engineering 1. Safety instructions The stand foot must not be connected to the mains, until it has been fully assembled and installed. Connect the stand only to a correctly installed socket with earthing con- tact. -
Page 4: Installation Summary - Stand Lamps
Mach M2 / Mach M2 F The stand has a built-in transformer 230V / 22,8V 50/60Hz and is delivered in combination with the lamp Mach M2 / Mach M2 F. The transformer is positioned in a transformer housing 1 on the stand base. -
Page 5: Mounting Instructions
Dr. Mach Stand for Mach M2 Lamps and Engineering 3. Mounting instructions 3.1 Mounting the stand Extent of supply for stand foot: • 1 stand foot • 1 stand tube • 1 spring arm Mounting accessories: • 2 antistatic rollers with brakes •... -
Page 6: Mounting The Stand Tube To The Stand Foot
Dr. Mach Stand for Mach M2 Lamps and Engineering 3.1.2 Mounting the stand tube to the stand foot CAUTION! Damage to the equipment: If the nose fastening is not inserted prop- erly, and then the stand tube has not been bolted, the mobile stand can fall. -
Page 7: Mounting The Spring Arm And The Lamp Head
Dr. Mach Stand for Mach M2 Lamps and Engineering 3.2 Mounting the spring arm and the lamp head 3.2.1 Mounting the spring arm to the stand tube For mounting the spring arm proceed as fol- lows: • Unscrew recessed head screw 1, pull off cover cap 2 and remove it by pulling it up- ward. -
Page 8: Mounting The Lamp Head To The Spring Arm
Dr. Mach Stand for Mach M2 Lamps and Engineering 3.2.2 Mounting the lamp head to the spring arm ATTENTION! Notice the rated voltage information! Coupling journal Lamp bow Sticker with voltage information Each lamp has a red sticker applied near the coupling journal at the lamp bow. The sticker shows the rated voltage of the lamp. - Page 9 Mounting the lamp Mach M2 / M2F to the spring arm • Loosen brake screw 1, so the plastic bushing 2 can be slipped easy onto the spring arm.
-
Page 10: Installation Of The Stand
Dr. Mach Stand for Mach M2 Lamps and Engineering 3.3 Installation of the stand 1. Take the stand to the working place and arrest the two rollers with brakes. Caution: Do not touch damaged electrical parts. Danger of electrical shock! If you notice a damaged mains cable or plug do not plug in. -
Page 11: Adjusting The Spring Force
Dr. Mach Stand for Mach M2 Lamps and Engineering Remark: Check the fixing screw at the lower part of the stand once a year and, if necessary, ad- just. Check and grease the security segment once a year. 5.2 Adjusting the spring force Springs are wearing parts, thus the spring force can decrease in time and must be readjusted. -
Page 12: Maintenance Of The Securing Segment
Dr. Mach Stand for Mach M2 Lamps and Engineering 5.3 Maintenance of the securing segment • Dismount the lamp head in reverse order of mounting (see chapter 3.2.2). • Check the thickness of the segment. It must be at least 1,5mm. In case the thickness of the segment is less than 1,5mm it has to be changed. -
Page 13: Environmental Conditions
8. CE- mark The stands comply to the standards 93/42/EEC for medical products of the Euro- pean Community’s Council. Dr. Mach applies the standard EN 60601-2-41. Dr. Mach GmbH is certified according to DIN EN 46001:1996 and DIN EN ISO 13485:2001. 59860007 Edition 04 22.07.2009 / Bak Page 13/19... -
Page 14: Dimensions And Range Of Movement
Dr. Mach Stand for Mach M2 Lamps and Engineering 9. Dimensions and range of movement 59860007 Edition 04 22.07.2009 / Bak Page 14/19... -
Page 15: Spare Parts
Dr. Mach Stand for Mach M2 Lamps and Engineering 10. Spare parts 21,22 Mach M2 59860007 Edition 04 22.07.2009 / Bak Page 15/19... -
Page 16: Spare Parts List
Dr. Mach Stand for Mach M2 Lamps and Engineering Spare parts - continuation 29,30 11. Spare parts list Item Qty. Name EDVNO Remarks Decorative foil 74015001 Securing sleeve 74013012 Ondal 1502738 Securing segment 74015006 Brake screw 74015007 Screw M3x4 DIN 966:Ni for cover... -
Page 17: Appendix To The Mounting Instructions 59860007
Stand for Mach M2 Lamps and Engineering Appendix to the mounting instructions 59860007 Acrobat-Swing mobile stand for Mach M2 (Mobile stand with pre-mounted toroidal transformer) 1. Mounting of the additional weight and mounting of the half rings are not applicable. - Page 18 Dr. Mach Stand for Mach M2 Lamps and Engineering Tighten the 2 fixing screws M4x8. Fixing screws 3. Changing the fuses To protect the transformer and the end device, the fuses are installed. WARNING! ELECTRICAL SHOCK For all maintenance work, switch off the equipment, pull out the main plug and secure it form being switched on again.
- Page 19 Dr. Mach Stand for Mach M2 Lamps and Engineering Push up clamp ring and cover and secure them. 2. Changing the fuses Change the broken fuse. 3. Close the cover Push up clamp ring and cover downwards. Tighten the screw.
Need help?
Do you have a question about the M2 and is the answer not in the manual?
Questions and answers
Witch type of lamp to use with Mach M2F
The Dr. Mach M2F lamp should be used with a halogen bulb of 22.8V / 80W IRC.
This answer is automatically generated
