Mach LED 115
LED 115 stand model ............................................................................. Item no. 1153101200
LED 115 wall model ................................................................................ Item no. 1153102100
Special fixations:

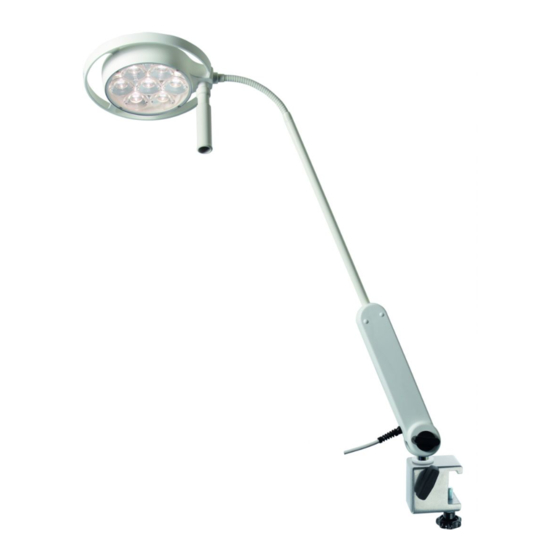

LED 115 with fixation with table clamp ................................................. Item no. 1153102500
LED 115 with fixation clamp for supply rails ........................................ Item no. 1153102601
LED 115 with fixation for round and square tubes............................... Item no. 1153102602
LED 115 with fixation plate .................................................................... Item no. 1153102604
Dr. Mach
59060001
Instructions for use
MACH LED 115
Spot Light with LED Technology
GmbH u. Co., Flossmannstrasse 28, D-85560 Ebersberg
Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50
Internet: www.dr-mach.com, E-mail:
Edition 01
Dr. Mach
Lamps and Engineering
info@dr-mach.de
02.08.2012 / Bak Page 1/15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dr. Mach LED 115
Summary of Contents for Dr. Mach LED 115
- Page 1 Special fixations: LED 115 with fixation with table clamp ..........Item no. 1153102500 LED 115 with fixation clamp for supply rails ........Item no. 1153102601 LED 115 with fixation for round and square tubes....... Item no. 1153102602 LED 115 with fixation plate ..............Item no. 1153102604 Dr.
-
Page 2: Table Of Contents
Dr. Mach Mach LED 115 Lamps and Engineering List of contents Safety instructions ..................page 3 Mounting instructions ..................page 4 2.1 Mounting the mobile stand ..............page 4 2.2 Mounting the light ................... page 5 2.3 Wall attachment ..................page 5 2.4 Table attachment .................. -
Page 3: Safety Instructions
The manufacturer is not liable for personal or material damages if the lamp or the stand is misappropriate or incorrectly operated or misused. General instructions All Dr. Mach stand lamps are supplied with The lamp is supplied with integrated connec- all installation and connection parts and tion lead and earthed plug. -
Page 4: Mounting Instructions
Dr. Mach Mach LED 115 Lamps and Engineering 2. Mounting instructions Extent of supply 1x 5-footed plastic central base 2x extension arms with blocking rollers 2x extension arms with electrically conductive rollers 1x extension arm with roller ... -
Page 5: Mounting The Light
Mark the position of the holes to be drilled in the wall using the wall bracket. Drill the holes and insert dowels provided by the customer. Dr. Mach does not include dow- els in the scope of supply. ... -
Page 6: Directions For Use
Dr. Mach Mach LED 115 Lamps and Engineering 3. Directions for use 3.1 Stand foot The five-foot stand is equipped with two op- posing braked wheels A. Set the brake by pressing the pedal S on the roller. Unlock by lifting the pedal again. -
Page 7: Operating The Light
Dr. Mach Mach LED 115 Lamps and Engineering 3.3 Operating the light 3.3.1 ON/OFF switch Push the switch 16 on the power supply housing to switch the light on and off. 3.3.2 Positioning Use the clamping lever 17 on the power supply housing to position the light arm. -
Page 8: Electronic Light Intensity Control
Dr. Mach Mach LED 115 Lamps and Engineering 3.3.3 Electronic light intensity control The light is supplied with an electronic light inten- sity control. The light intensity can be adjusted and set at the key pad 19 on the power supply housing as fol- lows: ... -
Page 9: Maintenance
Lamps and Engineering 5. Maintenance The light Mach LED 115 is equipped with a clamping lever on the power supply housing. After the mounting of the light with the mobile stand or the other fixation designs this clamping lever must be adjusted according to the customer’s requirements. -
Page 10: Data
Arm + arm and Lamp head premounted Mounting lamp head arm mounted to stand Light head Mach LED 115 Mach LED 115 Central light intensity 60.000 Lux at a distance of 0,5 meters Colour rendering index R Light field size... -
Page 11: Electrical Data
Dr. Mach Mach LED 115 Lamps and Engineering 6.2 Electrical Data Mach LED 115 Power consumption 10 W Operating voltage DC 24 V DC Current 0,42 A 6.3 Environmental conditions Operation Min. Max. Temperature +10°C +40°C Relative atmospheric humidity 30 %... -
Page 12: Ce-Mark
Lamps and Engineering 7. CE-mark The products Mach LED 115 comply with the standards 93/42/EEC for medical products of the European Community’s Council. Dr. Mach applies the standard EN 60601-2-41. Dr. Mach GmbH is certified according to DIN EN ISO 13485:2003. -
Page 13: Electromagnetic Compatibility
Guidance and manufacturer´s declaration – electromagnetic emission The MACH LED 115 is intended for use in the electromagnetic environment specified below. The customer or the user of the MACH LED 115 should assure that it is used in such an environment. Emissions test... - Page 14 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MACH LED 115 is used exceeds the applicable RF compliance level above, the MACH LED 115 should be observed to verify normal operation.
- Page 15 RF communications equipment and the MACH LED 130 The MACH LED 115 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The custom- er or the user of the MACH LED 115 can help prevent electromagnetic interference by maintaining a minimum distance between portable...
