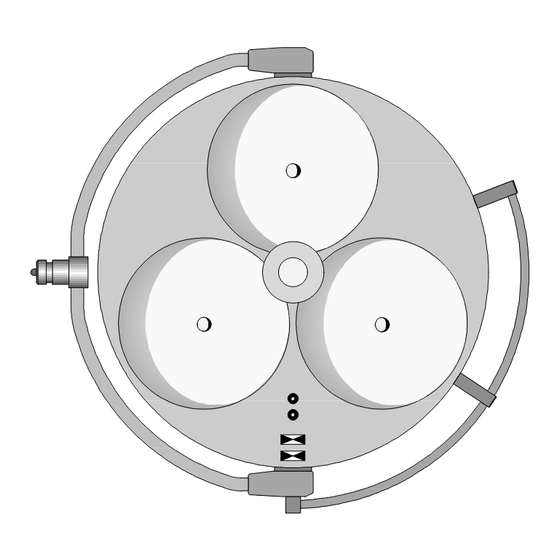

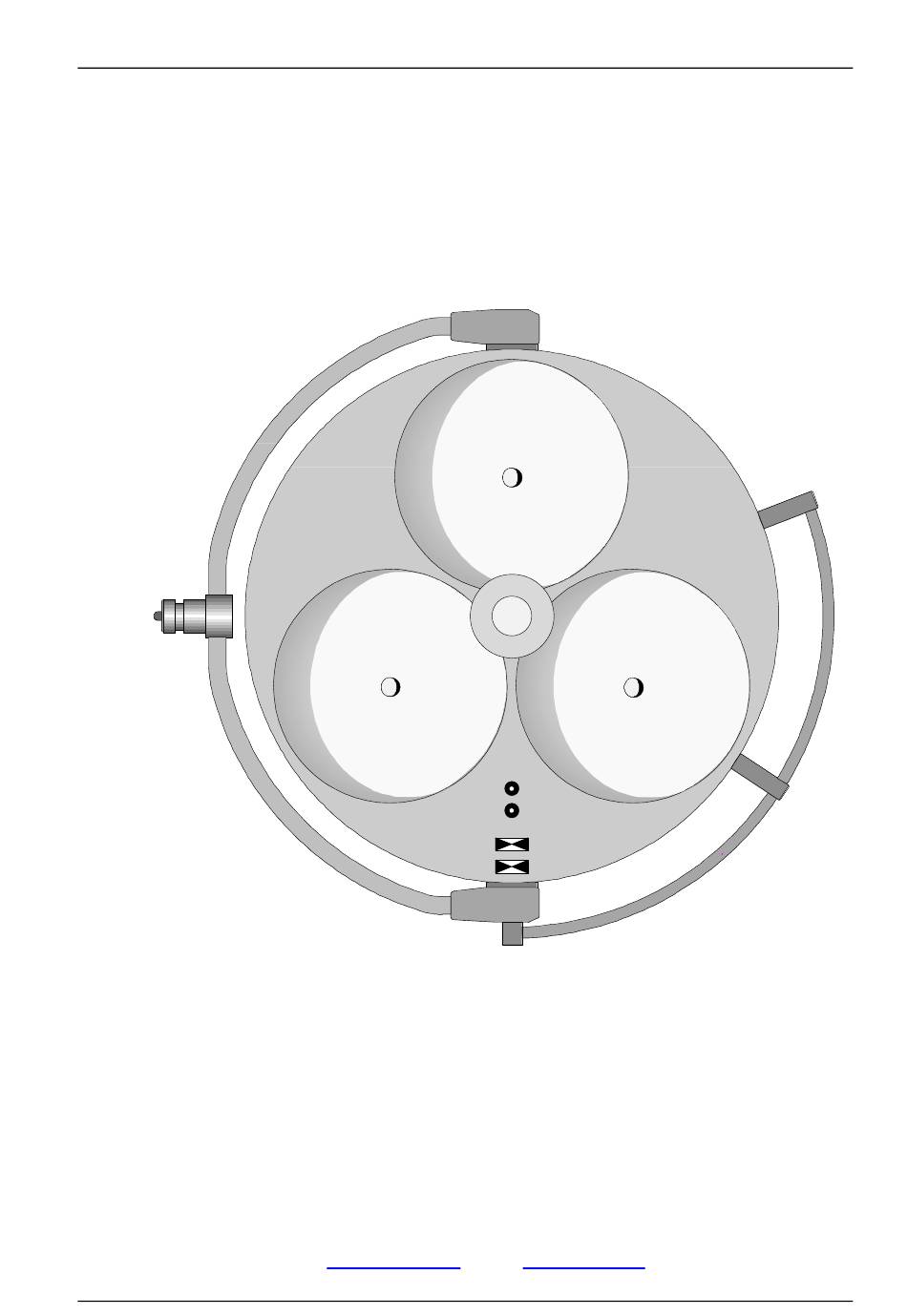

Dr. Mach
Trigenflex R96
Ceiling, Wall, Standmodel
Lamps and Engineering
DIRECTIONS FOR USE
Trigenflex R96
Stand-Lamp ___________________________________ Order. No. 3502 3012 00
Wall-Lamp _____________________________________ Order. No. 3502 3021 00
Single-Ceiling-Lamp ____________________________ Order. No. 3502 3031 25
Order. No. 3502 3031 30
Ceiling-Lamps - Combinations
Dr. Mach
GmbH u. Co., Flossmannstrasse 28, D-85560 Ebersberg
Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50
Internet: www.dr-mach.com, E-mail:
info@dr-mach.de
59230001
Edition 01
18.02.2002 / Bak Page 1/23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dr. Mach Trigenflex R96
Summary of Contents for Dr. Mach Trigenflex R96
- Page 1 Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering DIRECTIONS FOR USE Trigenflex R96 Stand-Lamp ___________________________________ Order. No. 3502 3012 00 Wall-Lamp _____________________________________ Order. No. 3502 3021 00 Single-Ceiling-Lamp ____________________________ Order. No. 3502 3031 25 Order. No. 3502 3031 30 Ceiling-Lamps - Combinations Dr.
-
Page 2: Table Of Contents
List of contents 1. Safety instructions ..................Page 3 2. Operating the lamp Trigenflex R96.............Page 4 2.1 Checking the lamp Trigenflex R96 with light intensity control....Page 4 2.2 ON/OFF switch, light intensity adjustment..........Page 6 2.3 Positioning....................Page 7 2.4 Light field adjustment (merging of lightfields) ........Page 7 3. -
Page 3: Safety Instructions
Lamps and Engineering Dear customer! Congratulations! You have just bought Dr. Mach's newly developed light system R96. The outstanding feature of this light system is its general colour rendition factor R a = 96.5 which had hitherto been unat- tainable for examination and surgery purposes. This means that the colours are rendered naturally and in full contrast, with a pleasant light around the operating site. -
Page 4: Operating The Lamp Trigenflex R96
The dielectric filter disk between reflector and splinter protection disk prevents a damaging heating of the illuminated area. The lamp may not be used without the dielectric filter. 2.1 Checking the lamp Trigenflex R96 with light intensity control • Voltage measurement and setting Before using the OT-lamps, a voltage measurement and, if necessary, a voltage setting has to be done. - Page 5 Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering ♦ Voltage measurement at the control board Please check, whether the power supply is supplying AC or DC. Voltage measurement at DC Pay attention to the polarisation during the installation.
-
Page 6: On/Off Switch, Light Intensity Adjustment
There are no ON/OFF switches on the lamp. The customer must provide a two-pole ON/OFF switch (see also point 5 of the mounting instructions). Remark: In case of Trigenflex R96 lights for power supply 24V there is no switch for two-step light inten- sity adjustment. -
Page 7: Positioning
6 are used in this case. 2.4 Light field adjustment (merging of lightfields) The lights Trigenflex R96 are equipped with the function of lightfield-realignment. That means, you can merge the separated light- fields to one spot as shown in the figure. -
Page 8: Cleaning
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 3. Cleaning 3.1 Sterilisable handle At delivery the lamp is equipped with the handle sleeve 1. The handle sleeve is removable and ster- ilisable. Before using the first time and before every use the handle sleeve must be cleaned, disinfected and sterilised. - Page 9 Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering When cleaning / disinfecting, the following procedures must be followed: Process Time (sec.) Zone 1 Pre-rinse, external, cold, 10 – 15°C Washing, acidic, external 35°C Draining time Re-rinse, external approx. 80°C Draining time Re-rinse, external approx.
-
Page 10: Lamp Head, Splinter Protection Disk
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 3.2 Lamp head, splinter protection disk The lamp head 2 has a high-quality surface, which can be cleaned with conventional cleaning agents. The splinter protection disks 3 are made of a high- quality plastic. -
Page 11: Maintenance
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 4. Maintenance The light has been designed and built so that regular maintenance intervals are not necessary. In order to keep the system easy running throughout its life span we recommend that the hinges be greased once a year with an acid-free grease. -
Page 12: Adjustments At The Standmodel
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 4.2 Adjustments at the standmodel ♦ Swivel arm You can fasten the move of the swivel arm 1 by adjusting lever 2. 4.3 Adjustments at the lamp head ♦ Adjusting the lamp bow... -
Page 13: Changing Of Spare Parts
Lamps and Engineering 4.4 Changing of spare parts 4.4.1 Changing the halogen bulbs Dr. Mach uses special halogen bulbs as illuminants. Only original Dr. Mach replacement bulbs may be used. The use of other bulbs can lead to a considerable reduction of the light power and increase in the thermal load. -
Page 14: Changing The Fuses
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 4.4.2 Changing the fuses ♦ Ceiling/ wall/ stand model Power supply with 24V AC/DC In the case of designs for power supply with 24V AC/DC the necessary fuses are provided by the customer. -
Page 15: Changing The Filter Disk
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 4.4.3 Changing the filter disk The dielectric filter disk between reflector and splin- ter protection disk prevents a damaging heating of the illuminated area. The lamp may not be used without this filter To change the filter disk proceed as follows: •... -
Page 16: Data
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 5. Data 5.1 Technical data Design with 24 Volt alternating current rated voltage rated current frequency Hertz fuse class of protection Design with 230 Volt alternating current primary side secondary side... -
Page 17: Wiring
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 5.2 Wiring Design with 24 Volt 22,8/24V Design with 230 Volt 250V 230V 23,5V 1 - two-step switch, depending on design Design with 120 Volt 127V 110V 23,5V 1 - two-step switch, depending on design... -
Page 18: Environmental Conditions
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 5.3 Environmental conditions Operation Min. Max. Temperature +10°C +40°C Relative atmospheric humidity Air pressure 700 hPa 1060 hPa Transport / Storage Min. Max. Temperature -10°C +50°C Relative atmospheric humidity Air pressure... -
Page 19: Specification Of Fuse
Design with 120 Volt Visible fuse 5x20 Delay action 4,00A 6.3 CE-mark The products Trigenflex R96 comply to the standards 93/42/EEC for medical products of the European Community’s Council. 7. Disposal The OT- light Trigenflex R96 does not contain any danger goods. -
Page 20: Spare Parts
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 8. Spare parts 8.1 Design with 230/120 Volt - built in transformer (Ceiling/ wall model) 17,18 39,40 36,37,38 12,13 4,5,6,7 59230001 Edition 01 18.02.2002 / Bak Page 20/23... -
Page 21: Swivel Arm - Stand Model
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 8.2 Design for power supply 24 Volt (Ceiling/ wall/ stand model) The light does not have a built in transformer, fuses, ON/OFF switch and change-over switch. For spare parts see point 8.1, excluding the parts mentioned above. -
Page 22: Spare Parts List
Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering 8.3 Spare parts list Item Qty. Name EDVNO Remarks Lamp bow complete 23100002 alternative Sliding contact -pin 67330002 1x in 1 and 25 or 26 Bolt 22080203 Corrugated washer 65542002... - Page 23 Dr. Mach Trigenflex R96 Ceiling, Wall, Standmodel Lamps and Engineering Item Qty. Name EDVNO Remarks Disk bearer complete 23160002 Disk bearer ring with quick-release fastener 23161001 Splinter protection disk 23200201 Dielectric filter disk 23250201 Retaining ring 23160205 Retaining spring 23160202...
