Dr. Mach MACH 120F Series Instructions For Use Manual

Ceiling, wall, new-type stand model
Hide thumbs Also See for MACH 120F Series:
Table of Contents

Advertisement

Quick Links

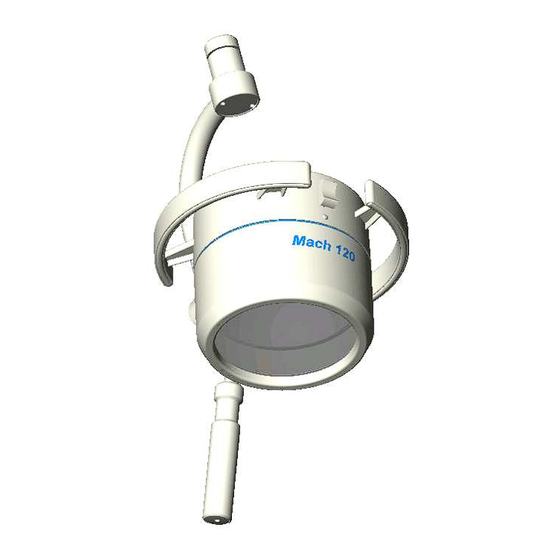

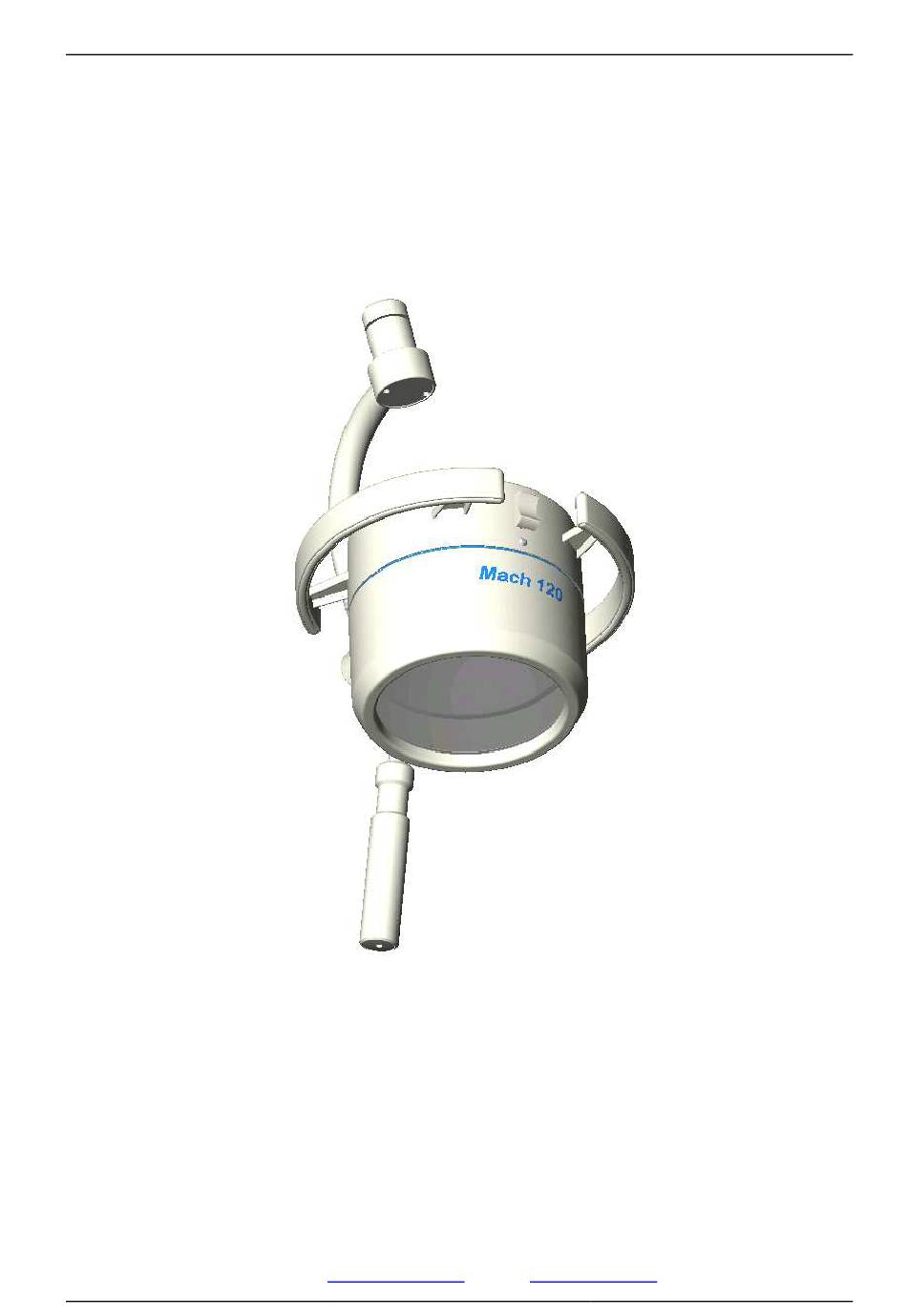

MACH 120F/120
Ceiling, Wall, new-type stand model
Mach 120F ceiling lamp ____________________________Order No. 1202 2033 30
Mach 120 ceiling lamp _____________________________Order No. 1201 1033 30
Mach 120F wall lamp ______________________________Order No. 1202 2022 02
Mach 120 wall lamp _______________________________Order No. 1201 1022 02
Mach 120F, new-type stand model ___________________Order No. 1202 2013 00
Mach 120, new-type stand model ____________________Order No. 1201 1013 00
Dr. Mach
59080001
Ceiling, Wall, Stand model
Instructions for use
MACH 120F/120
GmbH u. Co. KG, Flossmannstrasse 28, D-85560 Ebersberg
Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50
Internet: www.dr-mach.com, E-mail:
Edition 08
Dr. Mach
Lamps and Engineering
info@dr-mach.de
06.02.2010 / Bak Page 1/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MACH 120F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dr. Mach MACH 120F Series

Summary of Contents for Dr. Mach MACH 120F Series

  • Page 1 Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering Instructions for use MACH 120F/120 Ceiling, Wall, new-type stand model Mach 120F ceiling lamp ____________________________Order No. 1202 2033 30 Mach 120 ceiling lamp _____________________________Order No. 1201 1033 30 Mach 120F wall lamp ______________________________Order No. 1202 2022 02 Mach 120 wall lamp _______________________________Order No.

  • Page 2: Table Of Contents

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering List of contents Safety instructions ..................Page 3 Operating the lamp Mach 120F/120.............. Page 4 2.1 ON/OFF switch ..................Page 4 2.2 Positioning ....................Page 4 2.3 Light field adjustment (focusing) ............. Page 4 Cleaning .......................

  • Page 3: Safety Instructions

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 1. Safety instructions Please pay attention to the directions for use when handling the lamp. Attention: This device is not suitable for use in hazardous locations. The lamp is classified As a Group 1 device according to the MedGV (Medical Ordinance).

  • Page 4: Operating The Lamp Mach 120F/120

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 2. Operating the lamp Mach 120F/120 There are two types of Mach 120F/120 -lamps available: • Mach 120F with focusable light field and dielec- tric light system Ra=93 • Mach 120 with fix-focus and standard light sys-...

  • Page 5: Cleaning

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 3. Cleaning 3.1 Sterilisable handle The lamps Mach 120F/120 can be equipped as an option with a sterilisable handle 50. The sterilisable handle 50 can be removed and sterilised at temperatures up to a max. of 134° C.

  • Page 6: Maintenance

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 4. Maintenance Maintenance and inspection of the light should be done every two years. In order to keep the system easy-running throughout its life span, we recommend that the hinges should be greased once a year with acid-free grease.

  • Page 7: Changing Of Spare Parts

    Lamps and Engineering 4.3 Changing of spare parts 4.3.1 Changing the halogen bulbs Dr. Mach uses special halogen bulbs as illuminants. Only original Dr. Mach replacement bulbs may be used. The use of other bulbs can lead to a considerable reduction of the light power and increase in the thermal load.

  • Page 8: Changing The Protective Disk

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 4.3.3 Changing the filter disk The filter disk between reflector and protective disk (Mach 120F only) prevents a damaging heating of the illuminated area. ATTENTION! The lamps may not be used without this filter.

  • Page 9: Changing The Filter Disk

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 4.3.4 Changing the protective disk In case you notice a impediment of the light quality because of a dull protective disk, it may be neces- sary to change the disk.

  • Page 10: Conversion To Sterilisable Handle

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 4.3.5 Conversion to sterilisable handle Extent of supply: − sterilisable handle sleeve − couple − one screw M4x35 DIN 912:A2 with safety lake • Turn off the lamp. •...

  • Page 11: Data

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 5. Data 5.1 Technical data Mach 120F/120 design with 22,8 Volt ~ Wechselstrom alternating current Pr Primärseitig 230V / 0,22A primary side Sek Sekundärseitig 22,8V / 2,20A secondary side...

  • Page 12: Specification Of Fuse

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering Attention! Beginning with January 15th 2010 the formerly known verification document is no longer delivered with the light. This document can be requested when needed. Please provide the serial number of respective light.

  • Page 13: Spare Parts

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 8. Spare parts 8.1 Mach 120F ceiling/wall model 33,34,39 23,24,25,26 35,36 20,21 54,14 28,29 59080001 Edition 08 06.02.2010 / Bak Page 13/19...

  • Page 14: Mach 120 Ceiling/Wall/Stand Model

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 8.2 Mach 120 ceiling/wall model 33,34,39 23,24,25,26 35,36 20,21 54,14 28,29 59080001 Edition 08 06.02.2010 / Bak Page 14/19...

  • Page 15: Spare Parts List

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 8.3 Spare parts list Item Qty. Name EDVNO Remarks Base frame 08030201 Bottom part of lamp housing 08012003 Cover 08030304 Spacer sleeve 08062201 Self-tapping screw M2,9x9,5 DIN 7981 65132005...
  • Page 16 Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering Pos. Stck Benennung EDVNR Bemerkung Cover 08030303 Mach 120 only Holder (spring) 08012202 Mach 120F only Conversion filter D130 Borofloat 67390202 Mach 120F only Heat protection filter 07250201 Mach 120 only...

  • Page 17: Electromagnetic Compatibility

    Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering 9. Electromagnetic compatibility Table 201 – Guidance and manufacturer´s declaration – electromagnetic emission – for all EQUIPMENT AND SYSTEMS (see 6.8.3.201 a) 3)) Guidance and manufacturer´s declaration – electromagnetic emission The MACH 120 / 120 F is intended for use in the electromagnetic environment specified below.
  • Page 18 Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering Table 204 – Guidance and manufacturer´s declaration – electromagnetic immunity – for EQUIPMENT and SYSTEM that are not LIFE-SUPPORTING (see 6.8.3.201 b)) Guidance and manufacturer´s declaration – electromagnetic immunity The MACH 120 / 120 F is intended for use in the electromagnetic environment specified below.
  • Page 19 Dr. Mach MACH 120F/120 Ceiling, Wall, Stand model Lamps and Engineering Table 206 – Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM - for EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING (see 6.8.3.201 b))
