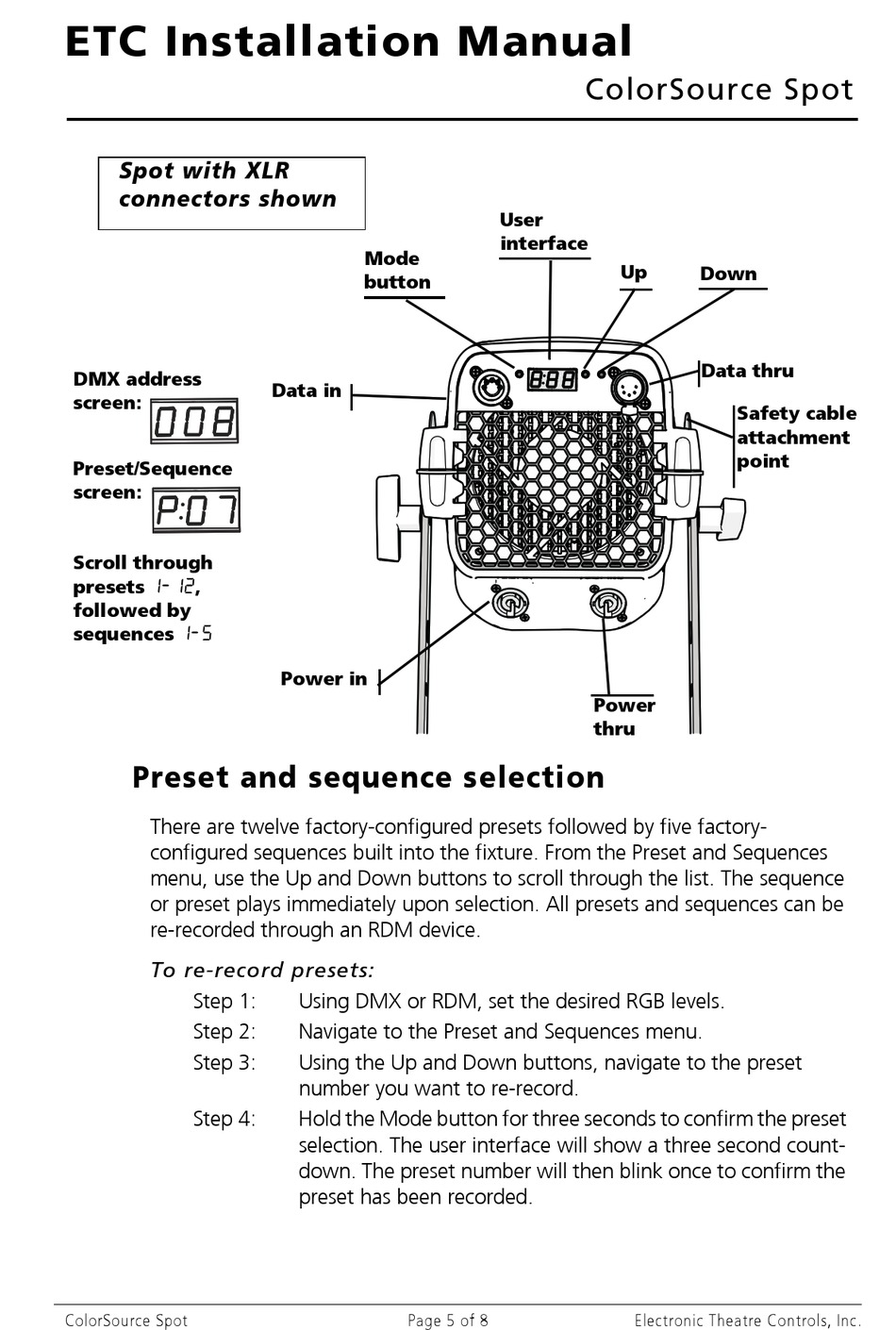

ETC Installation Manual
Spot with XLR
connectors shown
DMX address
screen:
Preset/Sequence
screen:
Scroll through

presets ,
followed by

sequences

Preset and sequence selection

There are twelve factory-configured presets followed by five factory-
configured sequences built into the fixture. From the Preset and Sequences
menu, use the Up and Down buttons to scroll through the list. The sequence
or preset plays immediately upon selection. All presets and sequences can be
re-recorded through an RDM device.
To re-record presets:
Step 1:
Step 2:
Step 3:
Step 4:
ColorSource Spot
Mode
button
Data in
Power in
Using DMX or RDM, set the desired RGB levels.
Navigate to the Preset and Sequences menu.
Using the Up and Down buttons, navigate to the preset
number you want to re-record.
Hold the Mode button for three seconds to confirm the preset
selection. The user interface will show a three second count-
down. The preset number will then blink once to confirm the
preset has been recorded.
Page 5 of 8
ColorSource Spot
User
interface
Up
Power
thru
Electronic Theatre Controls, Inc.
Down
Data thru
Safety cable
attachment
point
