Zamel exta PBM-07 Manual Instruction

BISTABLE RELAY PBM-07
DESCRIPTION
The PBM-07 bistable relay is used to con-
trol lighting or any other device by means
of unipolar push buttons connected in a
parallel way. The relay is equipped with
two outputs activated by means of impuls-
es given to the (IN) input. It allows to con-
trol two circuits / branches simultaneously.
The control impulse must be the "L" line
signal. The trigger input structure enables
cooperation with backlit push buttons (in-
cluding LED backlight). The total current
of backlight for the (IN) input can not ex-
ceed 1,5 mA. The device is designed to be
mounted in distribution boards (TH35 rail).
LEDs on the front panel indicate power
supply (green LED) and the output status
(2 x red LED).
FEATURES
● control of lighting and other devices
according to a defined sequence,
● output status indicated by red LEDs (2
x red LED),
● power supply indication (1 x green LED),
● system release only from the "L" line,
● possibility of cooperation with unipolar
backlit push buttons,
● two-wire control installation,
● two independent relay outputs – (dry
contacts) 2 NO /NC contacts with a
maximum load of 16 A,
● mounting in distribution boards
(TH35 rail).
The device is designed for sin-
gle-phase installation and must
be installed in accordance with
standards valid in a particular
CAUTION!
country. The device should be
connected according to the details inc-
luded in this manual instruction. Instal-
lation, connection and control should be
carried out by a qualified electrician staff,
who act in accordance with the service
manual and the device functions. In case
of casing dismantling, the guarantee is
lost and an electric shock may occur.
Before installation make sure the con-
nection cables are not under voltage. Im-
proper transport, storage, and use of the
device influence its wrong functioning.
It is not advisable to install the device in
the following cases: if any device part is
missing or the device is damaged or de-
formed. In case of improper functioning
of the device contact the producer.
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste.
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamel.com, e-mail: marketing@zamel.pl
TECHNICAL DATA
Input (supply) terminals: L, N
Nominal supply voltage: 230 V AC
Nominal supply voltage tolerance: -15 ÷ +10 %
Nominal frequency: 50 Hz
Nominal power consumption:
Optical signalling of relay status: 2x red LED
Release control current: 7,5 mA
Cooperation with backlit push buttons: yes
Total current of the push button backlight: < 1,5 mA
Minimum impulse release time: 70 ms
Relay contact parameters: NO/NC – 16 A / 250 VAC
Number of connection terminals: 10
Cross-section of connection cables: 0,2 ÷ 2,5 mm
Operating temperature range: -20 ÷ +45
Casing protection degree: IP20
Overvoltage category: II
Reference standard: PN-EN 60669-1, PN-EN 60669-2-1

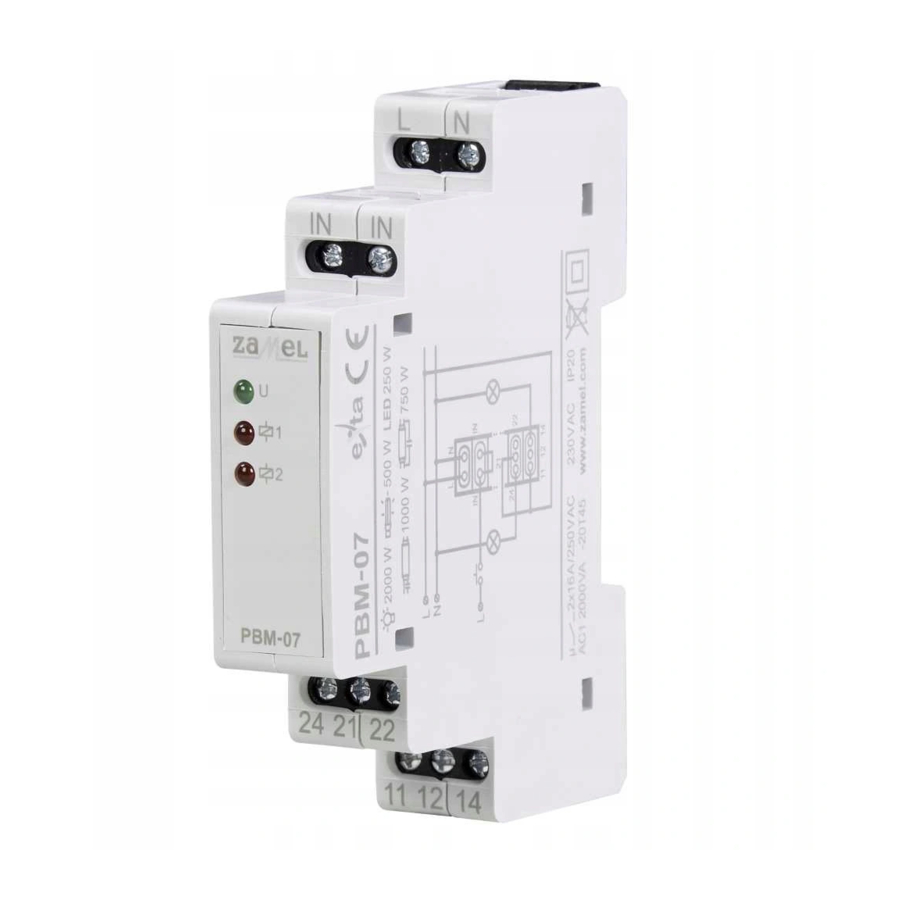

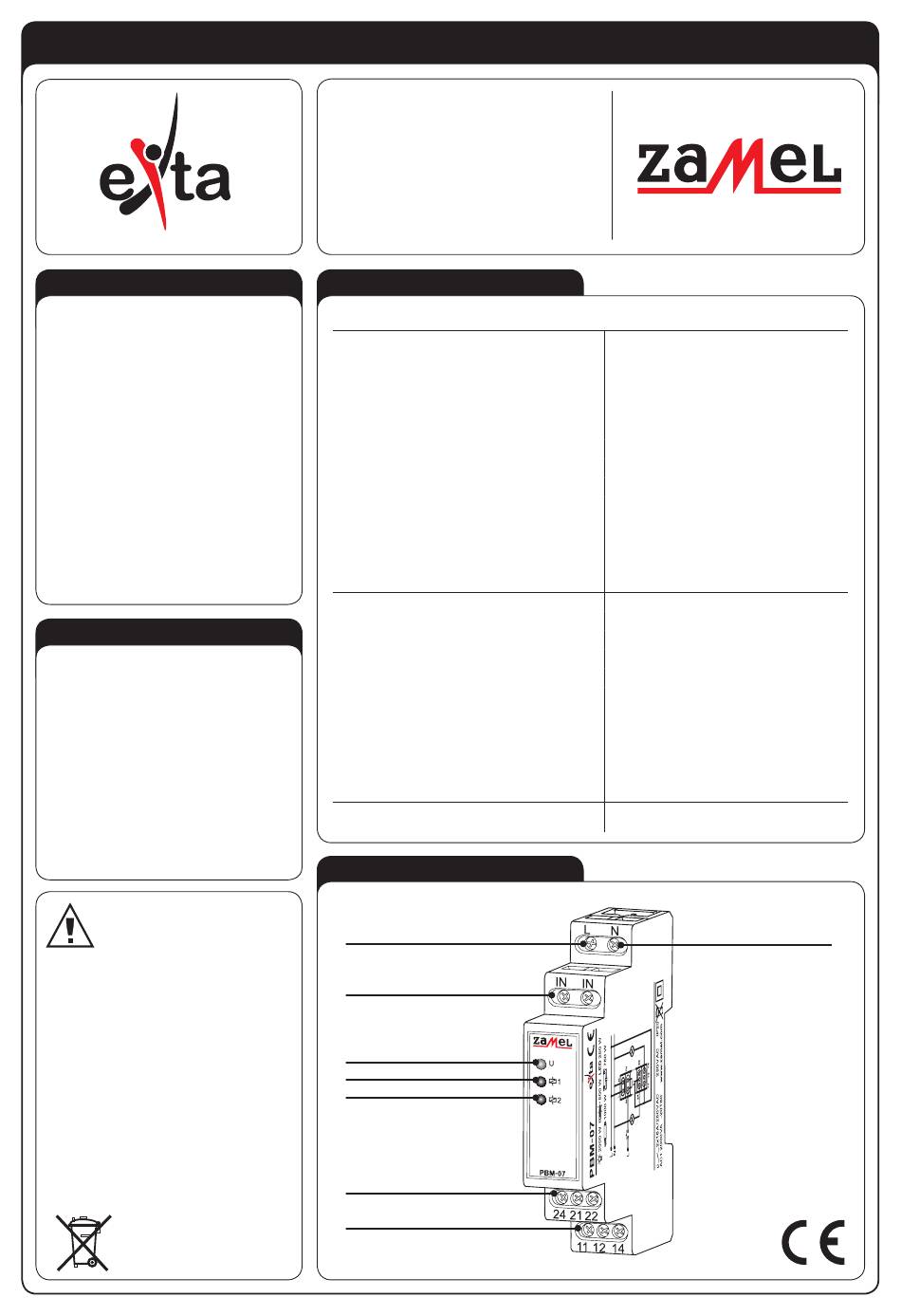

APPEARANCE
Input (supply) terminal (L)
Release terminals (IN)
Power supply indicator
PK1 status indicator
PK2 status indicator
PK2 (21,24,22) output relay
terminals
PK1 (11,14,12) output relay
terminals
MANUAL INSTRUCTION
PBM-07
stand-by: 0,4 W
2 active outputs: 1,1 W
Release terminals: IN, IN
Output devices: 2 x relays
C
o
Operating position: free
Casing mounting: TH35 rail
Protection class: II
Pollution degree: 2
Dimensions: 90 x 17,5 x 66 mm
Weight: 0,090 kg
PN-EN 61000-4-2,3,4,5,6,11
2
Input (supply) terminal (N)
plik: inst_ext_en_pbm-07 | modyfikacja: 25.01.2016
