Zamel PCM-08 Instruction Manual

TIME RELAY
- MOTOR START (STAR/DELTA) PCM-08

DESCRIPTION

The PCM-08 time relay is used to
control the STAR-DELTA contactor
switch. It is applied in three-phase mo-
tor control systems. This control me-
thod allows to reduce starting currents
in case of motor units with a capacity
of more than 4-5 kW and additionally it
provides safety. The PCM-08 device has
two independent relay outputs activated
according to the settings of P1-P3 po-
tentiometers. It is possible to adjust the
starting time (in the STAR system) and
time interval of star to delta switching.
Relay operation is triggered by applying
power supply voltage to the L, N supply
terminals. The device is designed to be
mounted in distribution boards (TH35
rail). The LEDs on the front panel in-
dicate power supply (LED green), and
device operating mode (LED red).

FEATURES

● Three-phase delta-star motor control,
● current decrease during high power
motor start,
● device mode optical signalling (LED
red),
● supply voltage optical signalling (LED
green),
● trigger by applying supply voltage,
● starting time adjustment (STAR sys-
tem),
● interval time adjustment of STAR to
DELTA switching,
● two independent relay outputs, dry
contact 2 x NO/NC of 10 A capacity,
● mounting in distribution boards (TH35
rail).
The symbol means selective
collecting of electrical and
electronical equipment. It
is forbidden to put the used
equipment together with other
waste.
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamel.com, e-mail: marketing@zamel.pl

TECHNICAL PARAMETERS

Power supply terminals: L, N
Nominal supply voltage: 230 V AC
Input voltage tolerance: -15 ÷ +10 %
Nominal power consumption: 0,8 W
Supply voltage control indicator: LED green
Interval time adjustment of STAR to DELTA switching: discreet – 8 ÷ 250 ms
Starting time adjustment (STAR system): 1 ÷ 100 s with multiplier 1÷10
Number of terminal clamps: 8
Cross-section of connecting cables: 0,2 ÷ 2,5 mm
Operating temperature range: -20 ÷ +50 °C
Casing protection degree: IP20

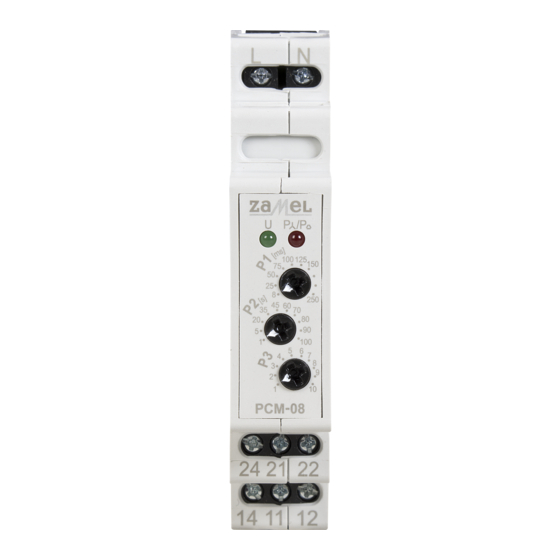

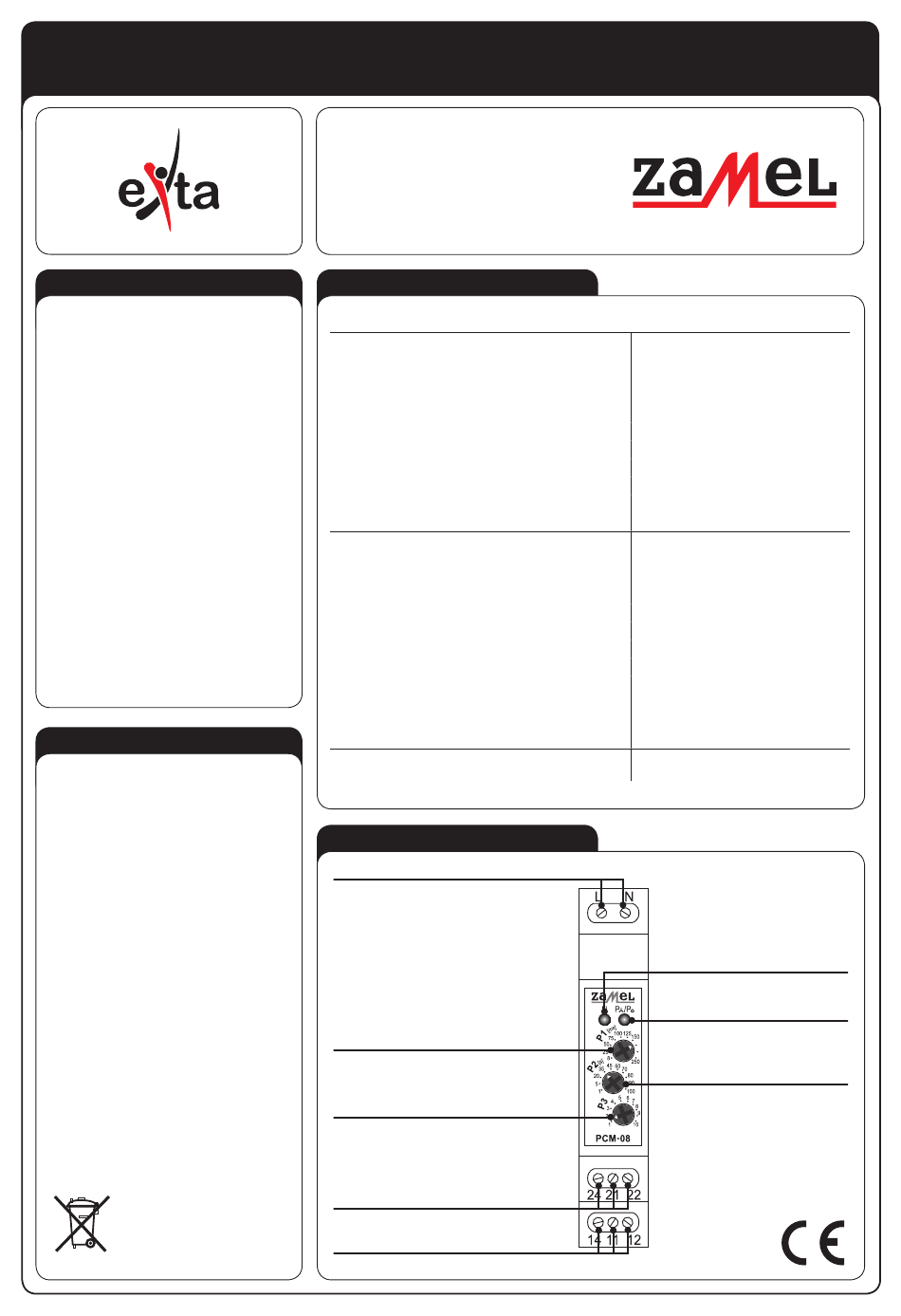

APPEARANCE

Power supply terminals
P1 potentiometer
Interval time adjustment
of STAR to DELTA switching
(strobe adjustment)
P3 potentiometer
Starting time multiplier
in the star system 1÷10
(strobe adjustment)
Relay output terminals
PK2 (24, 21, 22)
Relay output terminals
PK1 (14, 11, 12)
PCM-08
Nominal frequency: 50 Hz
Device mode indicator: LED red
Output elements: 2 x relay
Output relay parameters: NO/NC – 10 A / 250 VAC
Operating position: free
Casing mounting: TH35 rail (1-MOD casing)
Protection level: II
Overvoltage category: II
Pollution degree: 2
Surge voltage: 1 kV (PN-EN 61000-4-5)
Dimensions: monomodular 90x17,5x66 mm
Weight: 0,08 kg
Reference standard: PN-EN 60669-1, PN-EN 60669-2-1,
PN-EN 61000-4-2,3,4,5,6,11
INSTRUCTION
MANUAL
2
Power supply optical signalling
Device operating mode
optical signalling
P2 potentiometer
starting time value adjustment
(STAR system),
plik: inst_ext_gb_pcm-08 | modyfikacja: 30.12.2016
