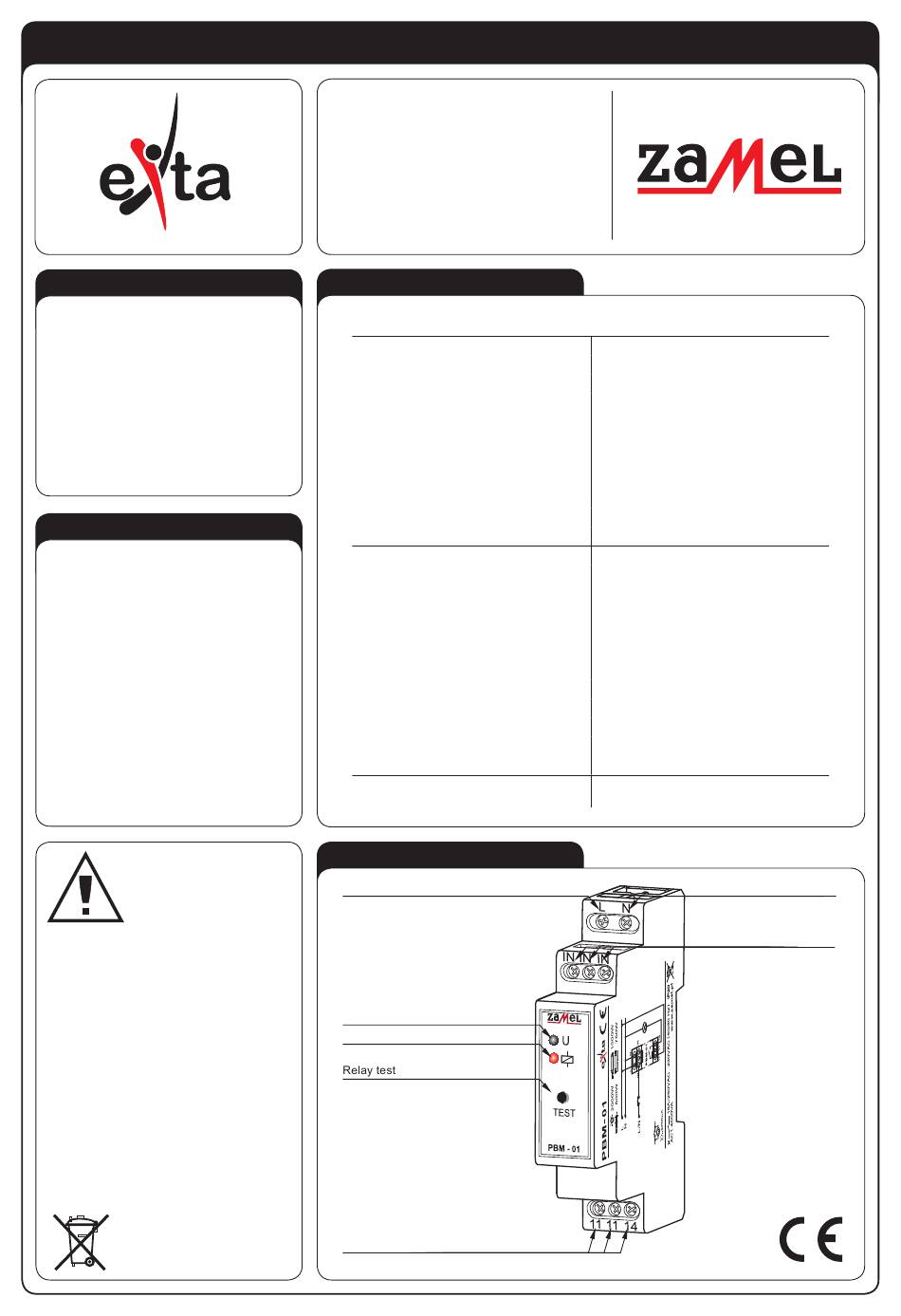

Zamel PBM-01 Instruction Manual

BISTABLE RELAY PBM-01

DESCRIPTION

The bistable relay PBM-01 is used to
control lighting or other devices by me-
ans of monomodular pushbuttons con-
nected in a parallel way. Pushing any
button causes switching on or switching
off the devices connected to output termi-
nals. Using this system gives the possibi-
lity of creating "intelligent" lighting control
systems.

FEATURES

● Bistable lighting control Input rated in-
dicator – LED green,
● relay mode indicator – LED red,
● system releasing from the L or N ca-
ble,
● cooperation with monostable push-
buttons equipped with illumination
lamps,
● TEST function,
● double-wire controll installation,
● voltage relay output - one NO (normal
closed) contact max 16 A capacity
● monomodular casing TH-35 DIN rail
installation.
The device is designed for
single-phase installation and
must be installed in accor-
dance with standards valid
in a particular country. The
device should be connected
CAUTION
according to the details inc-
luded in this operating manual. Installation,
Connection and control should be carried
out by a qualifi ed electrician staff, who act
in accordance with the service manual and
the device functions. Disassembling of the
device is equal with a loss of guarantee
and can cause electric shock. Before in-
stallation make sure the connection cables
are not under voltage. The cruciform head
screwdriver 3,5 mm should be used to in-
stal the device. Improper transport, storage,
and use of the device infl uence its wrong
functioning.
It is not advisable to instal the device in the
following cases: if any device part is missing
or the device is damaged or deformed. In
case of improper functioning of the device
contact the producer.
The symbol means selective
collecting of electrical and electronical
equipment. It is forbidden to put
the used equipment together
with other waste
Zakład Mechaniki i Elektroniki
ZAMEL sp.j.
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl

TECHNICAL DATA

Input (supply) terminals: L, N
Input rated voltage: 230 V~
Input voltage tolerance: -15 ÷ +10 %
Nominal frequency: 50 / 60 Hz
Rated power consumption: 24 mA
Supply voltage control indicator: LED green
Release terminals: IN, IN, IN
Release control current: 930 μA
Power/relay supply indicator: LED red
Relay operating indicator: TEST button
Output relay parameters: 1NO - 16 A / 250 V AC1 4000 VA
Number of terminal clamps: 8
Section of connecting cables: 0,2 ÷ 2,50 mm
Ambient temperature range: -20 ÷ +45
Operating position: freely
Protection degree: IP20 (PN-EN 60529)
Protection level: II
Overvoltage category: II
Pollution degree: 2
Napięcie udarowe: 1 kV (PN-EN 61000-4-5)
Reference standards: PN-EN 60669-1; PN-EN 60669-2-1

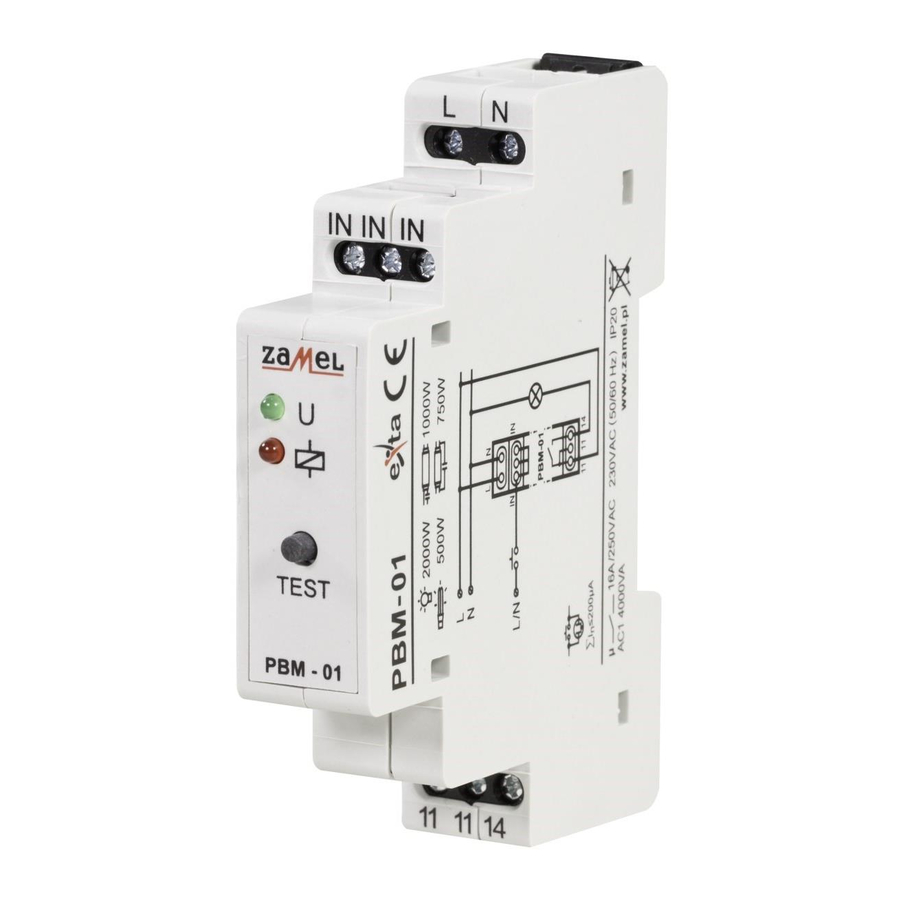

APPEARANCE

Input supply terminal (L)
Supply voltage control indicator
Power/relay supply indicator
Output (load)
relay terminals (11, 11, 14)
INSTRUCTION MANUAL
PBM-01
2
o C
Mounting: rail TH 35 (PN-EN 60715)
Dimensions: monomodular (17,5 mm) 90x17,5x66 mm
Weight: 78 g
PN-EN 61000-4-2,3,4,5,6,11
Input supply terminal (N)
Release terminals
(IN, IN, IN)
VER. 001_03.11.2009
