TIME RELAY PCM-01
DESCRIPTION
The one mode time relay PCM-01 has
a delayed switch on function (reversive)
in automation and control systems. The
relay is released by power supply voltage.
It has a wide time adjustment range from
0,1 s to 10 days. Additional ON/OFF func-
tions enable constant switch on, switch
off of the output (load). The system has
the indicators of power supply voltage, re-
lay mode, and time measure with the help
of red LED diode.
FEATURES
● Operating mode: switch on delay (input
voltage release),
● supply voltage control indicator - LED
green,
● power/relay supply indicator and time
measure - LED red,
● time measure accuracy,
● wide time adjustment range,
● constant switch on, switch off function,
● relay output - 1 change-over contact
(NO/NC) contact max 16 A capacity,
● TH 35 DIN rail installation.
The device should be connected
to a one-phase network in accord-
ance with legally binding stand-
ards. The connection method
is described in this manual. Any
NOTE
activities related to installation,
connection, and adjustment should be per-
formed by qualified electricians who have read
this user's manual and familiarised themselves
with device functions. Removing the enclosure
voids the warranty and poses a risk of electric
shock. Before installation, make sure that there
is no voltage on connection cables. To install
the device, use a cross-head screwdriver with
a diameter of 3.5 mm. The proper operation
of the device is affected by how the device is
transported, stored, and used. It is not advis-
able to install the device in the following cases:
lack of any components, damage to or defor-
mation of the device. If the device operates im-
properly, please contact the manufacturer.
Do not dispose of this device together
with other waste! To avoid harmful effects
on the environment and human health,
the worn-out device should be stored
in designated areas. Electrical waste
from households may be handed over
to the waste collector established for
this purpose free of change and in any
amount, as well as to the store when
purchasing new equipment.
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamel.com, e-mail: export@zamel.pl
TECHNICAL PARAMETERS
Input (supply) terminals: L, N
Input rated voltage: 230 V AC
Input voltage tolerance: -15 ÷ +10 %
Supply voltage control indicator: LED green
Nominal frequency: 50 / 60 Hz
Rated power consumption: 25 mA
Operating mode number: 1 (switch on delay)
Time adjustment range t: from 0,1 s to 10 days
Time measure accuracy: 0,2 %
Power/relay supply indicator and time measure: LED red
Output relay parameters: 1NO/NC - 16 A / 250 V AC1 4000 VA
Number of terminal clamps: 5
Section of connecting cables: from 0,2 to 2,50 mm
Ambient temperature range: from -20 to +60
Operating position: free
Protection degree: IP20 (PN-EN 60529)
Overvoltage category: II
Rated impulse withstand voltage: 2 kV (PN-EN 61000-4-5)
Dimensions (height / width / depth): monomodular (17,5 mm) 90x17,5x66 mm

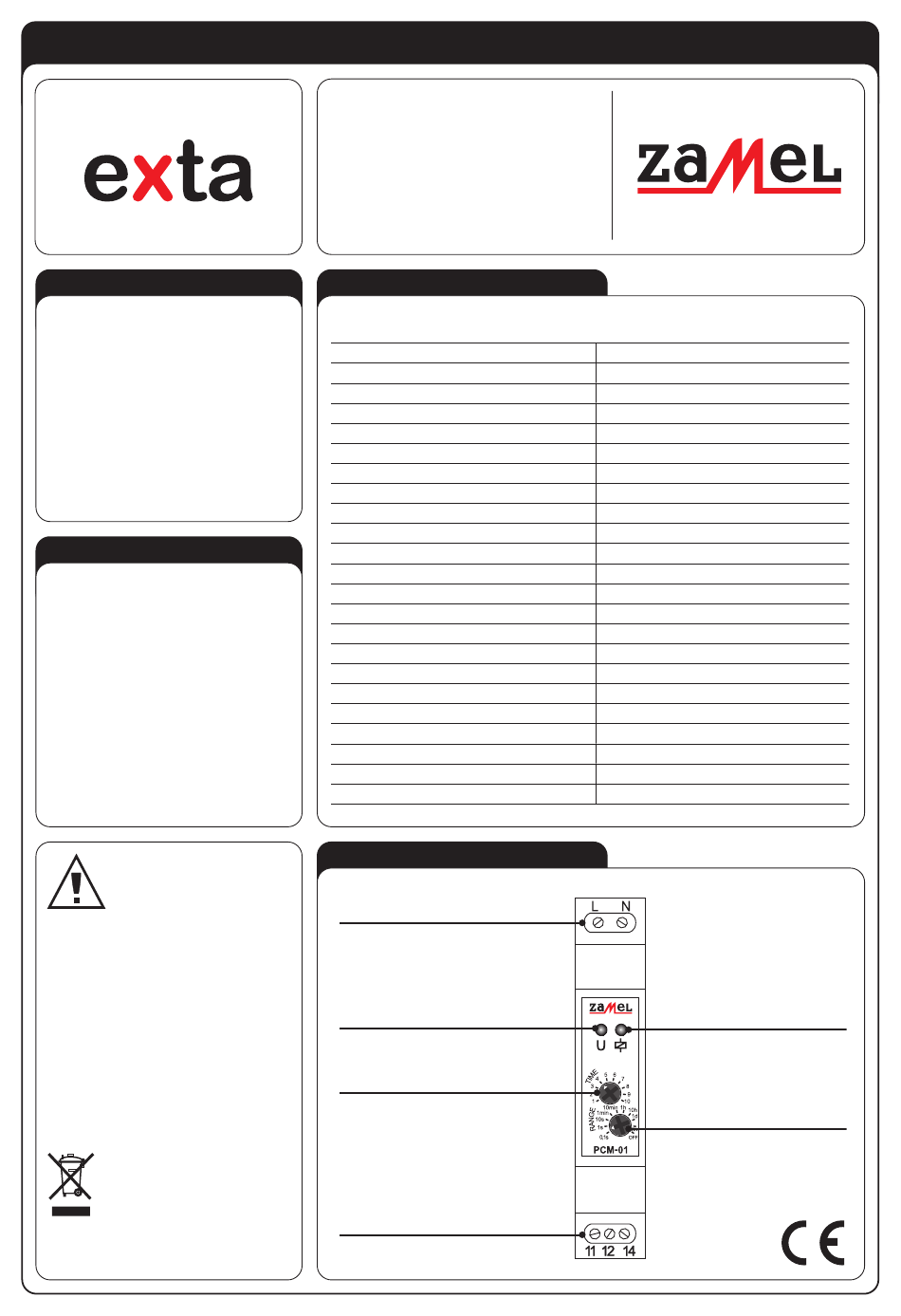

APPEARANCE

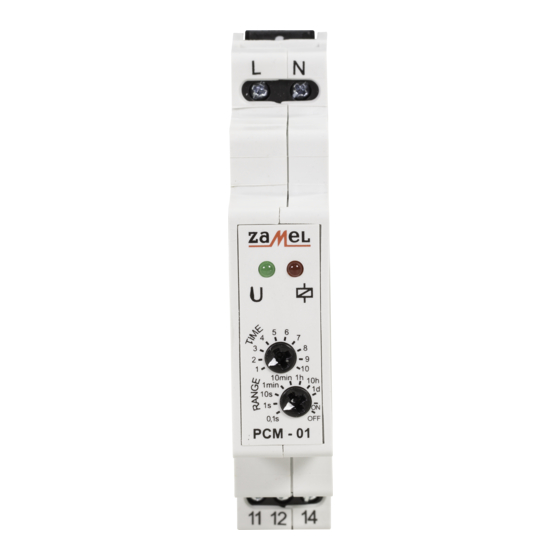

Input supply terminals (L,N)
Supply voltage control indicator
Smooth time adjustment
Output (load) relay terminals (11, 12, 14)
PCM-01
Time adjustment: 2x potentiometer (rotary + step)
Mounting: TH 35 rail (PN-EN 60715)
Pollution degree: 2
Weight: 0,08 kg
INSTRUCTION MANUAL
2
C
o
Power/relay supply indicator
Time adjustment choice
pcm-01_inst_ext_gb | 03.02.21
