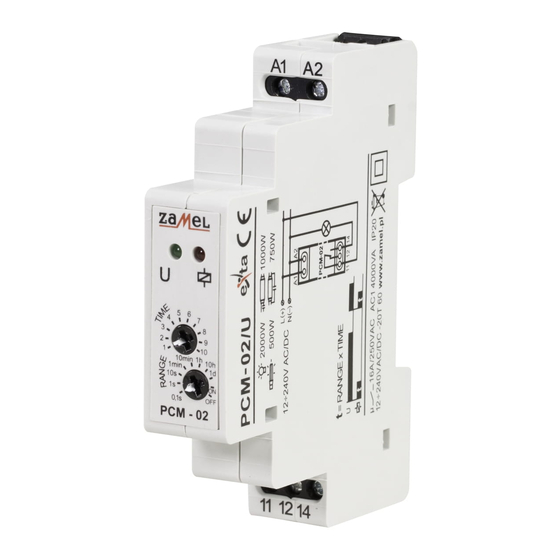

TIME RELAY PCM-02
DESCRIPTION
The one mode time relay PCM-02
has a delayed switch off function (aver-
sive) in automation and control systems.
The relay is released by power supply
voltage. It has a wide time adjustment
range from 0,1 s to 10 days. Additio-
nal ON/OFF functions enable constant
switch on, switch off of the output (load).
The system has the indicators of power
supply voltage, relay mode, and time me-
asure with the help of red LED diode..
FEATURES
● Operating mode: switch off delay (in-
put voltage release),
● supply voltage control indicator - LED
green,
● power/relay supply indicator and time
measure - LED red,
● time measure accuracy,
● wide time adjustment range,
● constant switch on, switch off func-
tion,
● relay output - 1 change-over contact
(NO/NC) contact max 16 A capacity,
● TH 35 DIN rail installation.
The device is designed for
one-phase installation and
must be installed in accor-
dance with standards valid
in a particular country. The
CAUTION
device should be connec-
ted according to the details
included in this operating manual. Installa-
tion, connection and control should be car-
ried out by a qualified electrician staff, who
act in accordance with the service manual
and the device functions. Disassembling of
the device is equal with a loss of guarantee
and can cause electric shock. Before in-
stallation make sure the connection cables
are not under voltage. The cruciform head
screwdriver 3,5 mm should be used to in-
stal the device. Improper transport, storage,
and use of the device influence its wrong
functioning. It is not advisable to instal the
device in the following cases: if any device
part is missing or the device is damaged or
deformed. In case of improper functioning
of the device contact the producer.
The symbol stands for selective
collection of electrical
and electronic devices.
Placing used devices with other
waste is not allowed
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamel.com, e-mail: marketing@zamel.pl
TECHNICAL PARAMETERS
Input (supply) terminals: L, N
Input rated voltage: 230 V AC
Input voltage tolerance: -15 ÷ +10 %
Supply voltage control indicator: LED green
Nominal frequency: 50 / 60 Hz
Rated power consumption: 25 mA
Operating mode number: 1 (switch off delay)
Time adjustment range t: from 0,1 s to 10 days
Time measure accuracy: 0,2 %
Time adjustment: 2x potentiometer (rotary + step)
Power/relay supply indicator and time measure: LED red
Output relay parameters: 1NO/NC - 16 A / 250 V AC1 4000 VA
Number of terminal clamps: 5
Section of connecting cables: from 0,2 to 2,50 mm
Ambient temperature range: from -20 to +60
Operating position: free
Protection degree: IP20 (PN-EN 60529)
Overvoltage category: II
Rated impulse withstand voltage: 2 kV (PN-EN 61000-4-5)
Dimensions (height / width / depth): monomodular (17,5 mm) 90x17,5x66 mm
Reference standards: PN-EN 60730-1

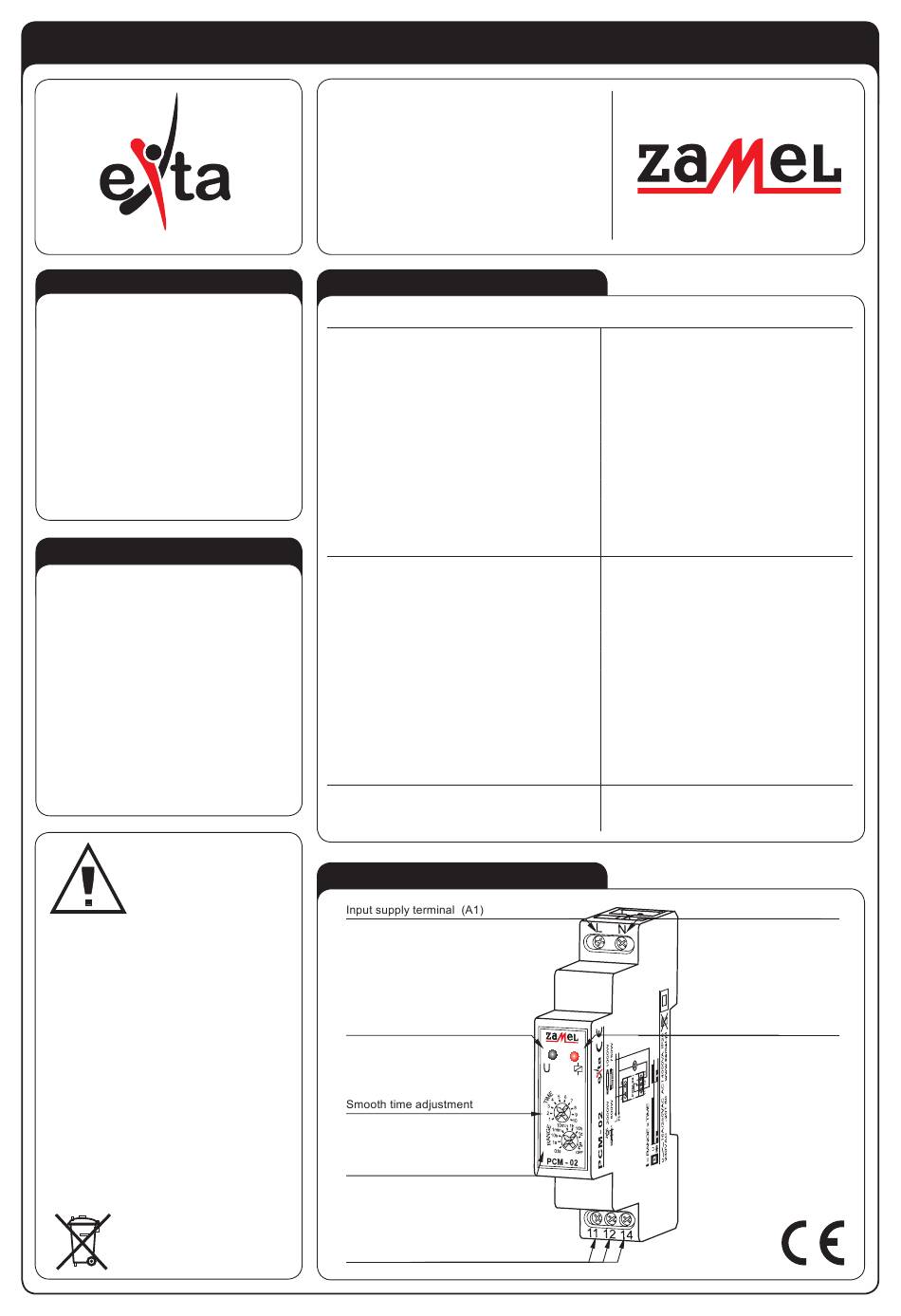

APPEARANCE
Supply voltage control indicator
Time adjustment choice
Output (load) relay terminals
INSTRUCTION MANUAL
PCM-02
Mounting: TH 35 rail (PN-EN 60715)
Protection class: II
Pollution degree: 2
Weight: 0,08 kg
PN-EN 60730-2-7
PN-EN 61000-4-2,3,4,5,6,11
2
C
o
Input supply terminal (A2)
Power/relay supply indicator
