Zamel PCM-04/24V Instruction Manual

TIME RELAY PCM-04/24V
DESCRIPTION
The multifunctional
PCM-04/24V has a time function in au-
tomation and control systems. It is equ-
ipped with 10 independent operating
modes released by power supply vol-
tage or external impulse command (co-
ming from L or N line). It has a wide time
adjustment range and constant switch
on/off function. The mode change is po-
ssible without waiting for the current cyc-
le to be finished.
FEATURES
● 10 operating modes (external release
or from power supply voltage),
● supply voltage control signal - LED
green,
● power/relay supply indicator and time
measure - LED red,
● time measure accuracy,
● wide time adjustment range,
● constant switch on, switch off func-
tion,
● voltage relay output - 1 change over
contact (NO/NC) contact max 16 A
capacity,
● monomodular casing,
● TH 35 DIN rail installation.
The device is designed for
one-phase installation and
must be installed in accor-
dance with standards valid
in a particular country. The
device should be connected
CAUTION
according to the details inc-
luded in this operating manual. Installation,
connection and control should be carried
out by a qualified electrician staff, who act
in accordance with the service manual and
the device functions. Disassembling of the
device is equal with a loss of guarantee
and can cause electric shock. Before in-
stallation make sure the connection cables
are not under voltage. The cruciform head
screwdriver 3,5 mm should be used to instal
the device. Improper transport, storage,
and use of the device influence its wrong
functioning. It is not advisable to instal the
device in the following cases: if any device
part is missing or the device is damaged or
deformed. In case of improper functioning
of the device contact the producer.
The symbol stands for selective
collection of electrical
and electronic devices.
Placing used devices with other
waste is not allowed
Zakład Mechaniki i Elektroniki
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
TECHNICAL PARAMETERS
time relay
Power/relay supply indicator and time measure: LED red

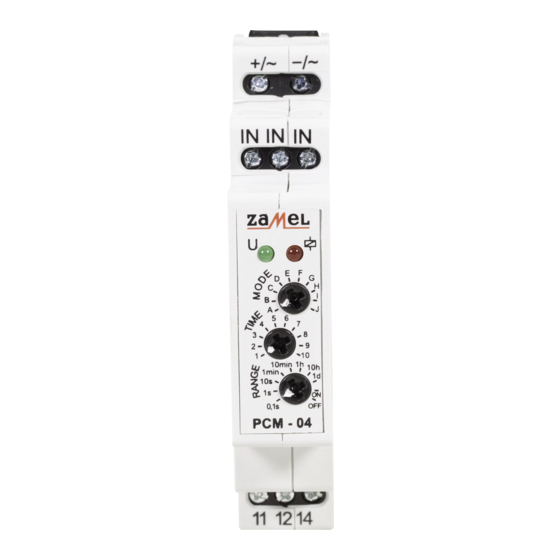

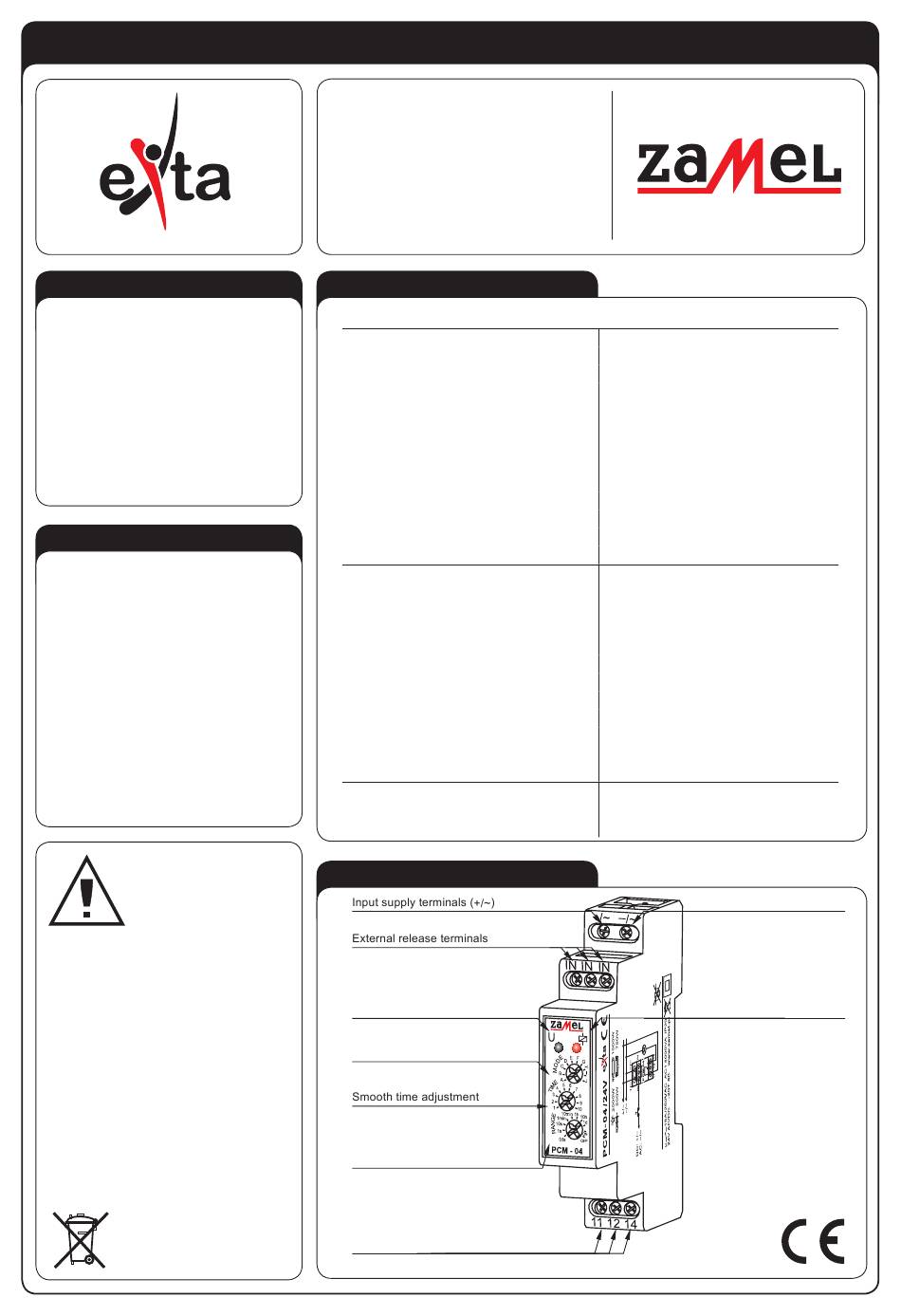

APPEARANCE
(IN, IN, IN)
Supply voltage control indicator
Operating mode choice
Time adjustment
choice
Output (load)
relay terminals (11, 12, 14)
ZAMEL sp.j.
PCM-04/24V
Input (supply) terminals: -/~ , +/~
Input rated voltage: 24 V AC/DC
Input voltage tolerance: from -15 to +10 %
Supply voltage control indicator: LED green
Nominal frequency: 50 / 60 Hz
Rated power consumption: 25 mA
External release terminals: IN, IN, IN (released from L or N)
Release current: 510 μA
Operating modes number: 10
Time adjustment range t: from 0,1s to 10days (step+smooth)
Time measure accuracy: 0,2 %
Output relay parameters: 1NO/NC-16 A/250 V AC1 4000 VA
Number of terminal clamps: 8
Section of connecting cables: from 0,2 to 2,50 mm
Ambient temperature range: from -20 to +60
Operating position: free
Mounting: TH 35 rail (PN-EN 60715)
Protection degree: IP20 (PN-EN 60529)
Protection class: II
Overvoltage category: II
Pollution degree: 2
Rated impulse withstand voltage: 2 kV (PN-EN 61000-4-5)
Dimensions (height / width / depth): monomodular (17,5 mm) 90x17,5x66 mm
Weight: 0,08 kg
Reference standards: PN-EN 60730-1
INSTRUCTION MANUAL
2
C
o
PN-EN 60730-2-7
PN-EN 61000-4-2,3,4,5,6,11
Input supply terminals ( -/~ )
Power/relay supply indicator
(time measure signal)
VER. 002_13.01.2010
